Bruker Optik GmbH IFS 125M User Manual
Installation 3

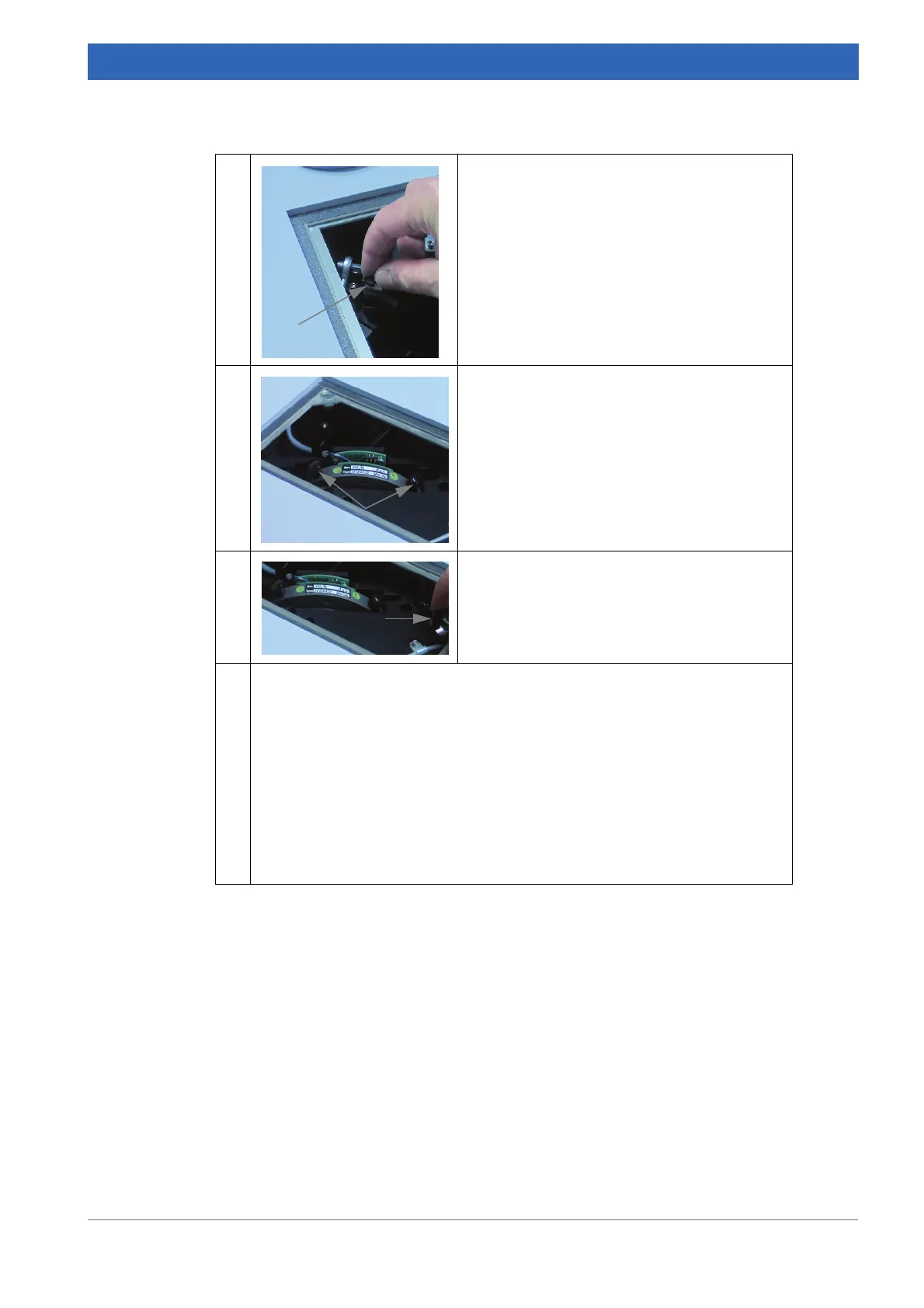

3 Open the beamsplitter locking door by moving
the release lever.
4 • Hold the beamsplitter - with two hands - on
the knobs and carefully insert the beamsplit
-
ter straight downwards into the fixture, with
the electrical contacts facing to the scanner
side and without catching an edge.
• The two guiding pins have to engage into
the slots located on the block.
• Push down the beamsplitter completely, until
you feel resistance.
5 Close the beamsplitter locking door by moving
the release lever.
6 The spectrometer beeps when it detects the new beamsplitter and automati-
cally starts scanning.
• Put on the lid again.
• Use the cross-head screwdriver. Push the screws downwards and rotate
them clockwise.
• Check the laser signals as described in chapter 6.2.
• Check whether a signal is detected, and the optics works properly. More
details are described in chapter
5.6.
• If you use VIS and UV beamsplitters, the interferometer has to be realigned
by the OPUS Auto Align function (see chapter
5.8.2).
Table 3.9: Inserting beamsplitter
