5.5 Inserting accessory into sample compartment
A 10 cm gas cell can be inserted into the sample compartment for calibration purposes.
5.5.1 Inserting procedure

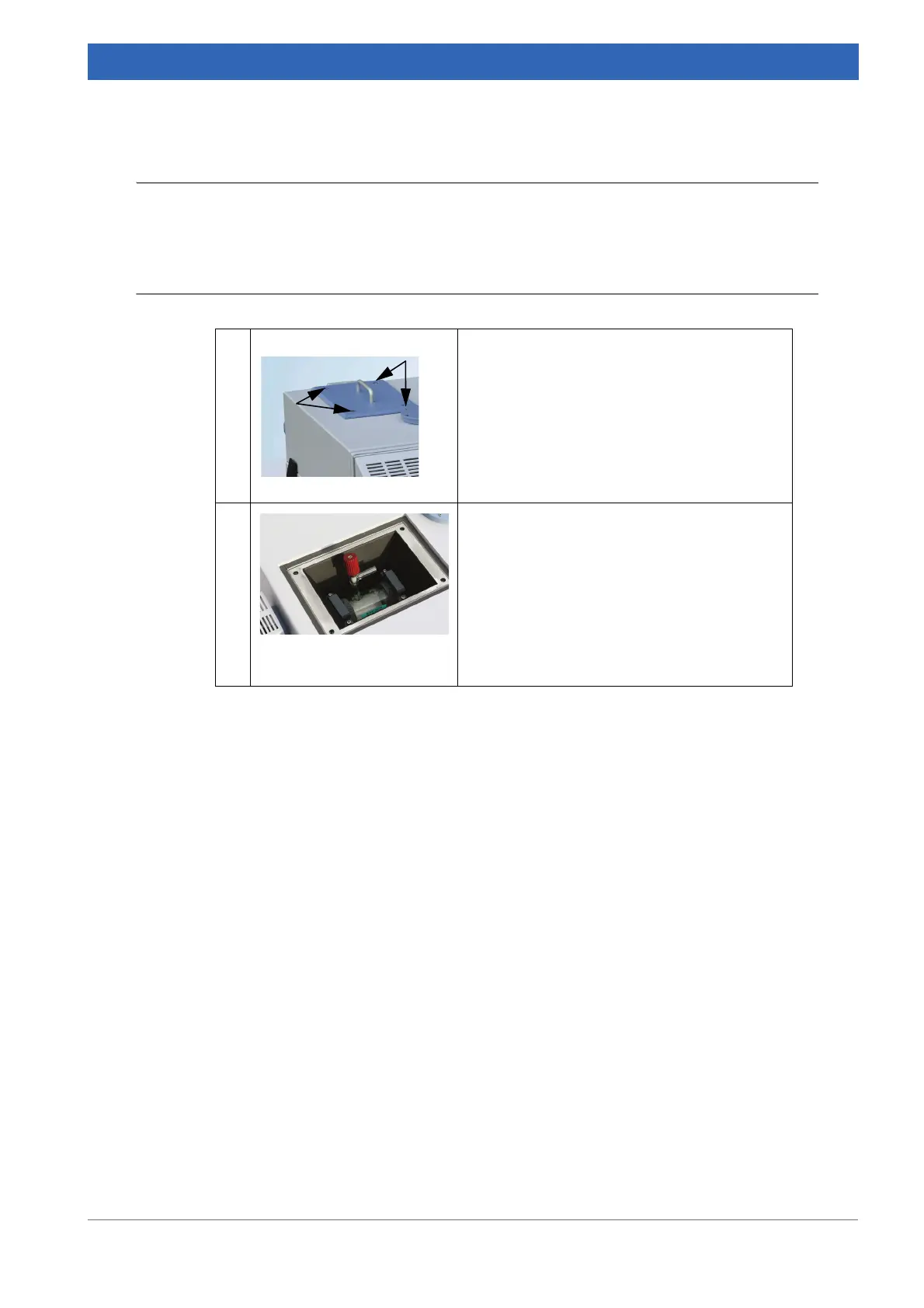

1 • Use a cross-head screwdriver (size: PH2)
and rotate the 4 screws of the top lid coun
-
terclockwise.
➣ You have to rotate over the snap-in resis-
tance. Then, the screw is pushed
upwards, and you can loosen it.
• Carefully lift off the sample compartment
cover.
2 • Insert the accessory into the sample com-
partment.
•
• Turn the 2 retaining clips by 90° to fix the
cell.
• Put on the sample compartment lid again.
• Use the cross-head screwdriver. Push the
screws downwards and rotate them clock
-
wise.
Table 5.3: Inserting accessory into the sample compartment
