Bruker IFS 125M - Spectrometer Rear Side

32
IFS 125M User Manual Bruker Optik GmbH
Description 4
4.2 Spectrometer rear side
Definition
A Detector hoods
B Direct input port for collimated beam
C Beamsplitter lid
D
Viewing port
a
a. Can be used to observe the image of the external source, e.g.
the sun, on the aperture.
E Sample compartment lid
F Source (for calibration purpose)
G Standard input port for collimated beam
Table 4.2: Spectrometer rear side

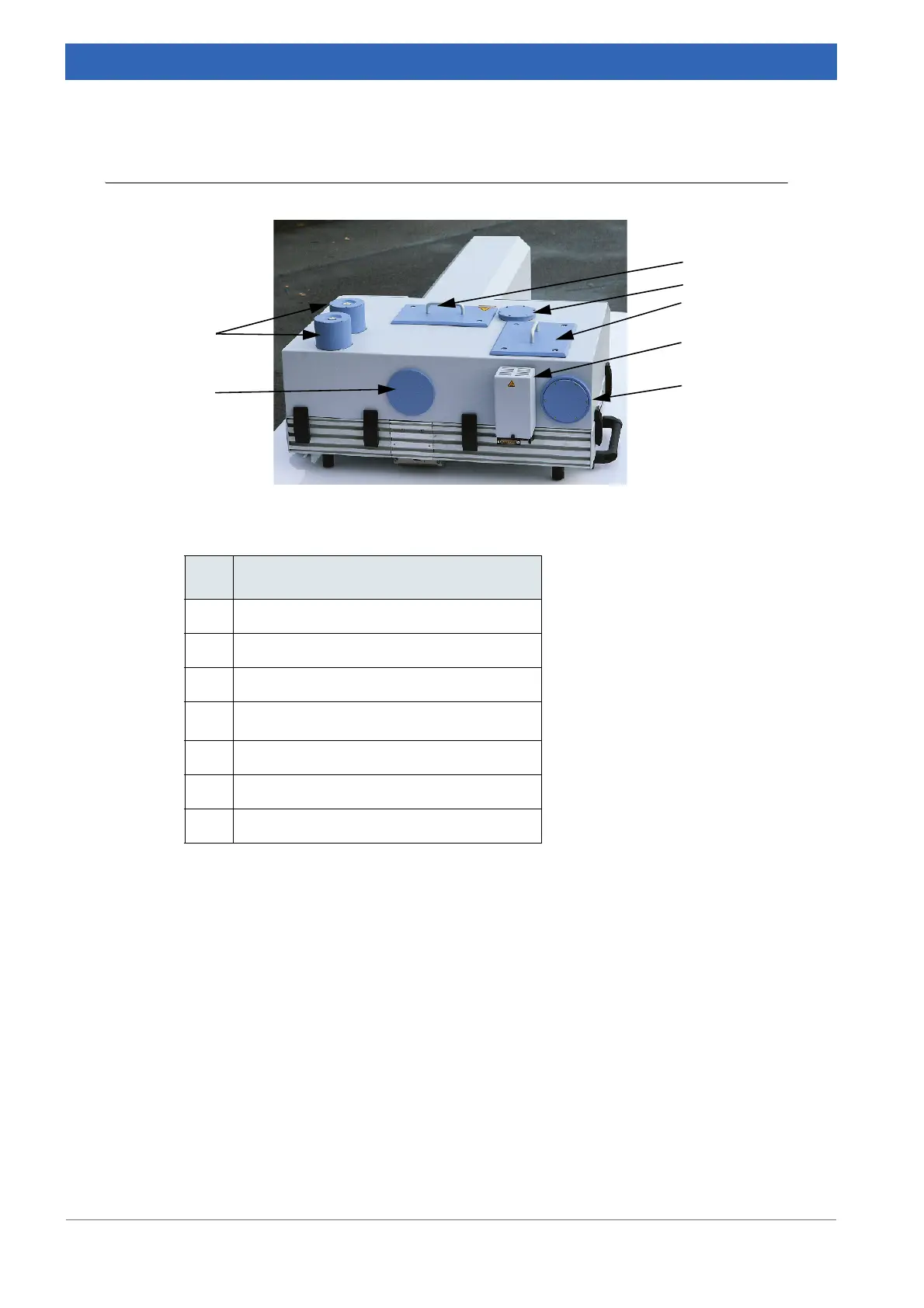

Figure 4.2: Spectrometer rear side
A
B
C
D
E
F
G
