193
Bruker Optik GmbH IFS 125M User Manual
Connection Ports 10

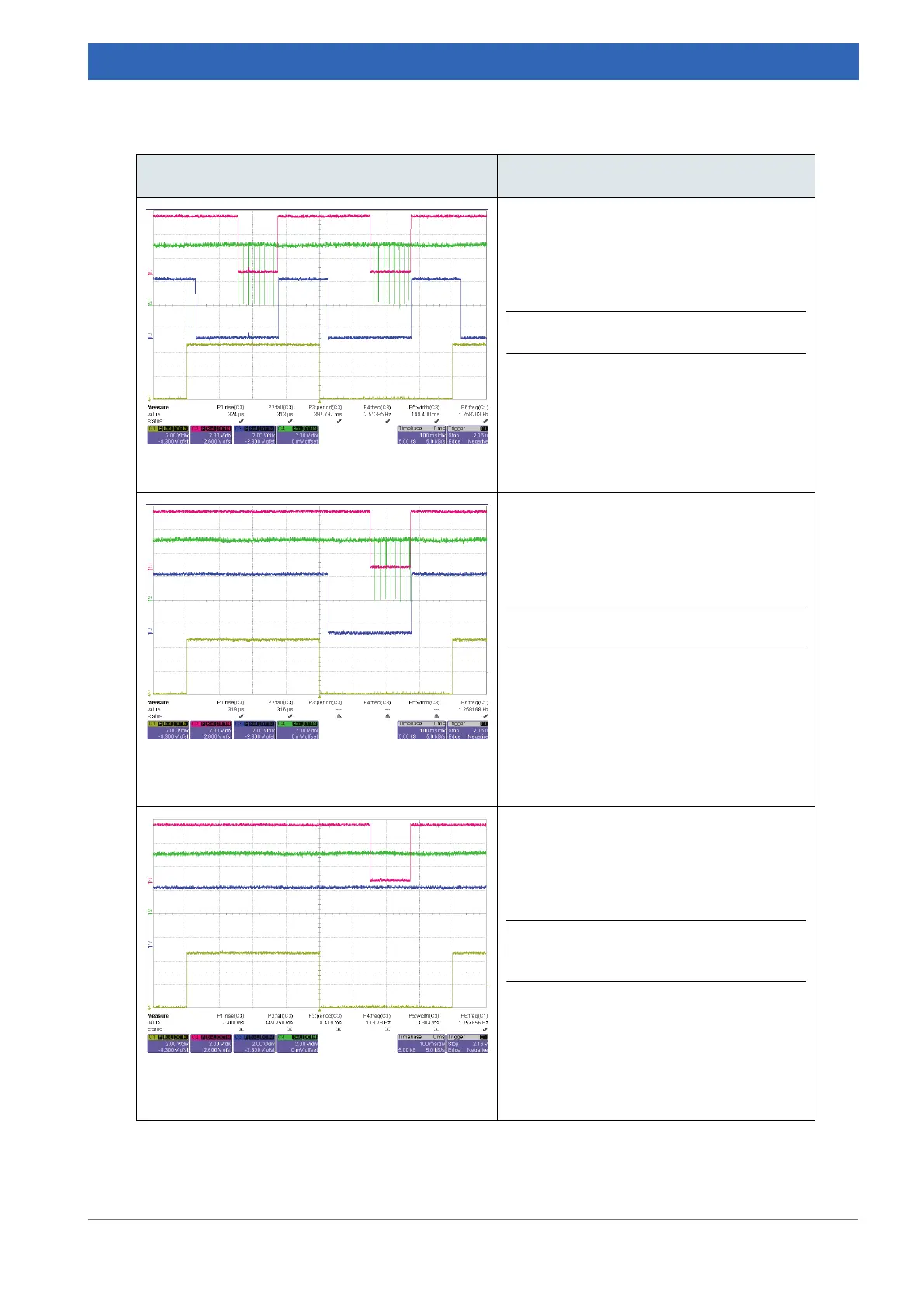

Data acquisition in forward-backward mode
• Magenta: TKDAM (Take data)
• Green: XAOUT (Sampling points)
• Blue: UDQENA (Data acquisition enable)
• Olive: FWD (Forward)
i All signals are active low.
Data acquisition in forward mode (single-sided or
double- sided)
• Magenta: TKDAM (Take data)
• Green: XAOUT (Sampling points)
• Blue: UDQENA (Data acquisition enable)
• Olive: FWD (Forward)
i All signals are active low.
Idle mode (scanner is moving, but no data acqui-
sition takes place)
• Magenta: TKDAM (Take data)
• Green: XAOUT (Sampling points)
• Blue: UDQENA (Data acquisition enable)
• Olive: FWD (Forward)
i The UDQENA signal is high (inactive) all
the time.
Image Signal assignment
Table 10.5: UIO signals
