Bruker Optik GmbH IFS 125M User Manual
Installation 3
Definition
A Light switch board port (LSB)
B Solar tracker port (not used)
C CAN bus connector (all equivalent)
D Outer motor port (OMOT)
E Digital detector connection port (DDC)
Table 3.4: Connection port definition of electronics boxes

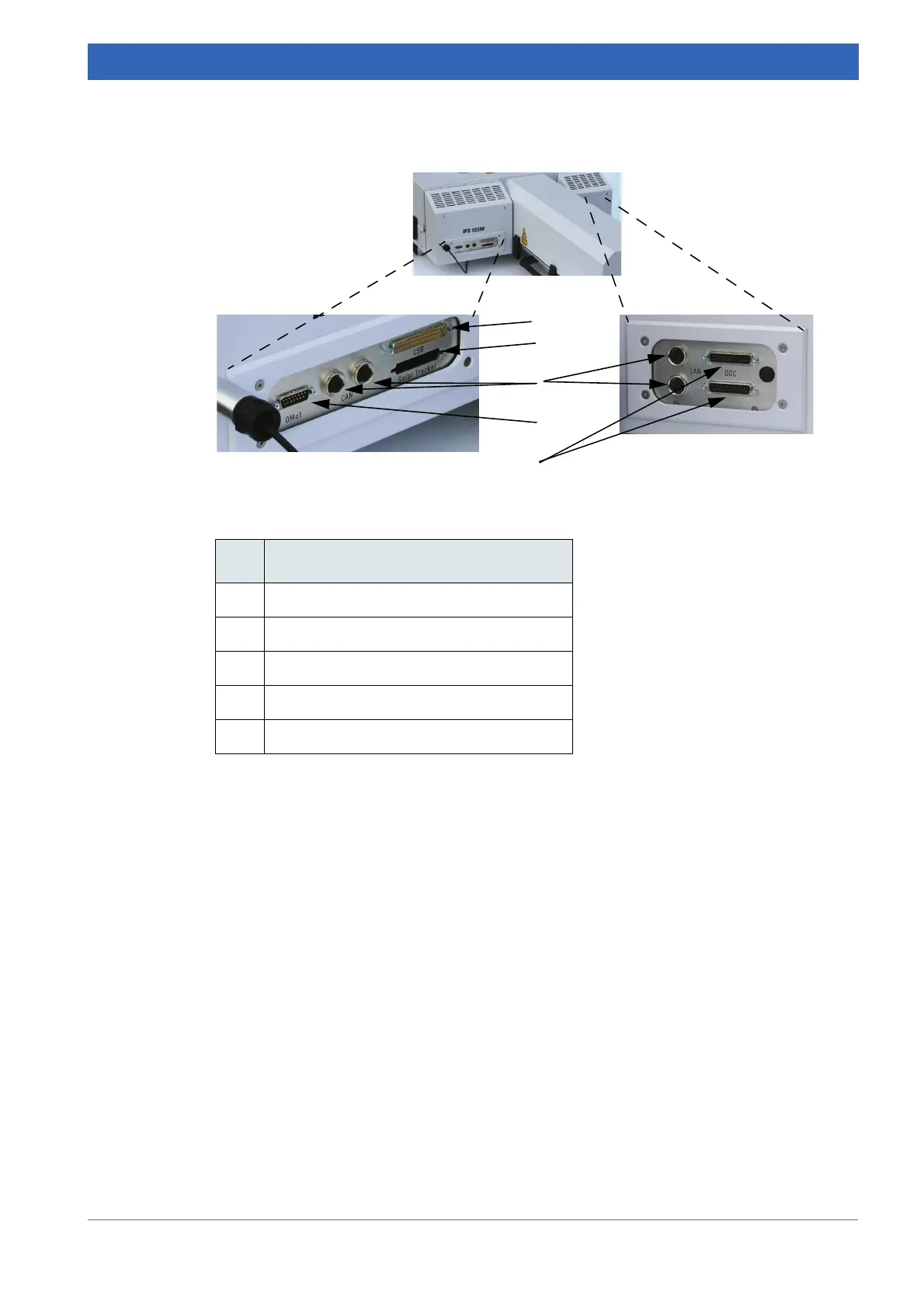

Figure 3.2: Connection ports on left and right electronics box
A
B
C
D
E
