68 Sync Scorer Components
6. Remove the cover from the replacement Peripheral Controller to gain access to the Distribution
Board.
NOTE: The jumpers and switches on Distribution board in the Peripheral Controller must be
set correctly to ensure the controller works properly for the lane pair. Verify the settings using
the original board and the information below as a guide.
7. Verify the switches and jumpers on the Distribution Board are set as follows. Refer to the gure
titled Distribution Board 7 Jumpers and Settings.

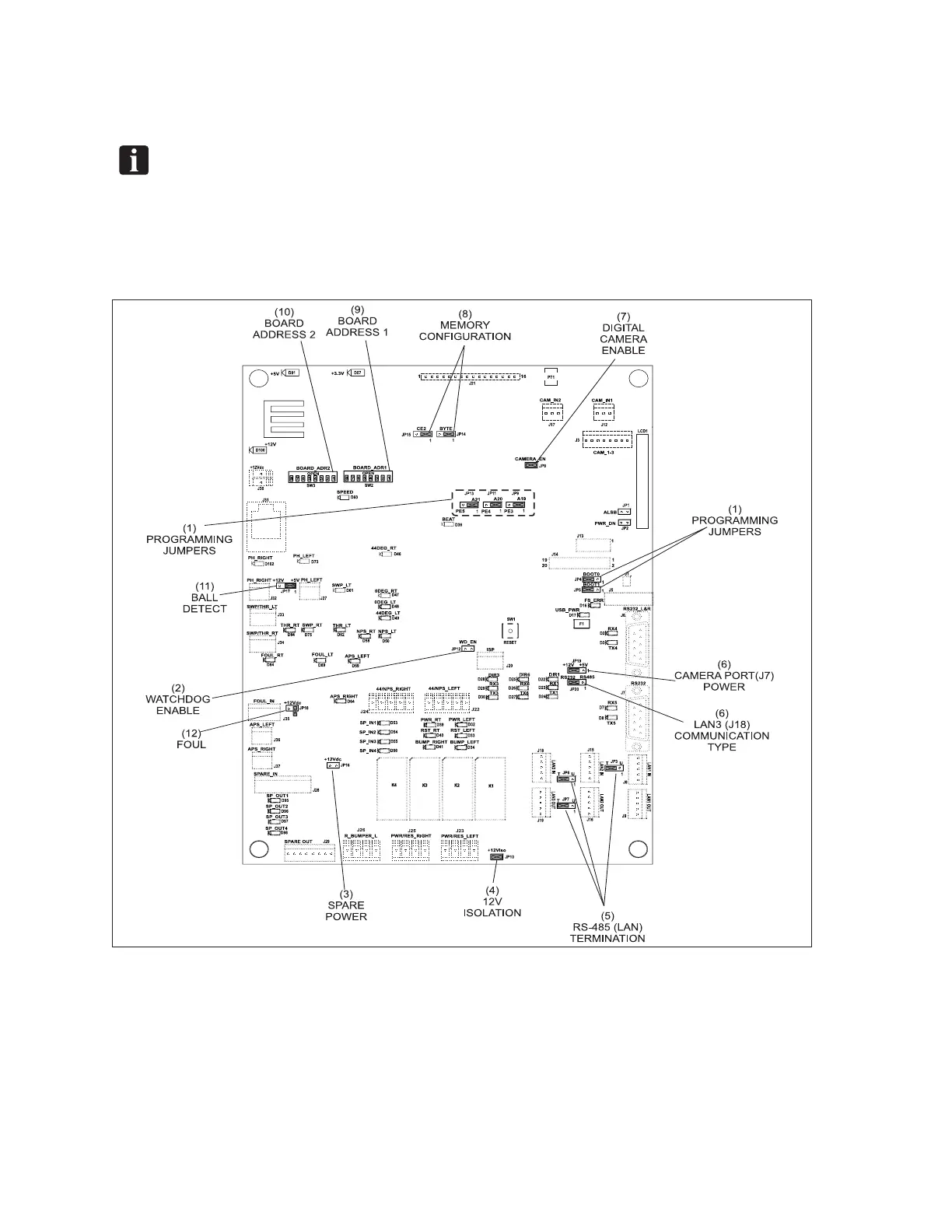

Distribution Board 7 Jumpers and Settings
(1) Programming Jumpers (JP4,JP5,JP9,JP11,JP13)
JP4,JP5 - Install jumper at pins 2-3
JP9,JP11,JP13 - Install jumper at pins 1-2
(2) Watchdog Enable (JP12) - Remove jumper
(3) Spare Power (JP16) - Remove Jumper
