Sync Scorer Components 69
(4) +12V Isolation (JP10) - Install Jumper
(5) RS-485 (LAN) Termination - (JP3,JP6,JP7) - Install jumpers at pins 2-3 (T)
(6) Camera Port Power (JP19) - Selects voltage level used for the cameras. Install jumpers at
pins 2-3 (+12V).
(7) Digital Camera Enable - (JP8) - Install Jumper
(8) MemoryConguration - (JP14,JP15) - Install jumper at pins 1-2
(9) Board Address 1 - Refer to gure titled Distribution Board Lane Assignment (Board
Address 1).

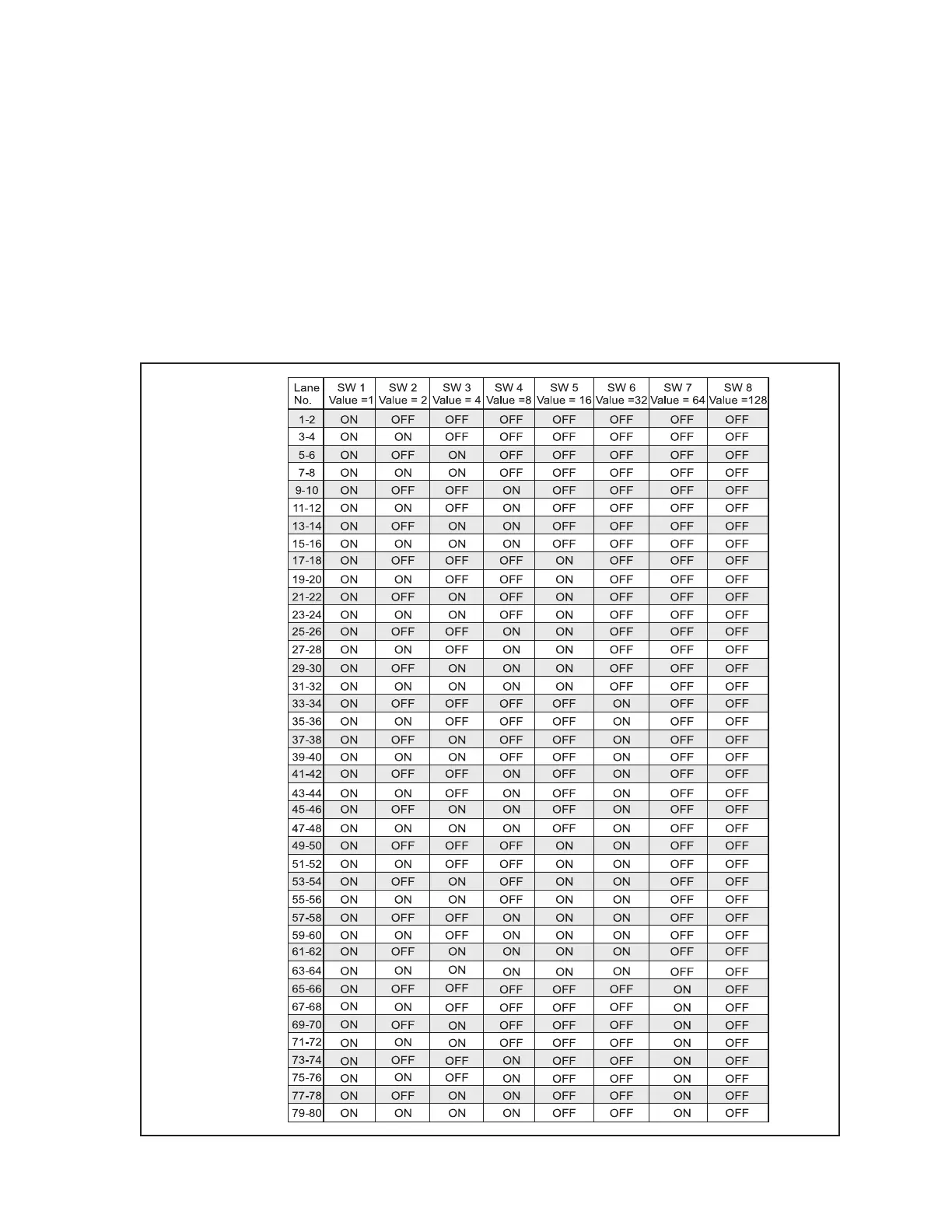

Distribution Board Lane Assignment (Board Address 1)
