Brunswick Sync - Page 112

80 Sync Scorer Components
(2)
200  (60m) RG-6
COAXIAL CABLE
(3)
CONTROL
DESK
(7)
CENTER
OF
HOUSE
(11)
CO-AXIAL
CABLES
(1)
TV DISTRIBUTION
CENTER
(4)
4-WAY
SPLITTER
(7)
SEGMENT A
LANES (1-24)
(5)
TAP
(5)
TAP
(5)
TAP
(5)
TAP
(6)
SPLITTER
(6)
SPLITTER
(9)
SEGMENT B
LANES (25-48)
(5)
TAP
(5)
TAP
(5)
TAP
(5)
TAP
(6)
SPLITTER
(6)
SPLITTER
(8)
TO ADDITIONAL
SEGMENT A
MONITORS
(10)
TO ADDITIONAL
SEGMENT B
MONITORS
(12)
TO SEGMENT C
(LANES 49-72)
(13)
TO SEGMENT D
(LANES 73-96)

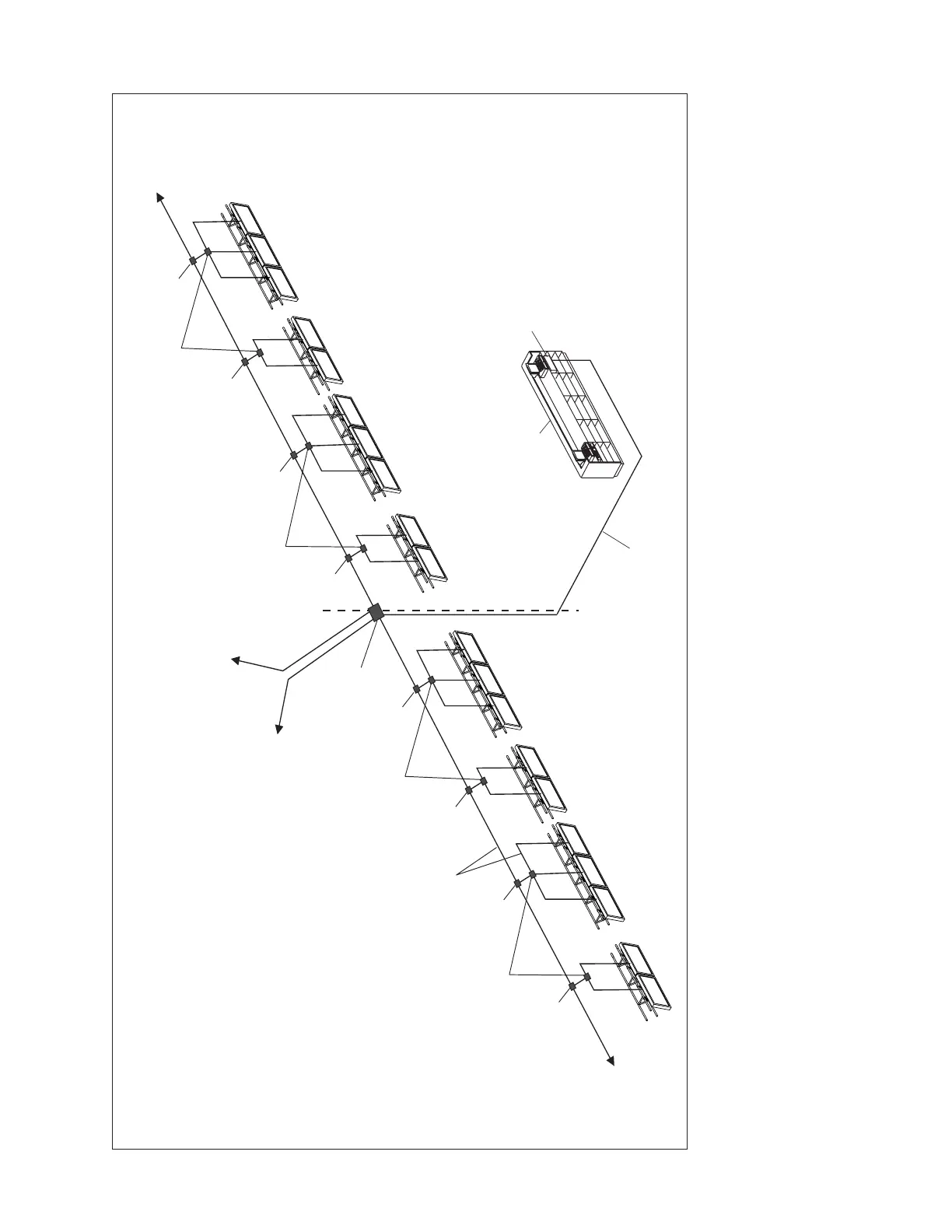

TV Video Cabling (1) TV DISTRIBUTION CENTER (2) 200’ (60M) RG-6 COAXIAL CABLE (3) CONTROL DESK (4) 4-WAY SPLITTER (5) TAP (6) SPLITTER (7) CENTER OF HOUSE (8) TO ADDITIONAL SEGMENT A MONITORS (9) SEGMENT B (LANES 25-48) (10) TO ADDITIONAL SEGMENT B (11) COAXIAL CABLES (12) TO SEGMENT C (LANES 49-72) MONITORS (13) TO SEGMENT D (LANES 73-96)
