86 Sync Scorer Components

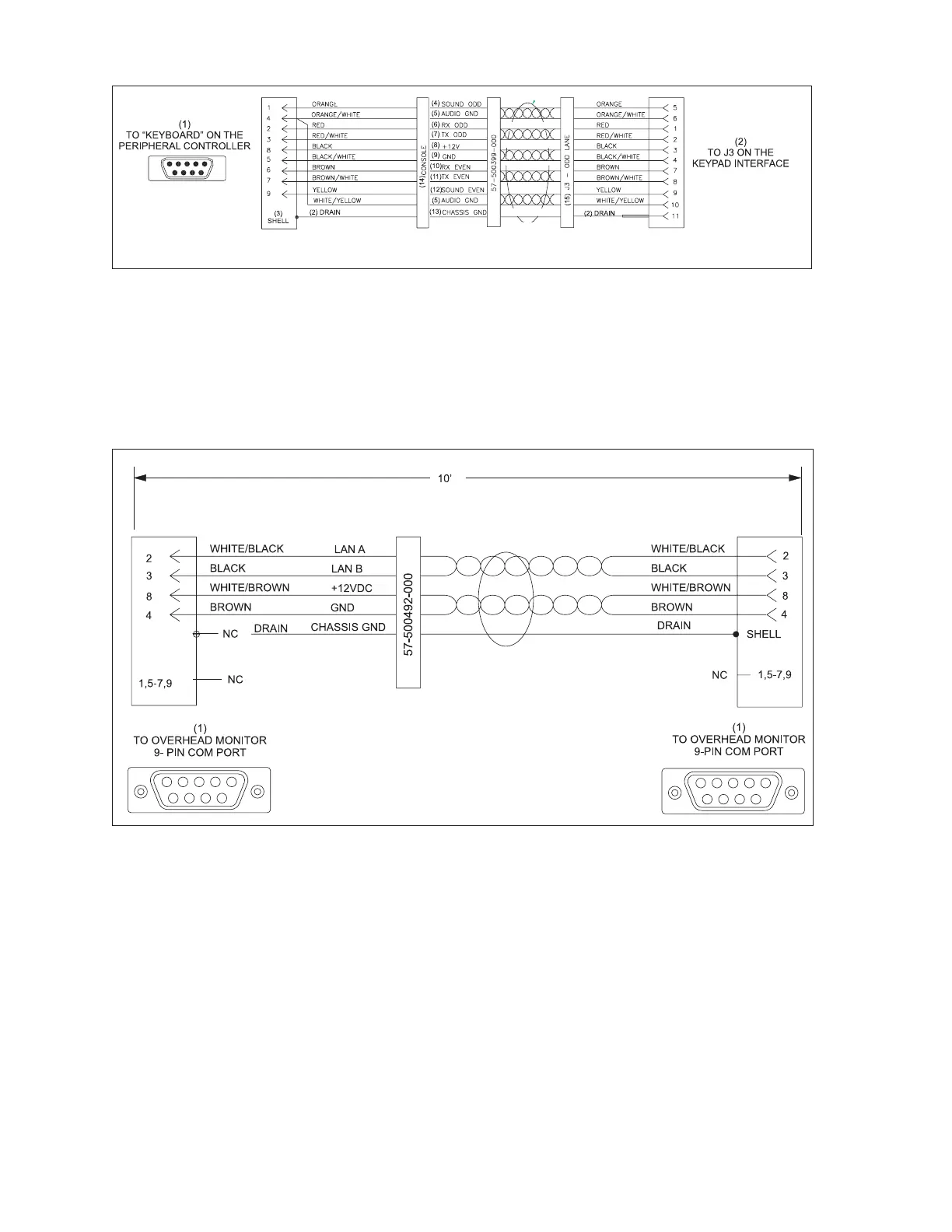

Peripheral Controller to Vector Keypad (Part No. 57-500399-000)
(1) TO “KEYBOARD” ON THE (2) DRAIN (3) SHELL
PERIPHERAL CONTROLLER
(4) SOUND ODD (5) AUDIO GROUND (6) RX ODD
(7) TX ODD (8) +12 VOLTS (9) GROUND
(10) RX EVEN (11) TX EVEN (12) SOUND EVEN
(13) CHASSIS GROUND (14) CONSOLE (15) J3-ODD LANE
(16) TO J3 ON THE KEYPAD INTERFACE
Overhead to Overhead Serial Control Cable (Part No. 57-500492-000)
(1) TO OVERHEAD 9-PIN COM PORT
