Sync Scorer Components 85

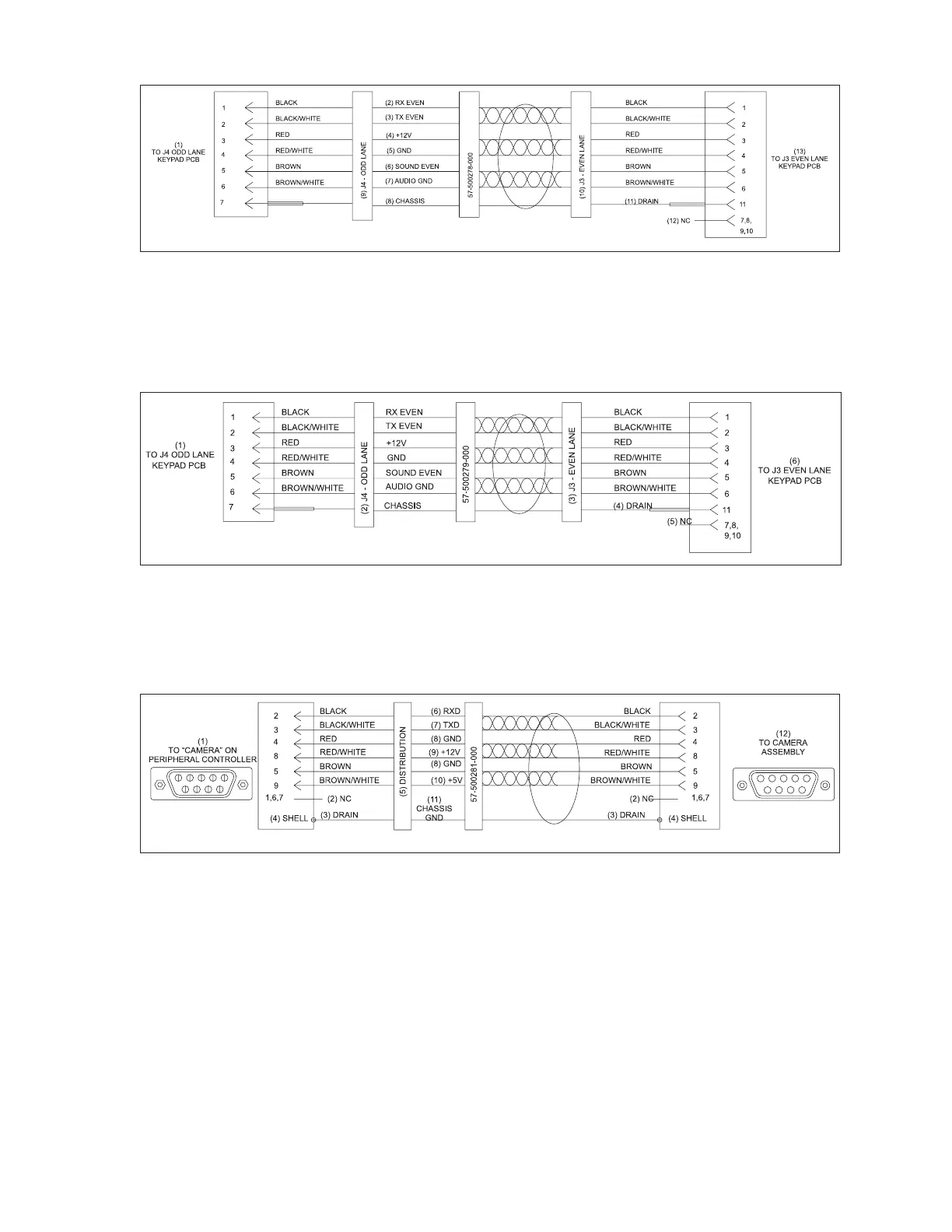

LAN Cable Odd to Even Lane- Vector Keypad Pedestal Mount (Part No. 57-500278-000)
(1) TO J4 ODD LANE KEYPAD PCB (2) RX EVEN (3) TX EVEN
(4) + 12 VOLTS (5) GROUND (6) SOUND EVEN
(7) AUDIO GROUND (8) CHASSIS (9) J4 ODD LANE
(10) J3 EVEN LANE (11) DRAIN (12) NO CONNECTION
(13) TO J3 EVEN LANE KEYPAD PCB
LAN Cable Odd to Even Lane Cable - Vector Keypad Table Mount (Part No. 57-500279-000)
(1) TO J4 ODD LANE KEYPAD PCB (2) J4 - ODD LANE (3) J3 EVEN LANE
(4) DRAIN (5) NO CONNECTION (6) TO J3 EVEN LANE KEYPAD PCB
Camera Data Cable (Part No. 57-500281-000)
(1) TO “CAMERA” ON (2) NO CONNECTION (3) DRAIN
PERIPHERAL CONTROLLER
(4) SHELL (5) DISTRIBUTION (6) RXD
(7) TXD (8) GROUND (9) + 12 VOLTS
(10) + 5 VOLTS (11) CHASSIS GROUND (12) TO CAMERA ASSEMBLY
