Brunswick Sync - Page 116

84 Sync Scorer Components

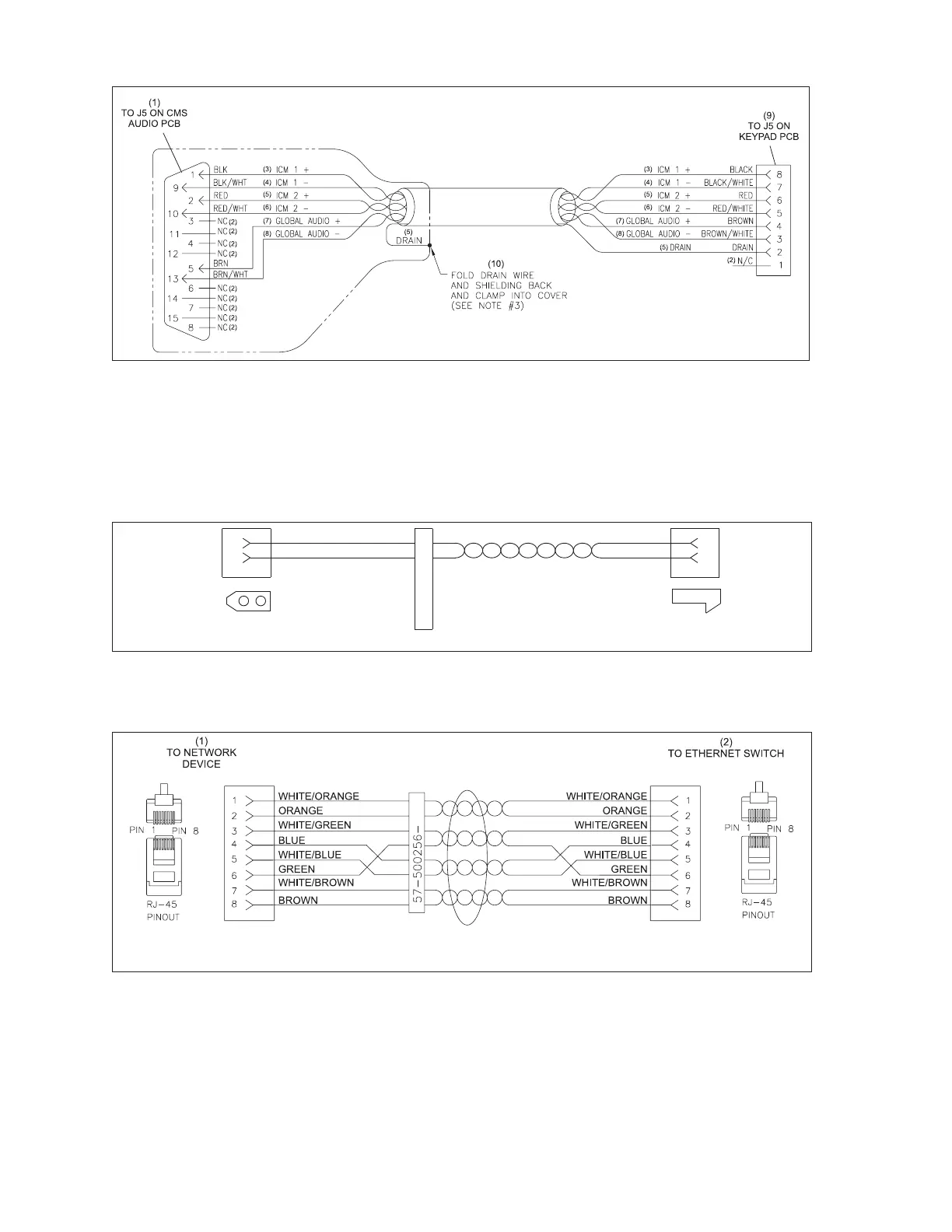

Intercom Cable Control Desk to First Scorer Audio - Vector Keypads (Part No. 57-301125-000)
(1) TO J5 ON CMS AUDIO PCB (2) NO CONNECTION (3) INTERCOM 1 +
(4) INTERCOM 1 - (5) INTERCOM 2+ (6) INTERCOM 2-
(7) GLOBAL AUDIO + (8) GLOBAL AUDIO - (9) TO J5 ON KEYPAD PCB
(10) FOLD DRAIN WIRE AND SHIELDING BACK
AND CLAMP INTO COVER (SEE NOTE 3)
(1)
TO HDLC
POWER SUPPLY
(2)
TO J3
HDLC
INTERFACE
57-500062-000
2
1 1
2
WHT
BLK
WHT
BLK
24VAC
24VAC
Pinsetter HDLC Power Cable (Part No. 57-500062-000)
(1) TO HDLC POWER SUPPLY (2) TO J3 HDLC INTERFACE
Ethernet Cable / CAT5e Cable (Part No. 57-500256-xxx)
(1) TO NETWORK DEVICE (2) TO ETHERNET SWITCH
