Sync Scorer Components 83

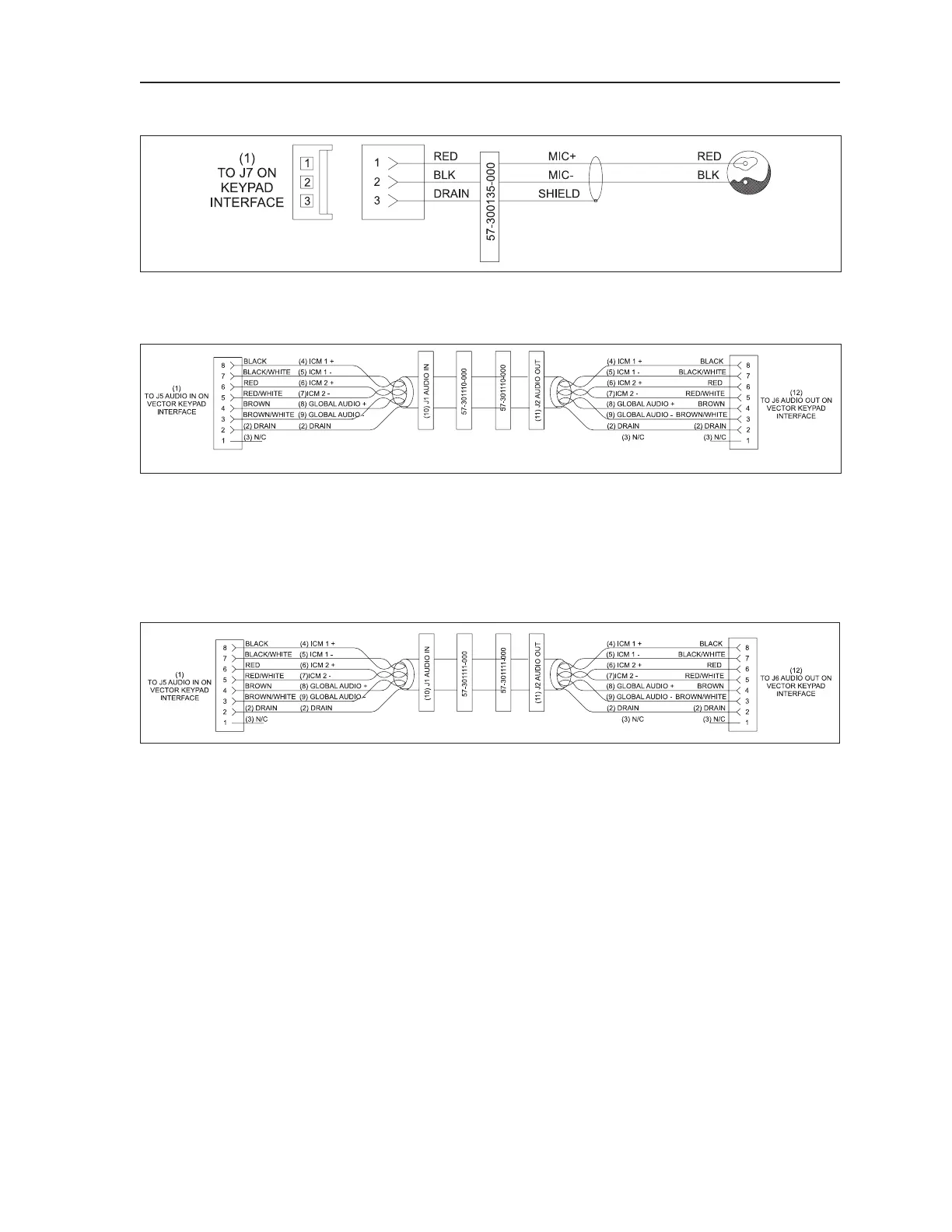

CABLE DIAGRAMS
Microphone Cable - Vector Keypads (Part No. 57-300135-000)
(1) TO J7 ON KEYPAD INTERFACE
Intercom Audio Lane to Lane Cable - Vector Keypads (Part No. 57-301110-000)
(1) TO J5 AUDIO IN ON VECTOR (2) DRAIN (3) NO CONNECTION
KEYPAD INTERFACE
(4) ICM 1 + (5) ICM 1 - (6) ICM 2 +
(7) ICM 2 - (8) GLOBAL AUDIO + (9) GLOBAL AUDIO-
(10) J1 AUDIO IN (11) J2 AUDIO OUT (12) TO J6 AUDIO OUT ON
VECTOR KEYPAD INTERFACE
Intercom Audio Odd Lane to Even Lane Cable - Vector Keypads Pedestal Mount (Part No. 57-301111-000)
(1) TO J5 AUDIO IN ON VECTOR (2) DRAIN (3) NO CONNECTION
KEYPAD INTERFACE
(4) ICM 1 + (5) ICM 1 - (6) ICM 2 +
(7) ICM 2 - (8) GLOBAL AUDIO + (9) GLOBAL AUDIO-
(10) J1 AUDIO IN (11) J2 AUDIO OUT (12) TO J5 AUDIO OUT ON VECTOR
KEYPAD INTERFACE
