Brunswick Sync - Page 172

46
Sync Camera Assembly

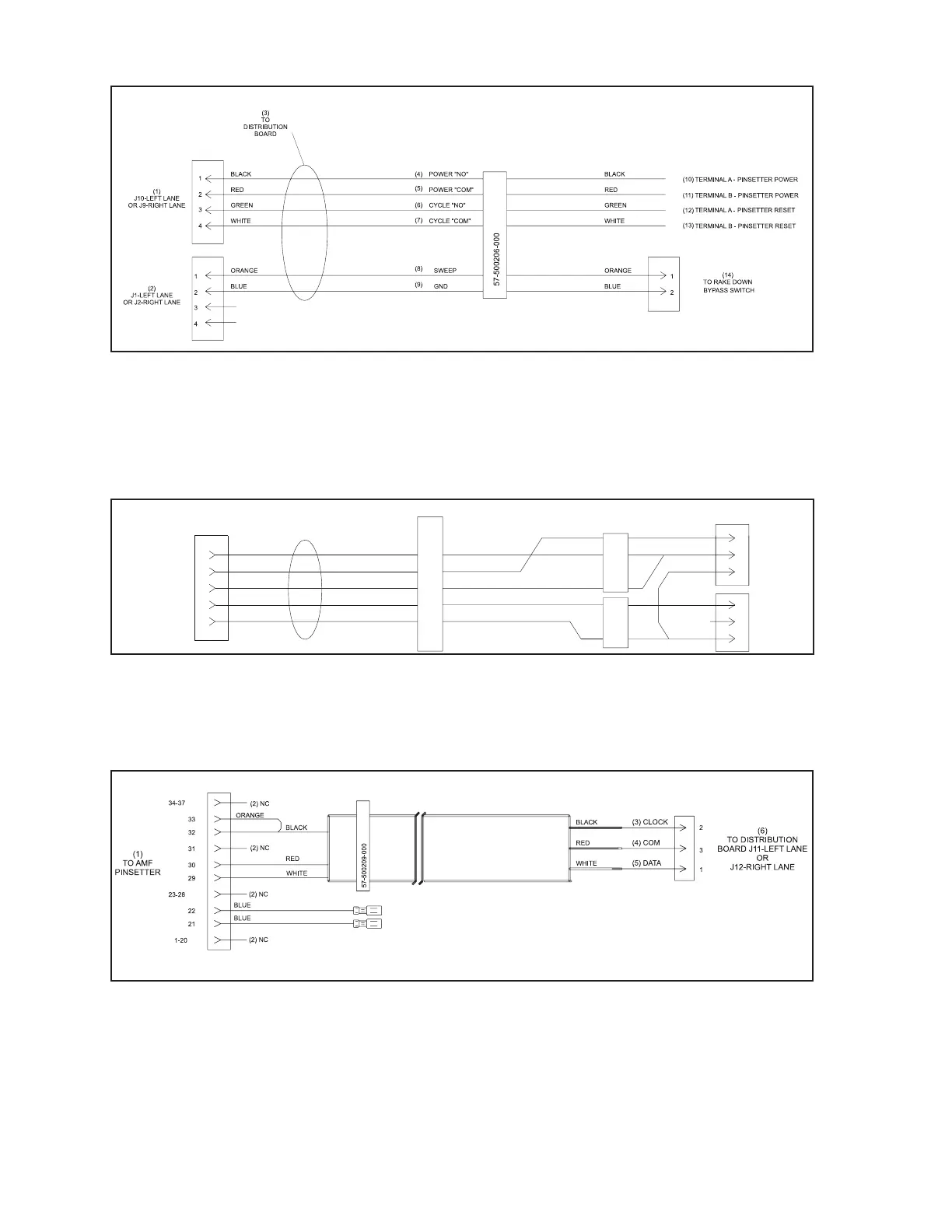

A, A-2 Reset/Power/Sweep Cable (Part No. 57-500206-000)
(1) J10 LEFT LANE OR J9 RIGHT LANE (2) J1-LEFT LANE OR J2-RIGHT LANE (3) TO DISTRIBUTION BOARD
(4) POWER ”NO” (5) POWER “COM” (6) CYCLE “NO”
(7) CYCLE “COM” (8) SWEEP (9) GROUND
(10) TERMINAL A - PINSETTER POWER (11) TERMINAL B - PINSETTER POWER (12) TERMINAL A - PINSETTER
(13) TERMINAL B - PINSETTER RESET RESET
1
2
3
4
57-500207-000
5
3
1
2
(9)
LEFT
2
3
1
(8)
RIGHT
RED
GREEN
BROWN
WHITE
RED
GREEN
BLACK
BROWN
WHITE
BLACK
BLACK
(10)
TO FOUL
UNIT
(1)
TO
BOARD-J3
DISTRIBUTION
(5) RIGHT FOUL -
(6) GND
(4) RIGHT FOUL +
(3) LEFT FOUL -
(2) LEFT FOUL + (7) OR +12V DC
Foul Cable (Part No. 57-500207-000)
(1) TO DISTRIBUTION BOARD-J3 (2) LEFT FOUL + (3) LEFT FOUL -
(4) RIGHT FOUL + (5) RIGHT FOUL- (6) GROUND
(7) OR +12VDC (8) RIGHT (9) LEFT
(10) TO FOUL UNIT
AMF 8270MP Short Cycle Cable (Part No. 57-500209-000)
(1) TO AMF PINSETTER (2) NO CONNECTION (3) CLOCK
(4) COM (5) DATA (6) TO DISTRIBUTION BOARD
J11-LEFT LANE OR J12-RIGHT
LANE
