Sync Scorer Components 15
The function of the jumpers on the Distribution Board 7 are:
(1) Programming Jumpers - (JP4,JP5,JP9,JP11,JP13) For factory use only
JP4,JP5 - Install jumper at pins 2-3 (Gnd) (Default)
JP9,JP11,JP13 - Install jumper at pins 1-2 (Default)
(2) Ball Detect - (JP17) Jumper used to congure the Distribution PCB to power the ball detectors
used in installations equipped with pin camera with 5VDC or 12VDC. This setting is only
impacts installations that use cameras for scoring (Centers without GS-Series pinsetters and
StringPin pinsetters). For square type ball detectors, set the jumper to 5VDC. For the round ball
detectors, set the jumper to 12VDC.

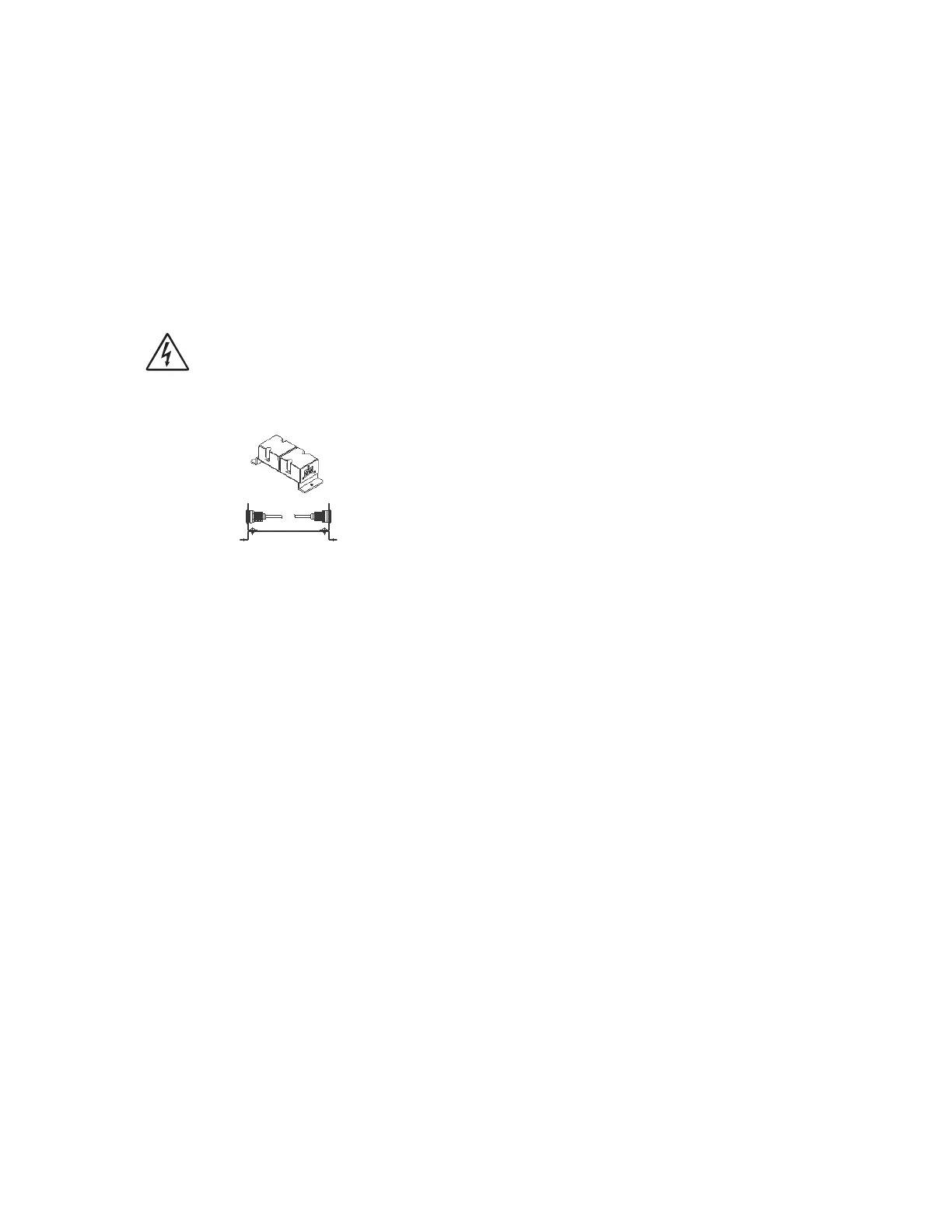

CAUTION! The ball detect jumper on the Distribution board MUST be set to
the proper voltage. Failure to do so can cause permanent damage to the ball
detector.
Square Ball Detector - Install jumper at pins 1-2 (5V)
Round Ball Detector - Install jumper at pins 2-3 (12V)
(3) Watchdog Enable - (JP12) For factory use only.
JP12 - Remove jumper (Default)
(4) Foul - (JP18) Jumper used to congure the distribution so that is can properly handle the
foul input signal. When using Brunswick foul units or foul units that use a relay type (switch)
output, install a jumper to short the pins. If using a foul unit that supplies +12VDC as an output
(AMF) remove the jumper.
Brunswick Foul Unit - Install jumper (Default)
AMF Foul Unit - Remove Jumper
(5) Spare Power - (JP16) Reserved for future use.
JP16 - Remove Jumper (Default)
(6) +12V Isolation - (JP10) Factory use only.
JP10 - Install Jumper (Default)
(7) RS-485 (LAN) Termination - (JP3,JP6,JP7) Jumpers used to terminate the RS-485
communication.
JP3 - GS pinsetter communication. Install jumper at pins 2-3 (Terminate) (Default)
JP6 - Brunswick automated bumpers. Install jumper at pins 2-3 (Terminate) (Default)
JP7 - Spare. Install jumper at pins 2-3 (Terminate) (Default)
