FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
3
INSTALLATION
ORIGINAL INSTRUCTIONS 105
3.8.9 Ejection mode
The ejection settings enable the manual or automatic removal of contaminated product.
Select the ejection mode most suited to the application and programme the parameters involved:
3.8.9.1 Transport stop with manual reset (EM=B)
EM Typical product Ejector Type Ejection Notes
B
Large/heavy product, bulk
material.
Low throughput.
Transport stop
Contaminated product to
be removed manually
-
Operation with halting of the production line, manual elimination of the contaminated material and
manual reset by the operator.
Programming menu
Remote
parameter
Description Setting
Ejection > ejection mode
EM
Halting of the production line and manual
elimination of the contaminated material
B
Ejection > ejector
ED
Distance of the contaminated pack stop area
from the centre of the probe
0 - 6000 mm

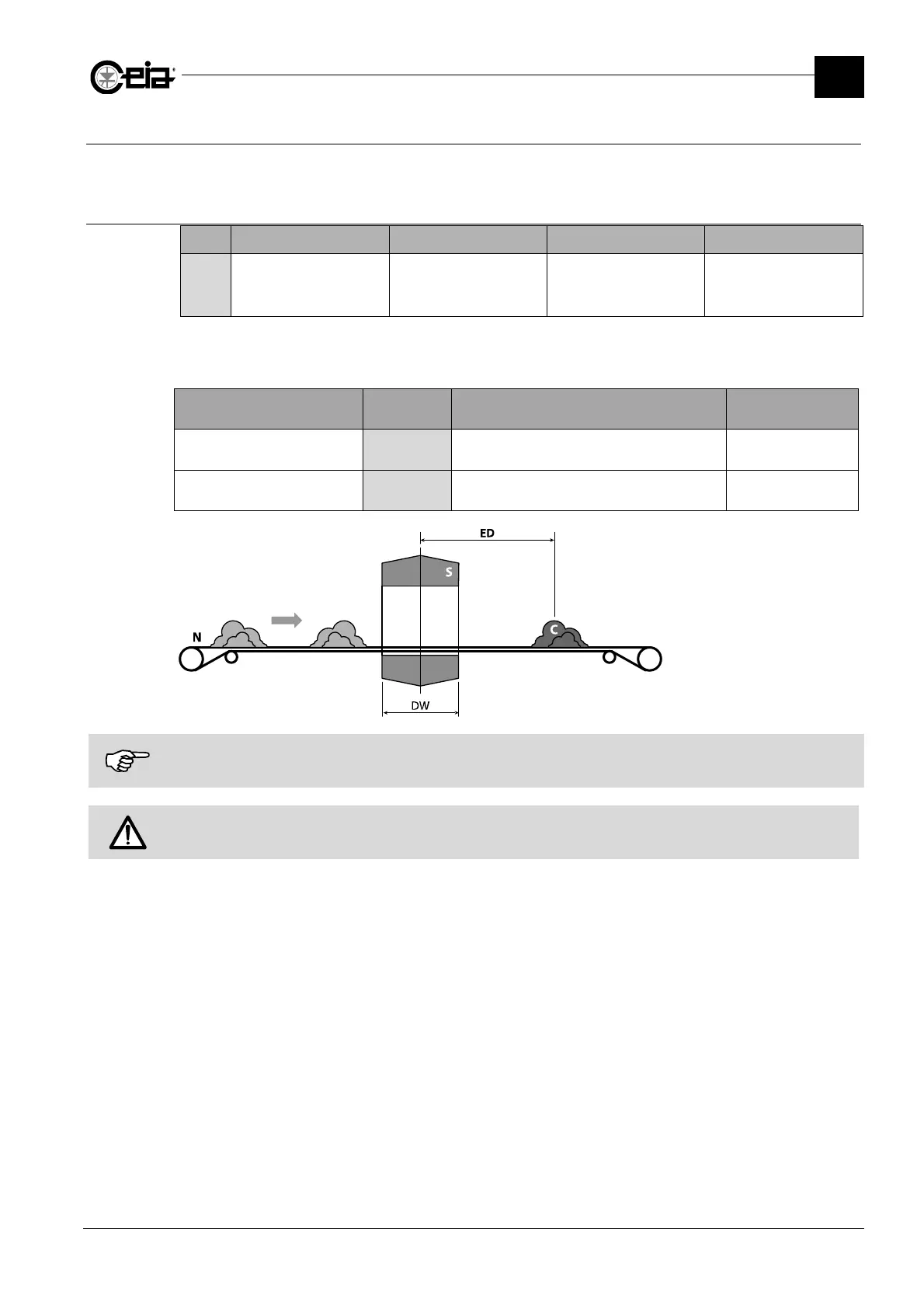

S: Metal Detector probe
N: Conveyor belt
C: Contaminated pack
DW: Detector width
ED: Ejector distance
The Metal Detector does not check if there are any other fragments in the material immediately following. This means
that you must remove all the material between the probe entrance and the removal area. To minimize waste of
material it is advisable to select a low setting for the ED parameter.
After an alarm, if the conveyor belt is stopped, pressing STOP or one of the production line emergency buttons before
the contaminated pack has reached the predefined stop position means the Metal Detector will remain in alarm status
and cannot be reset until the belt is restarted, allowing the contaminated pack to reach the predefined stop position.
