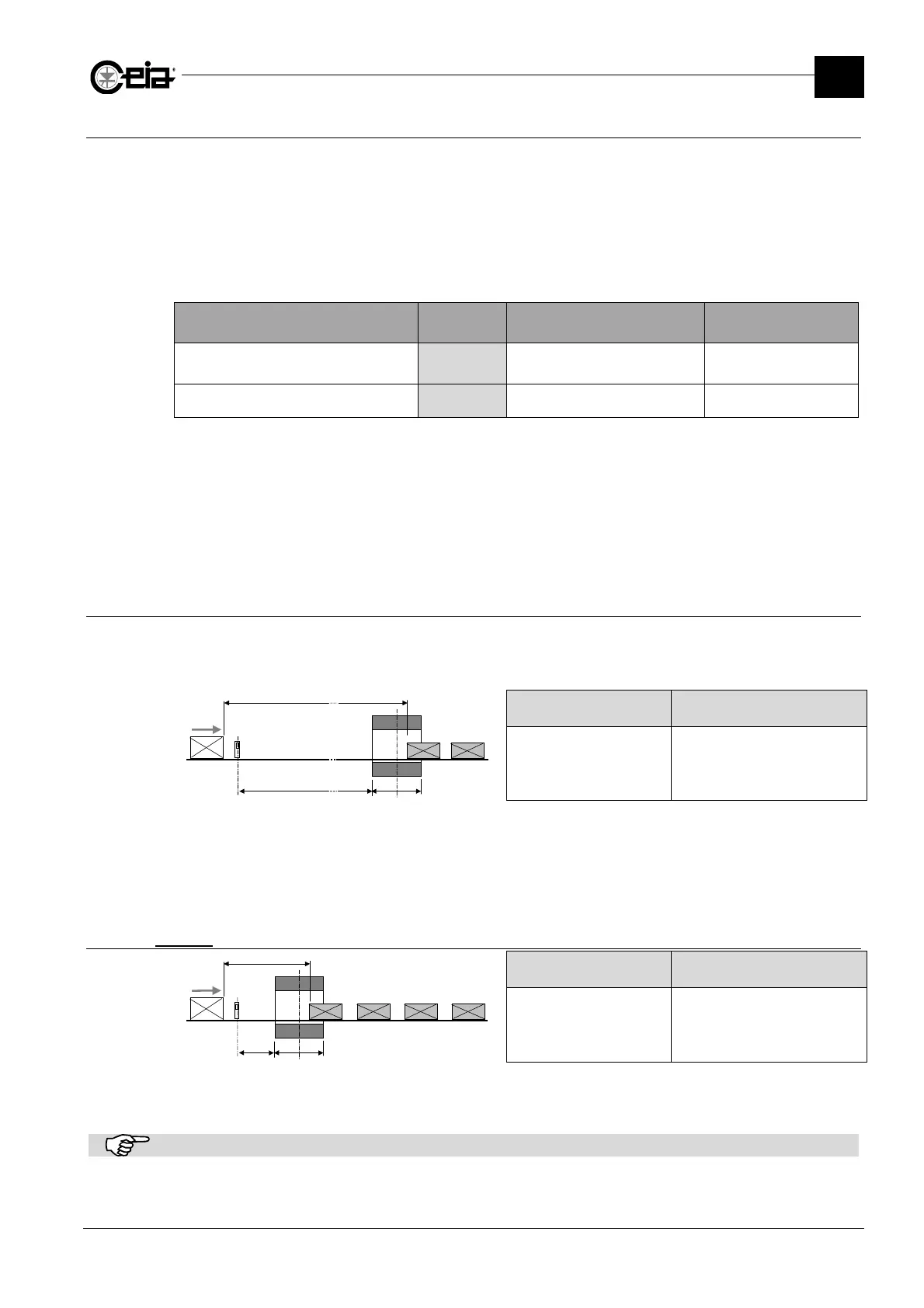

3.8.10 Barcode reader
Where present, the reader must be mounted upstream of the probe, in order to read a code
stamped on the pack; it must be connected to connector J11 on the ALM card. If the code is
recognized, the reader sends a command to the Metal Detector to select the relevant product type.
The time required by the THS/21 to process the barcode is usually insignificant, but becomes
significant if the detection mode, or band, is changed due to a modification in the type of product.
When the Metal Detector receives the signal to change product type, an internal adjustment
procedure is activated to adjust the length of the minimum distance between two packs with
different codes, that is to say containing different products.
Programming menu
Remote
parameter
Description Setting
Configuration(adv) > Barcode enable
BE
Code provided by CEIA to enable
the barcode reader.
6-digit alphanumeric
string
Barcode reader *
-
Barcode reader settings
-
* The menu is shown only when the barcode reader is enabled.
The serial port of the barcode reader must be set to: 9600,N,8,1.
The following code formats are supported:
- XXXXXX<CR>
- XXXXXX<CR><LF>
- <STX>XXXXXX<ETX>
Where XXXXXX is a string of 48 characters (max.)
3.8.10.1 With change of Detection Mode or Band between two products
For more information about the Detection Mode, see the DM Parameter section of the
Programming Manual.
For more information about the Band, see the BA Parameter section of the Programming Manual.
Distance between the
packs
Distance between the barcode
reader and the THS/21 probe
D
p
 L + 3000 mm D
sbr
 3000 mm
S: probe/electronics unit of the Metal Detector; L: length of probe; N: conveyor belt; BR: Barcode reader;
Dsbr:Distance THS/21 probe-barcode reader; Dp: Distance between the packs of different products
Installing the barcode reader closer than 3000 mm will result in product ejection during two
detection mode cycles. After the cycle time, the system will be operated normally.
3.8.10.2 Without
change of Detection Mode or Band between two products
L
S
Dp
BR
N
Dsbr
Distance between the
packs
Distance between the barcode
reader and the THS/21 probe
D
p
 L + 300 mm D
sbr
 300 mm
S: probe/electronics unit of the Metal Detector; L: length of probe; N: conveyor belt; BR: Barcode reader;
Dsbr:Distance THS/21 probe-barcode reader; Dp: Distance between the packs of different products
These distances are indicative and also depend on the speed of transit of the products involved.
