3.8.9.2 Belt stop with photocell synchronization and manual reset (EM=SB)
EM Typical product Ejector Type Ejection Notes
SB
Large/heavy packed
product.
Low throughput.
Belt stop
Contaminated product to
be removed manually
Synchronization photocell
required
Operation with halting of the production line synchronized by photocell, manual elimination of the
contaminated material and manual reset by the operator. Allows precise positioning of the material
to be ejected.
Programming menu
Remote
parameter
Description Setting
Ejection > ejection mode
EM
Halting of the production line and manual
elimination of the contaminated material
SB
Ejection > ejector
ED
Distance of the contaminated pack stop area
from the synchronization photocell
0 - 6000 mm

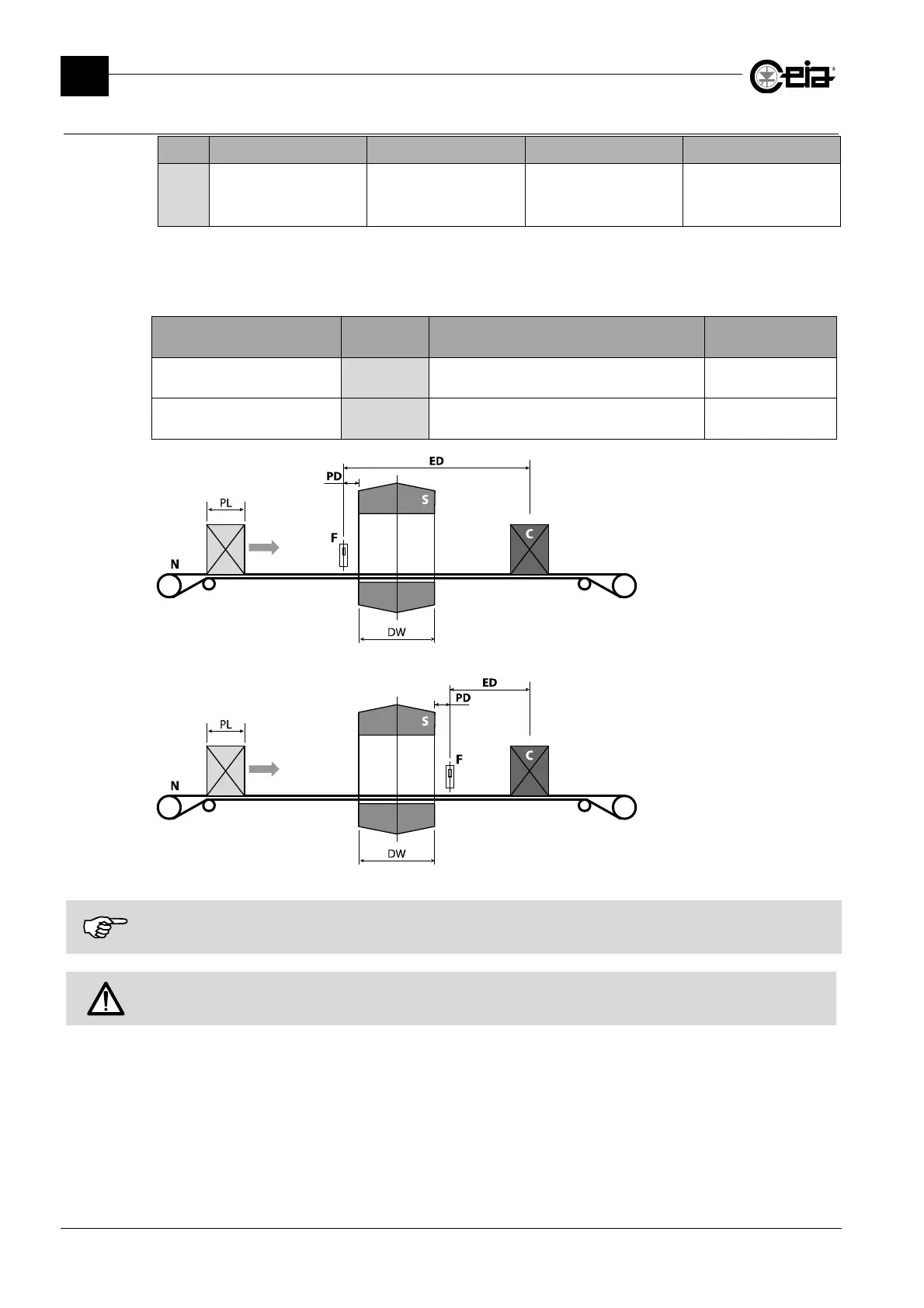

S: Metal Detector probe
N: Conveyor belt
C: Contaminated pack
F: Synchronization photocell
PL: Pack length
DW: Detector width
ED: Ejection distance
PD: Photocell distance
Photocell at the entrance (PH=IN)
S: Metal Detector probe
N: Conveyor belt
C: Contaminated pack
F: Synchronization photocell
PL: Pack length
DW: Detector width
ED: Ejection distance
PD: Photocell distance
Photocell at the exit (PH=OUT)
The Metal Detector does not check if there are any other fragments in the material immediately following. This means
that you must remove all the material between the probe entrance and the removal area. To minimize waste of
material it is advisable to select a low setting for the ED parameter.
After an alarm, if the conveyor belt is stopped, pressing STOP or one of the production line emergency buttons before
the contaminated pack has reached the predefined stop position means the Metal Detector will remain in alarm status
and cannot be reset until the belt is restarted, allowing the contaminated pack to reach the predefined stop position.
