FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
DESCRIPTION
40 ORIGINAL INSTRUCTIONS

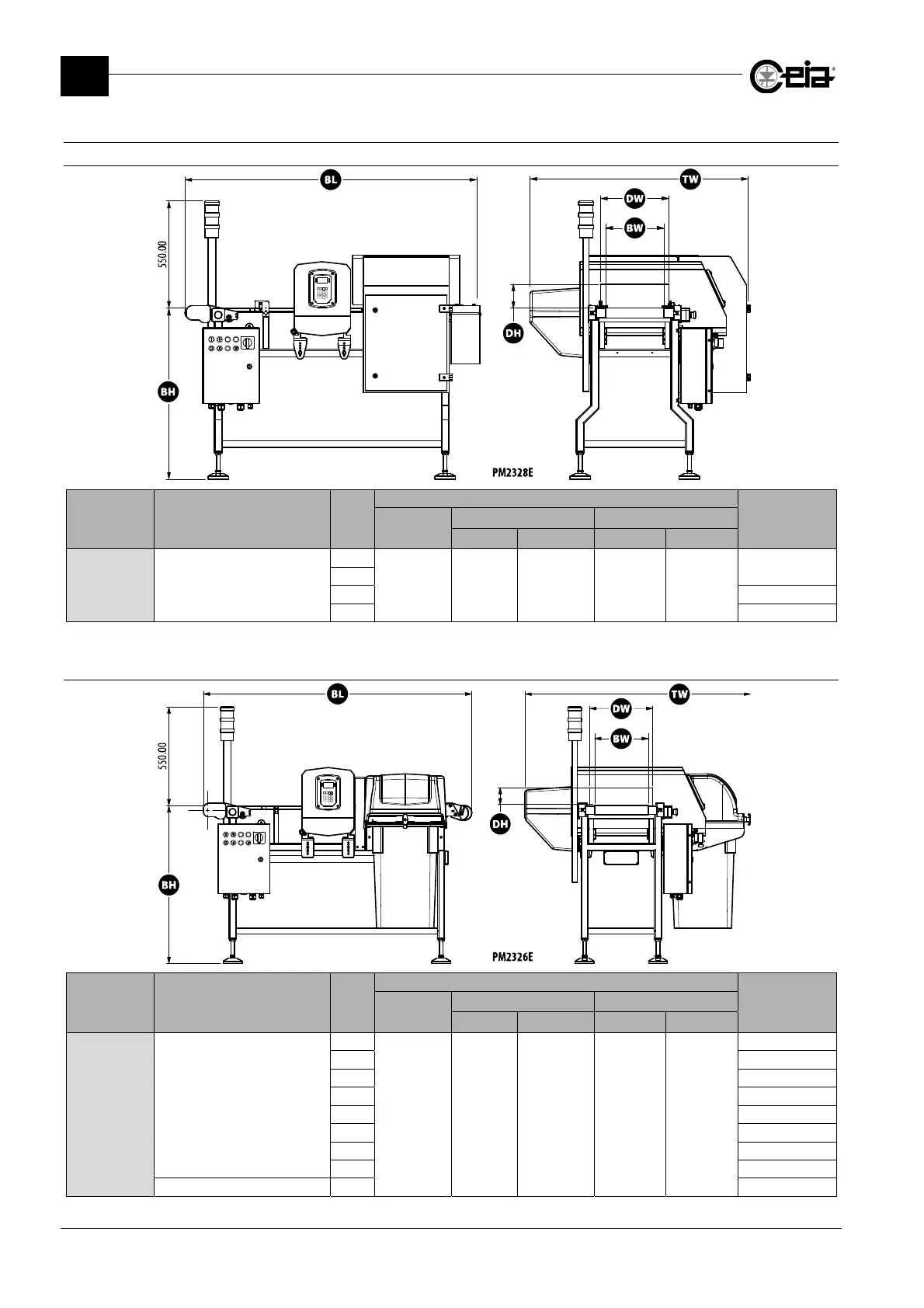

2.6.3 Integrated systems
2.6.3.1 THS/FBB
Model BL BW
BH
TW
castors
feet feet extension *
700 875 125 250
THS/FBB 1000, 1300, 1500, 1800
200
920 ±50 700 ±75 875 ±75 1000 ±75 1125 ±75
861 - 1113
300
400 961 - 1213
500 1061 - 1313
* available only on belt height 875 mm
2.6.3.2 THS/FB
Model BL BW
BH
TW
castors
feet feet extension *
700 875 125 250
THS/FB
1000, 1300, 1500,
1800, 2000
150
not
available
700 ±75 875 ±75 1000 ±75 1125 ±75
601 - 1226
200 651 - 1276
250 701 - 1326
300 751 - 1376
350 801 - 1426
400 851 - 1476
450 901 - 1526
500 951 - 1576
1300, 1500, 1800, 2000 600 1051 - 1676
* available only on belt height 875 mm
