INSTALLATION
64 ORIGINAL INSTRUCTIONS
3.4.3 Connecting up to the compressed air supply
If present, remove the protective casing, removing the screws, and connect the pneumatic
pressure source according to the ejector type.
3.4.3.1 Ejector cylinder or retracting belt
Connect the unit to the compressed air supply with an 8 mm diameter hose and a quick-release
connector.
3.4.3.2 Air jet ejector
Connect the unit to the compressed air supply with a 10 mm diameter hose and a quick-release
connector.
The pneumatic pressure source must be filtered with an oil-free 5

m filter, to prevent any contamination of the product in
transit and to ensure the ejection device functions correctly.
3.4.4 Adjustment
3.4.4.1 Ejector cylinder or retracting belt
If the works settings for the cylinder piston force and speed are not suitable for the product to be
ejected, you can adjust these settings using the pressure regulator A3 (max 0.6 MPa) (to adjust the
force) and the IN and OUT flow regulators A8 and A9 on the cylinder (to adjust the speed).
3.4.4.2 Air jet ejector
If the works flow regulator setting is not suitable for the product to be ejected, you can adjust this
setting on the flow regulator A4.

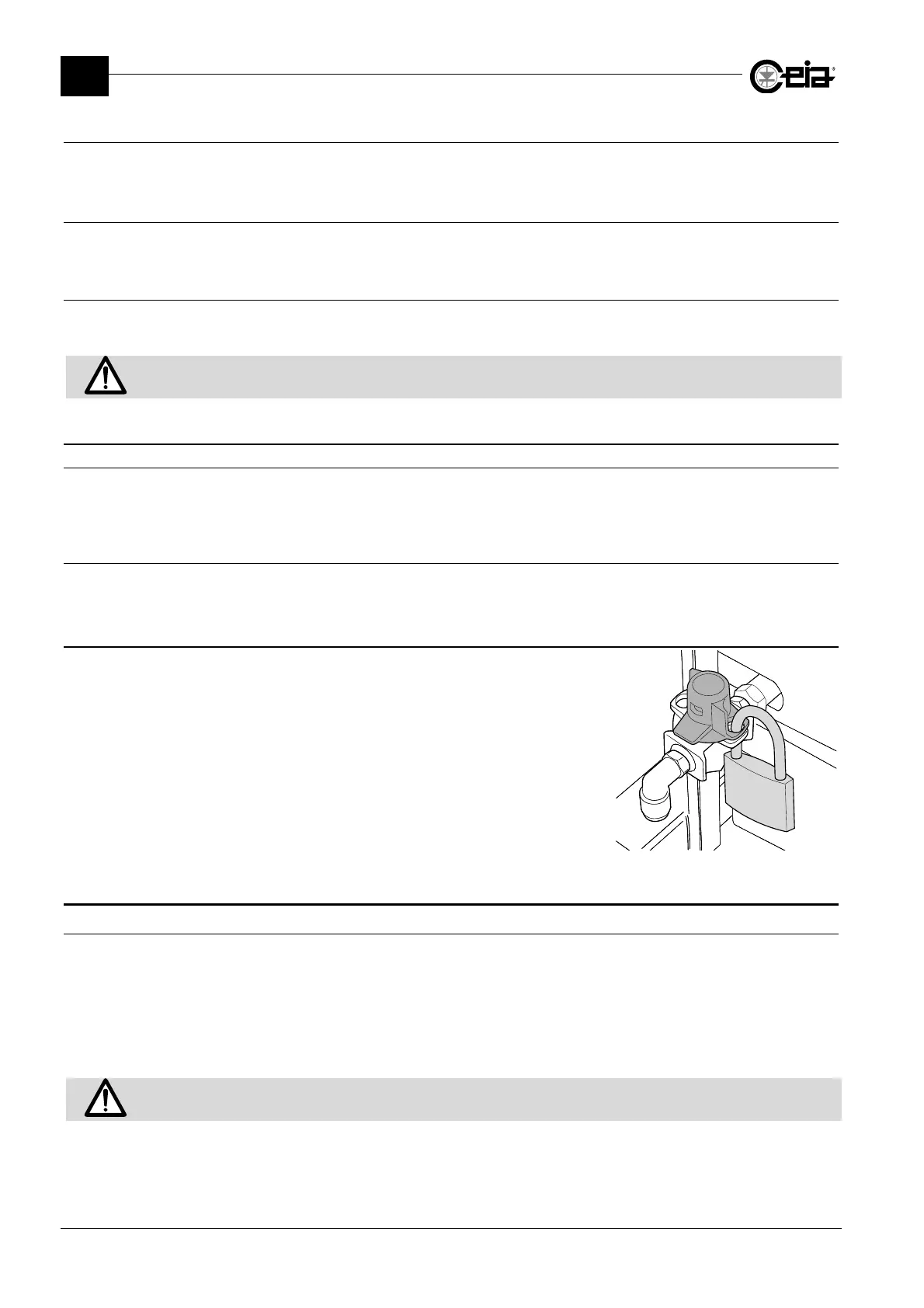

3.4.5 Padlocking the compressed air
Before any maintenance work, the interception valve of the
pneumatic circuit must be closed with a padlock when it is in the
discharge position.
This installation is the responsibility of the Customer.
3.5 Electrical Installation
3.5.1 Installing connecting cables
The following instructions refer to the installation of connecting cables to external equipment and
servo systems.
- Only connect one cable to each cable gland.
- When you have finished installation, check that all the cable glands are tightened.
- Only use original cable glands and plugs supplied by CEIA. See the Spare Parts Manual for
details.
Close off any unused cable gland holes with the plugs provided. Do not use the equipment with the cable gland holes
open.
