Ceia THS/MS21 - THS;M65 and THS;M69 K (Modular Belt)

FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
2
DESCRIPTION
ORIGINAL INSTRUCTIONS 29

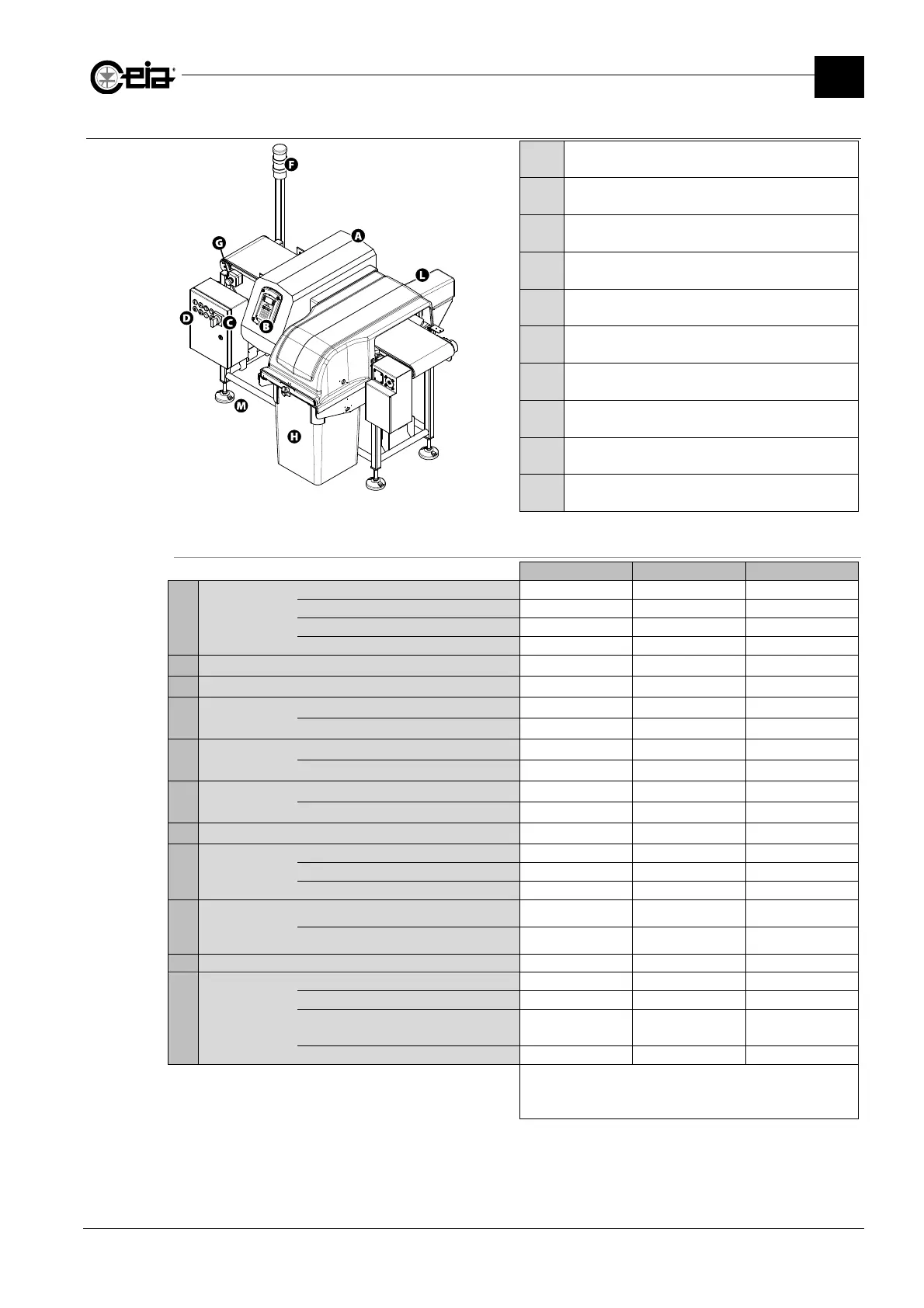

2.3.2.4 THS/M65 and THS/M69K (modular belt)
THS/M65 with ejection system
A
Metal Detector antenna
B
Programming and control panel
C
Main switch
D
Conveyor belt control panel
E
Synchronization photocell
F
External beacon
G
Emergency button
H
Reject bin
L
Ejection system
M
Support feet (to be fixed to the floor) or lockable
castors
Available features and options
Belt length 1300 1500 1800
F Signalling
External buzzer
  
Red lamp for alarm and fault
  
Amber lamp for alarm
  
Blue lamp for test request
  
E Synchronization photocell
  
- Belt variable speed
  
- Belt type
Flush grid
  
Flat top
  
- Belt height
875 mm
  
700 mm
  
M
Height
extension
125 mm

1

1

1
250 mm

1

1

1
M Stand type Adjustable feet (floor fixing) ±75 mm
  
L
Ejection
system
None (belt stop in case of alarm)
  
Reject pusher cylinder

2
 
Reject air jet

2
 
H Reject bin
Standard
  
Large
  
- Side panels for product containment
  
- Sensors kit
Ejection confirmation
  
Ejection confirmation, bin full alarm
  
Ejection confirmation, bin full alarm,
low pressure alarm
  
Emergency activation if bin absent
  
1. Applicable only on belt height 875
2. Available only on some configurations

Standard

Accessory / Option

Not available
