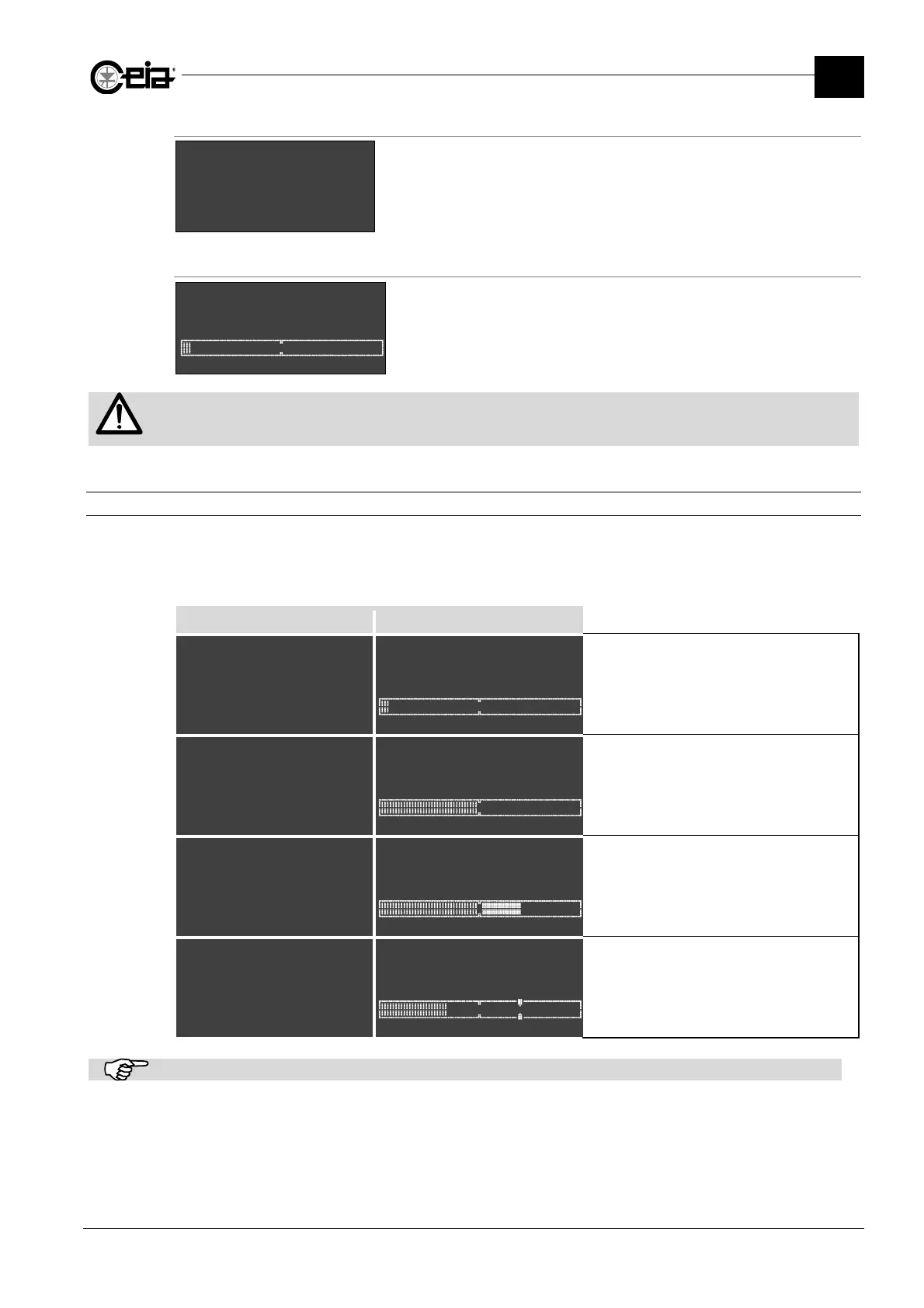

FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
4
USE OF THE DEVICE
ORIGINAL INSTRUCTIONS 127
THS/xx21E
THS/xx21E V5.xxx
Prod. PROD01
^
The first line identifies the model and the software version of the
Metal Detector. The second line indicates the type of programming,
specific to one product which may be chosen from among 250
stored sets.
THS/xx21
/xx
ALM V5.xxx THS V5.xxx
Product:PROD01
The first line identifies the model. The second line identifies the
software version of the Metal Detector. The last line indicates the
type of programming, specific to one product which may be
chosen from among 500 stored sets.
On models where there is a control panel on both the probe and the power supply unit (because the probe is installed in a
position which is inaccessible to the operator), the control panel on the probe is disabled (the message “Remote control
ON” appears).
4.4.4 Signals given during normal operation
4.4.4.1 Indication of the received signal
On the fourth line of the display the signal being received is displayed by a horizontal illuminating
bar, divided into sections. When the signal increases, the bar extends towards the right. The alarm
threshold corresponds to the centre of the bar: the sections on the left are vertical bars; those on
the right fill a white area.
THS/xx21E THS/xx21
THS/xx21E V5.xxx
Prod. PROD01
^
/xx
ALM V5.xxx THS V5.xxx
Product:PROD01
Signal well below the threshold level
THS/xx21E V5.xxx
Prod. PROD01
^^^^^^^^^^
/xx
ALM V5.xxx THS V5.xxx
Product:PROD01
Signal just below the threshold level
THS/xx21E V5.xxx
Prod. PROD01
A: 4.0dB
^^^^^^^^^^*****
/xx
ALM V5.xxx THS V5.xxx
A: 4.0dB
Product:PROD01
Signal above the threshold level (alarm)
THS/xx21E V5.xxx
Prod. PROD01
A: 4.0dB
^^^^
/xx
ALM V5.xxx THS V5.xxx
A=4.0dB
Product:PROD01
After the alarm, the maximum signal amplitude
is displayed for a few seconds together with its
amplitude
The screens shown here are purely indicative.
