DESCRIPTION
ORIGINAL INSTRUCTIONS 19
2.2 Detection Probes
2.2.1 THS/21E and THS/21E-3F
The THS/21E is a high-sensitivity Metal Detector controlled by a microprocessor and designed for
industrial use. It is also available in an extremely compact version, the THS/SL21E (SLIM LINE
version), for mounting on a conveyor belt and is ideal for weighing machines.
The THS/21E-3F is a multi-frequency technology model, for use with a variety of products with
significant chemical-physical differences (dry, wet, frozen product, packed in metallized film). A slim
line version is also available: THS/SL21E-3F.

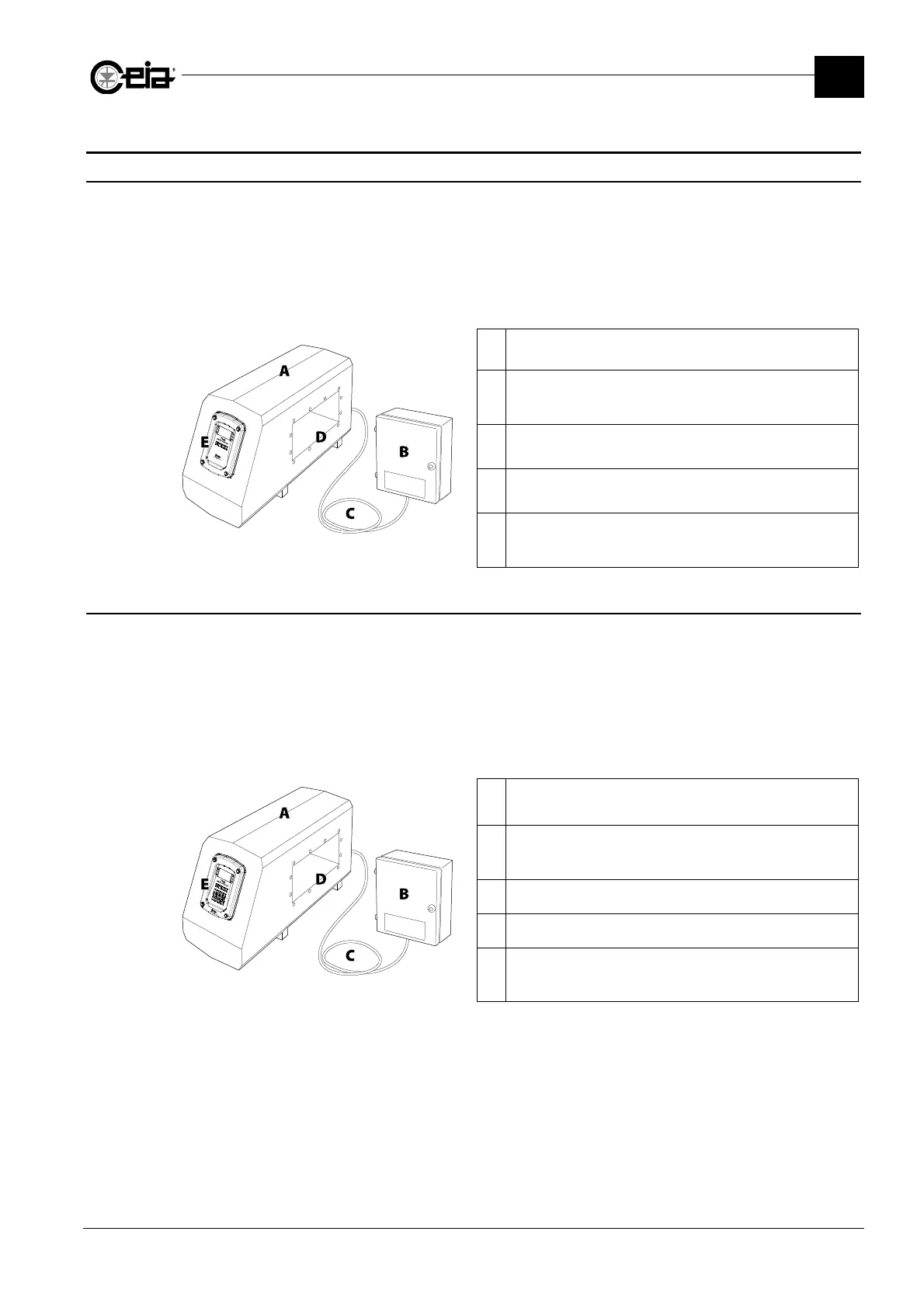

THS/21E
A
The Metal Detector probe, complete with electronic control
unit
B
The power supply box, for connecting the device to mains
power and to the external units (photocell, ejector, etc.).
See section 2.3 for possible configurations.
C
Connecting cable
D
Tunnel
E
Stainless steel control panel fitted with alphanumeric display
and a 4-key programming keyboard
2.2.2 THS/21 and THS/MS21
The THS/21 is a very high-sensitivity Metal Detector controlled by a microprocessor and designed
for industrial applications processing dry products. It is also available in an extremely compact
version, the THS/SL21 (SLIM LINE version), for mounting on a conveyor belt and is ideal for
weighing machines.
The THS/MS21 is a multi-spectrum technology model, for use with a variety of products with
significant chemical-physical differences (dry, wet, frozen product, packed in metallized film). A slim
line version is also available: THS/SLMS21.
THS/21
A
The Metal Detector probe, complete with electronic control
unit
B
The power supply box, for connecting the device to mains
power and to the external units (photocell, ejector, etc.).
See section 2.3 for possible configurations.
C
Connecting cable
D
Tunnel
E
Stainless steel control panel fitted with graphic display and a
16-key programming keyboard
