DESCRIPTION
ORIGINAL INSTRUCTIONS 21
2.2.4 THS/G21E
The THS/G21E is a high-sensitivity model with circular tunnel for products transported in tubing.
The probe is designed to be fixed in an inaccessible position. The detector controls are therefore
incorporated in the power supply unit.
Its typical use is between multi-head weighing machines and packaging machines, or in
gravitational and pneumatic product transport systems in general (powders, granular material,
liquids etc.).

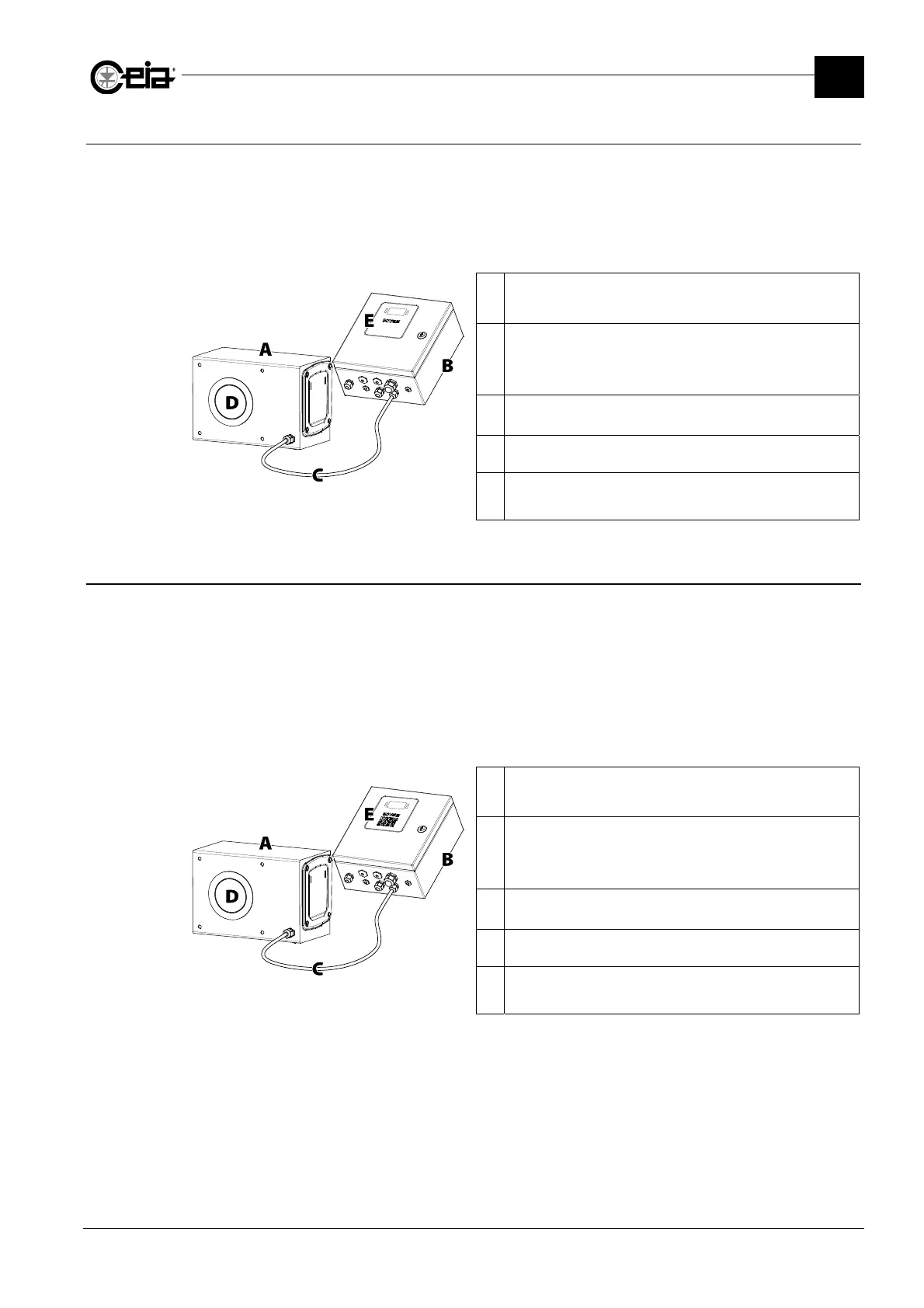

THS/G21E
A
The Metal Detector probe complete with electronic control
unit
B
The power supply box, for connecting the device to mains
power and to the external units (photocell, ejector, etc.), with
a remote control unit (RCU).
See section 2.3 for possible configurations.
C
Connecting cable
D
Tunnel
E
Stainless steel control panel, fitted with alphanumeric display
and 4-key programming keyboard
2.2.5 THS/G21 and THS/GMS21
The THS/G21 is a very high-sensitivity model with circular tunnel for products transported in tubing.
The probe is designed to be fixed in an inaccessible position. The detector controls are therefore
incorporated in the power supply unit.
The typical use of THS/G21 is between multi-head weighing machines and packaging machines, or
in gravitational and pneumatic product transport systems for dry products (e.g. powders or granular
material).
The THS/GMS21 is a multi-spectrum model, for use with a variety of products with significant
chemical-physical differences (powders, granular material, liquids etc.).
THS/G21
A
The Metal Detector probe complete with electronic control
unit
B
The power supply box, for connecting the device to mains
power and to the external units (photocell, ejector, etc.), with
a remote control unit (RCU).
See section 2.3 for possible configurations.
C
Connecting cable
D
Tunnel
E
Stainless steel control panel, fitted with graphic display and
16-key programming keyboard
