FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
2
DESCRIPTION
ORIGINAL INSTRUCTIONS 23

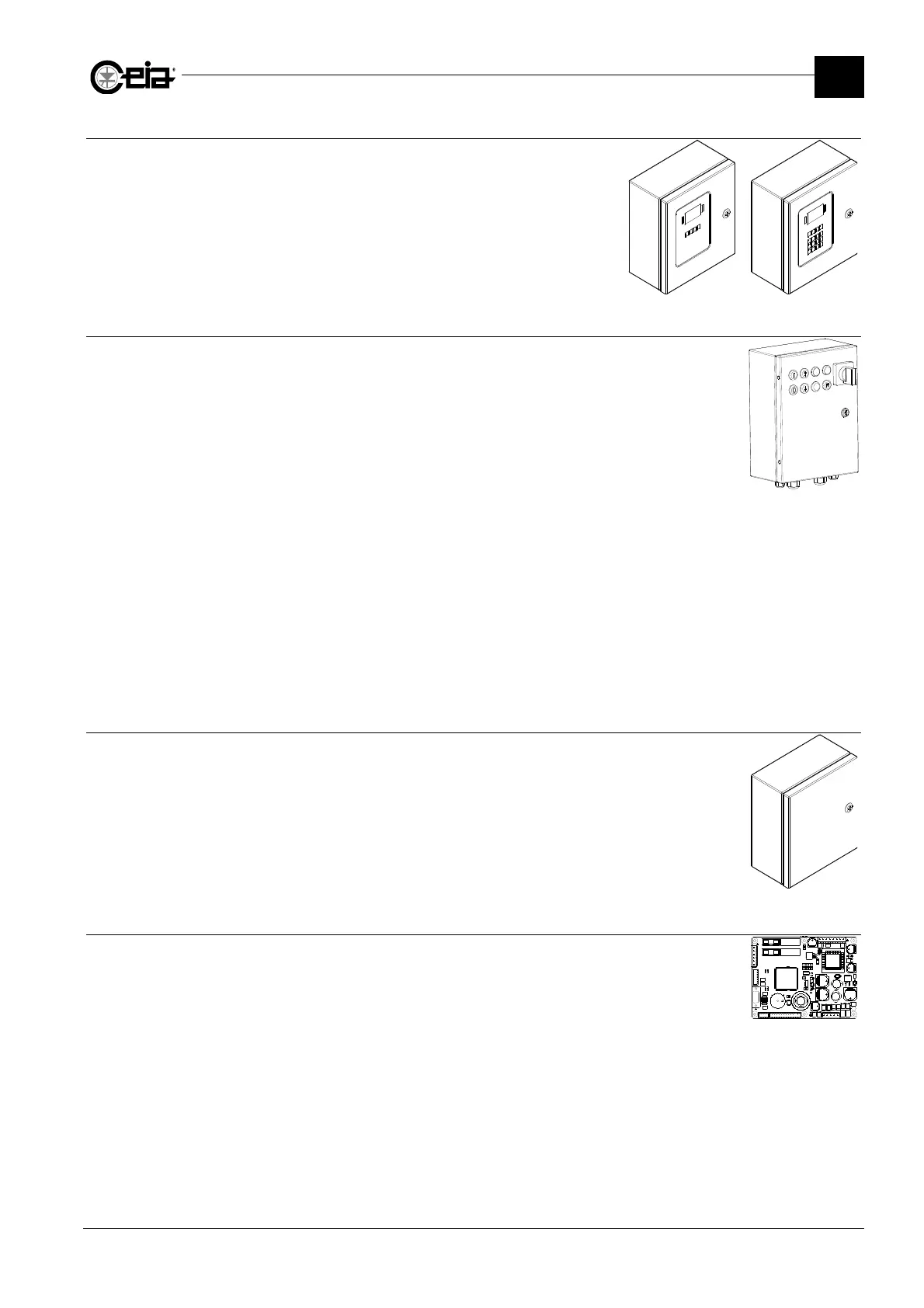

2.2.6.2 Remote Control Unit (RCU)
The THS/21x Metal Detector can be fitted with an optional
remote control unit (RCU). The RCU is designed for all those
applications where the antenna and the power supply unit
are fitted in positions which are difficult for the operator to
reach.
RCU
2.2.6.3 Conveyor Control System (CCS)
This unit has the same functions as the full version of the control power box
(CPB) and in addition has a conveyor belt motor driver/control section.
Conveyor Control System
This module is available on the following versions:
- CE-mark version 230 V
- USA version 115 V
- USA version 230 V
See section 2.8 for the Technical Characteristics.
The Conveyor Control System also incorporates the main switch, the controls for activating the
belt and the LED indicators needed for operation.
2.2.6.4 Field Generator
This unit is part of the THS/MN21 model and is an additional power supply unit.
It is not available for other models.
Field Generator
2.2.6.5 Small Size Power Supply Unit (00211AL_ card)
This card is used in OEM applications, for integration in the customer's systems.
The card requires a power supply voltage of 24 V (20-30 VDC).
00211AL_ card
