3.8.9.5 Automatic ejection with photocell synchronization (EM=S)
EM Typical product Ejector Type Ejection Notes
S
Properly aligned and
spaced packed product.
High throughput.
Air jet, Pusher
Contaminated product
automatically ejected
Synchronization photocell
required
Operation with automatic ejection of contaminated material, synchronized by photocell. Very similar
to the previous application, this mode can be used for packaged products.
Programming menu
Remote
parameter
Description Setting
Ejection > ejection mode
EM
Automatic removal of contaminated material
with alarm synchronization
F
Ejection > ejector
ED
Distance of the ejector from the synchronization
photocell
0 - 6000 mm
Ejection > ejection time
ET
Ejection relay activation time
0.01 - 30.00 s

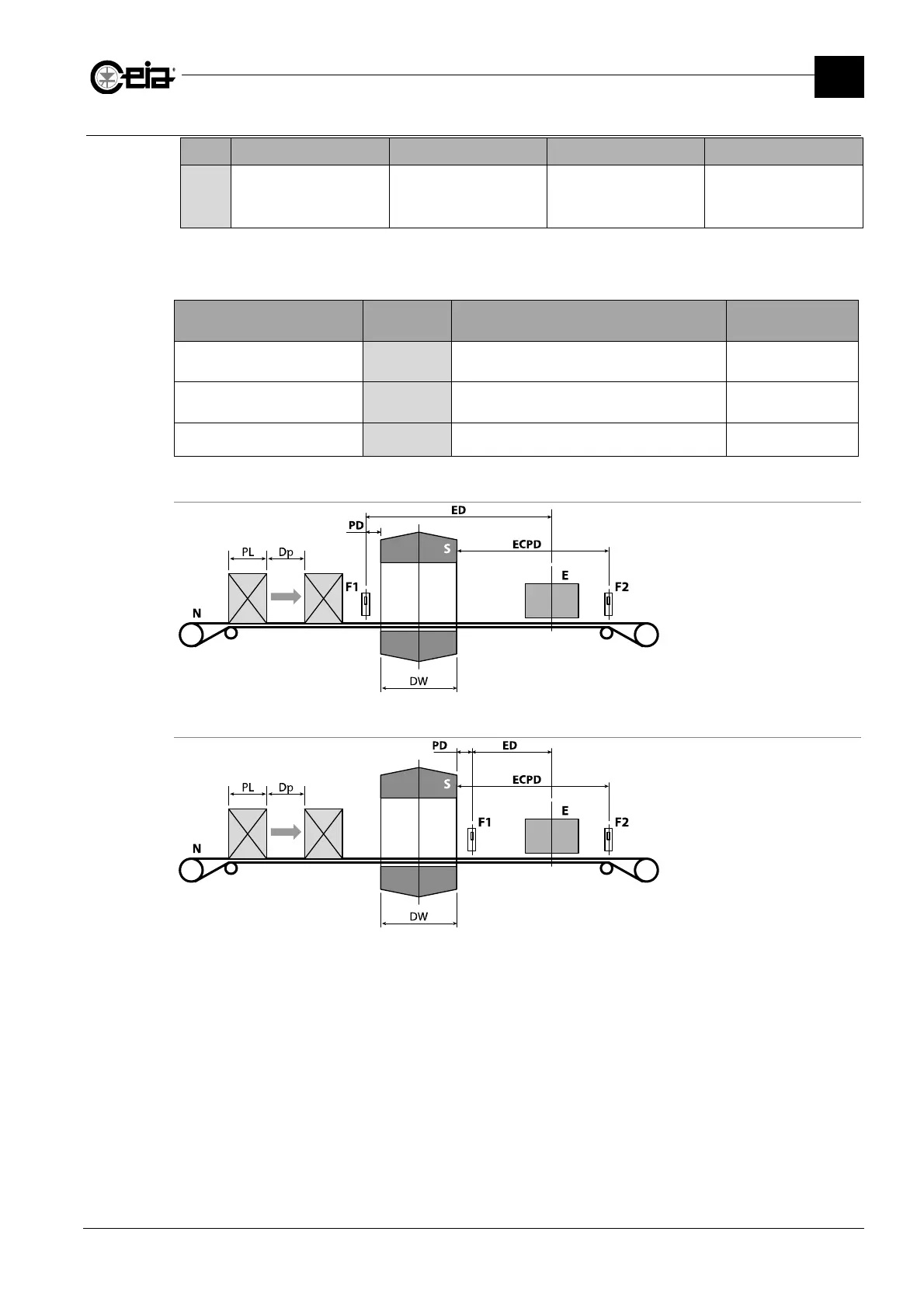

Photocell at the entrance to the probe
S: Metal Detector probe
N: Conveyor belt
E: Ejector
F1: Synchronization photocell
F2: Ejection check sensor
PL: Pack length
DW: Detector width
ED: Ejection distance
PD: Photocell distance
Dp: distance between packs
Photocell at the exit from the probe
S: Metal Detector probe
N: Conveyor belt
E: Ejector
F1: Synchronization photocell
F2: Ejection check sensor
PL: Pack length
DW: Detector width
ED: Ejection distance
PD: Photocell distance
Dp: distance between packs
