Ceia THS/MS21 - Pneumatic Installation Details

FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
3
INSTALLATION
ORIGINAL INSTRUCTIONS 63
3.4 Pneumatic installation
This section only refers to CEIA integrated systems fitted with an ejector.
3.4.1 Minimum requirements
The mains compressed air supply must supply a pressure of between 600 and 1000 kPa (87 – 145
psi).

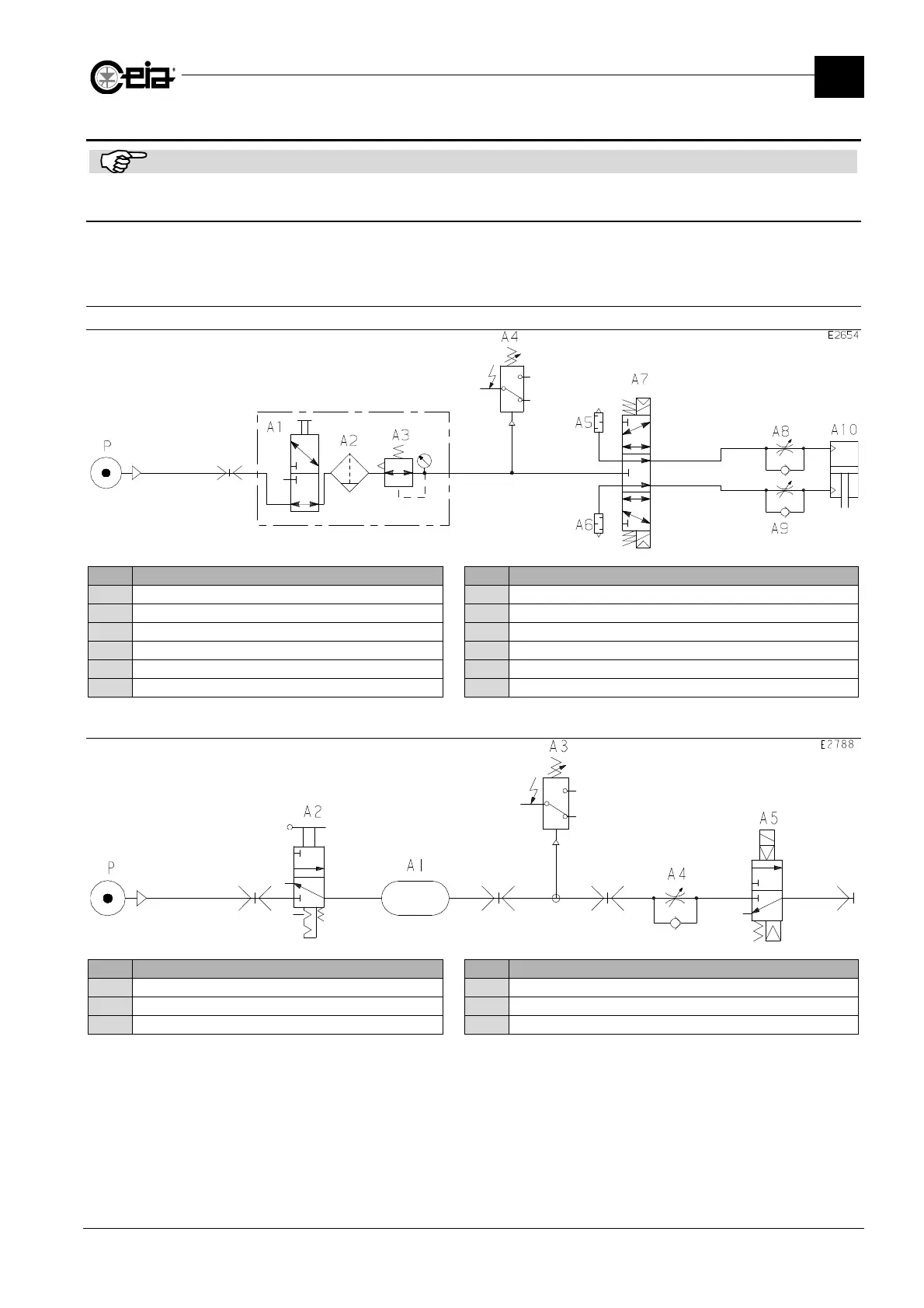

3.4.2 Pneumatic circuit diagrams
3.4.2.1 Ejector cylinder or retracting belt
# Description # Description
P
Compressed air supply
A6
Silencer
A1
3/2-way manual control valve
A7
5/3-way directional control valve, exhaust neutral position
A2
Filter
A8
Adjustable flow regulator
A3
Adjustable pressure control valve
A9
Adjustable flow regulator
A4
Adjustable pressure switch (optional)
A10
Actuator
A5
Silencer
3.4.2.2 Air jet ejection system
# Description # Description
P
Compressed air supply
A3
Adjustable pressure switch (optional)
A1
Pneumatic capacitor
A4
Adjustable flow regulator
A2
3/2-way manual control valve
A5
3/2-way directional control valve
