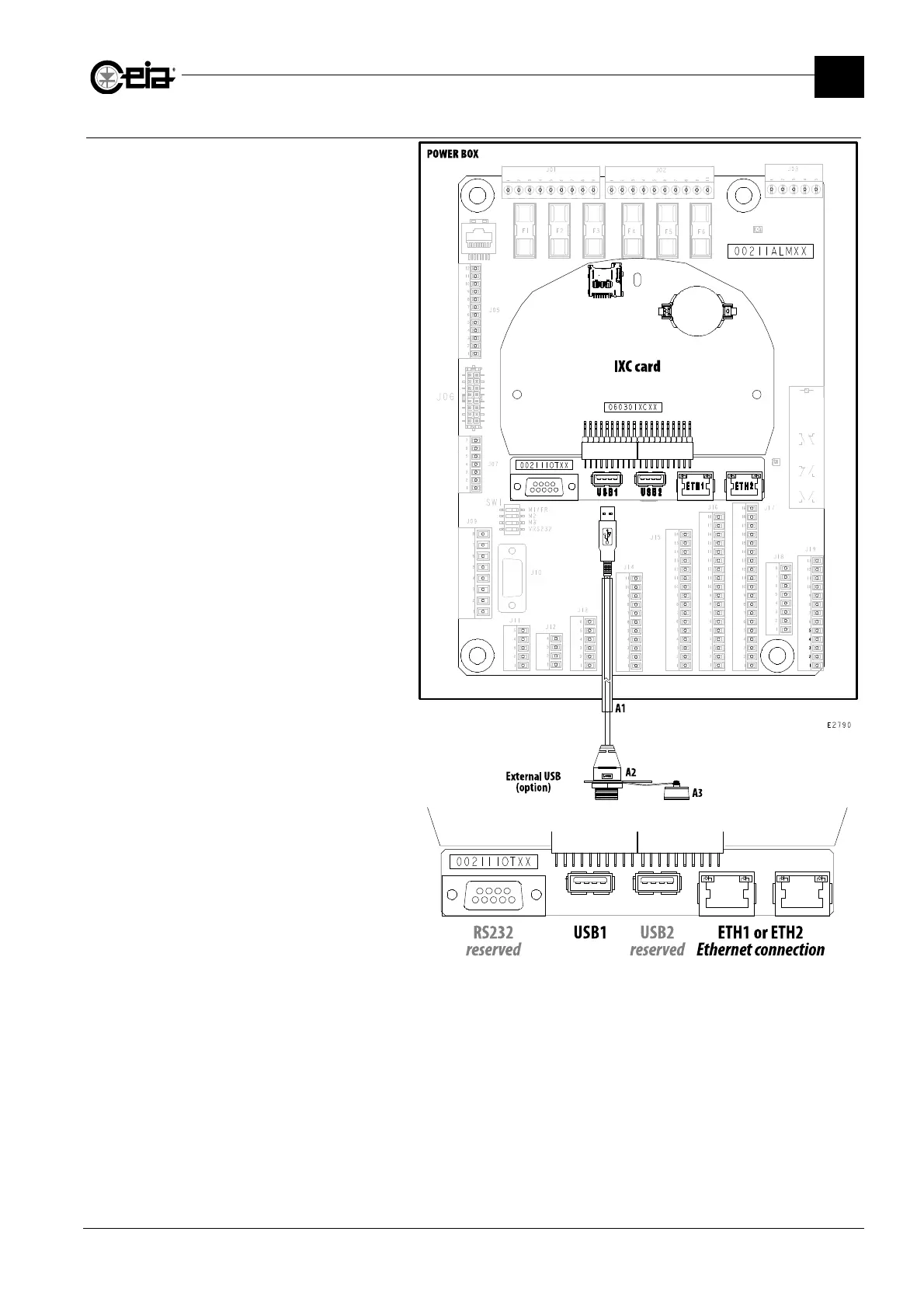

3.6.4 IXC card (available on request)
The IXC card gives the
Detector:
- A network interface, either
Ethernet or WiFi, with the
following characteristics:
- Ethernet port speed: 100
Mbps max
- IP protocol: Static/DHCP
- WiFi mode: Infrastructure
(range of about 10-15 m
in open area)
- WiFi security:
Open/WEP/WPA/WPA2
- A USB interface, to save or
load (from/to an external
USB memory device, FAT32
formatted, connected to the
USB port) all data relative to
the products, the Metal
Detector configuration and
occurred events.
- An internal memory where
the occurred events are
saved (up to 100,000
events).
