FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
INSTALLATION
68 ORIGINAL INSTRUCTIONS
3.5.6 Connection to the Production Line emergency circuit
If the CEIA integrated system is connected in line with other machines, the emergency buttons
must be connected in such a way that activating one emergency button on the line stops all the
machines on that line.
Inside each emergency button of CEIA Integrated Systems, there is an unused contact which must
be connected by the installer so that, when pressed, it stops the line on which the Metal Detector is
located.

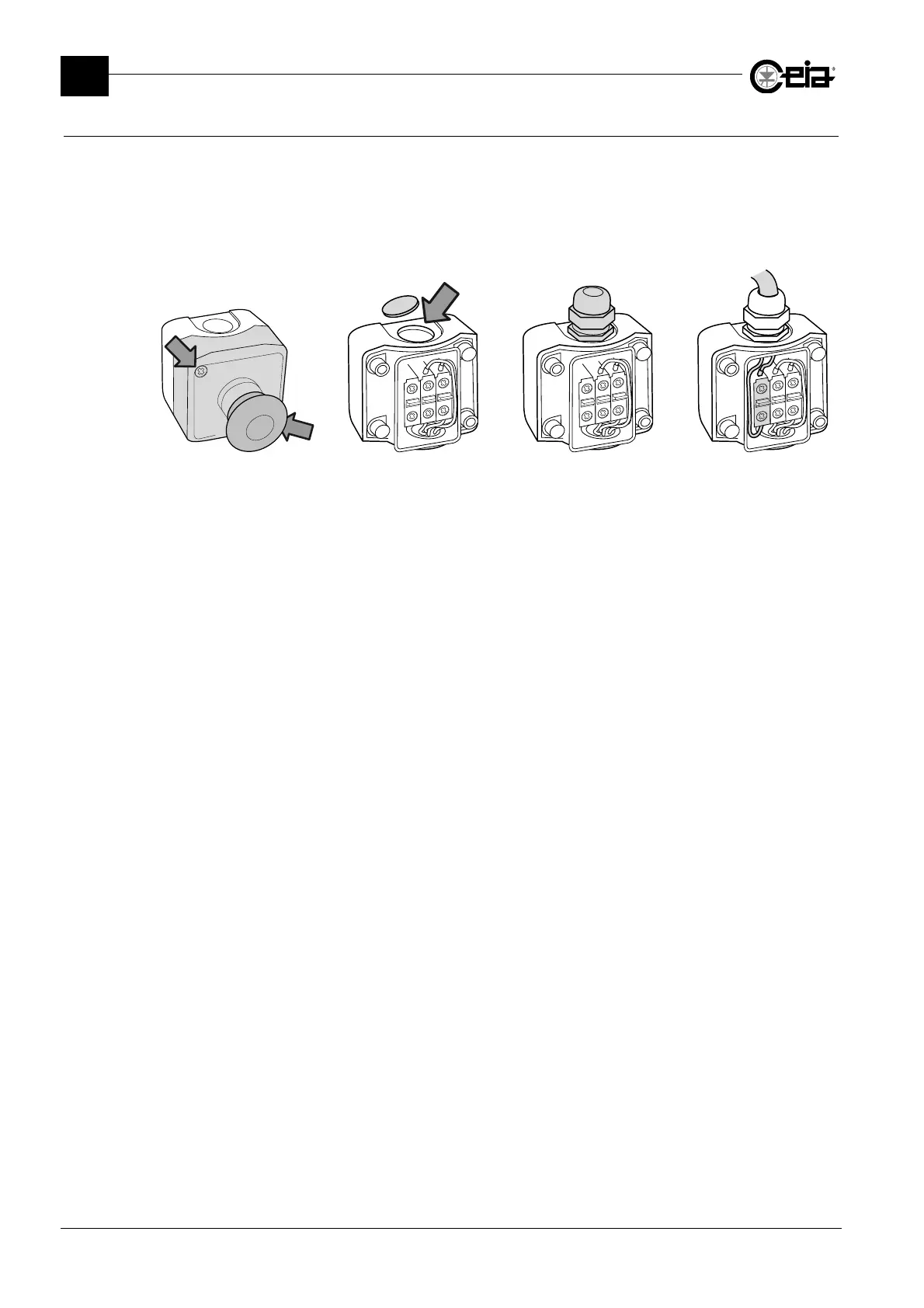

Unscrew and remove the
cover of the emergency
button, to access the
contacts inside
Release the pre-pressed
hole on the emergency
button container
Insert an M20 cable gland
and lock on the hole
Insert a cable of the right
size for the gland, so that the
degree of protection is
guaranteed, and connect the
terminals to the free contact
The emergency circuit of the production line to which the Metal Detector belongs must also provide
the CEIA Integrated System with a clean contact, normally closed, which opens if the emergency
button is pressed, allowing the CEIA conveyor belt to be stopped.
This contact must be connected to terminals 3 and 4 of connector J19 on the ALM card (see the
electrical diagram).
