FI002K0018v1100UK – THS/21 Instruction manual for installation, use and maintenance
INSTALLATION
62 ORIGINAL INSTRUCTIONS

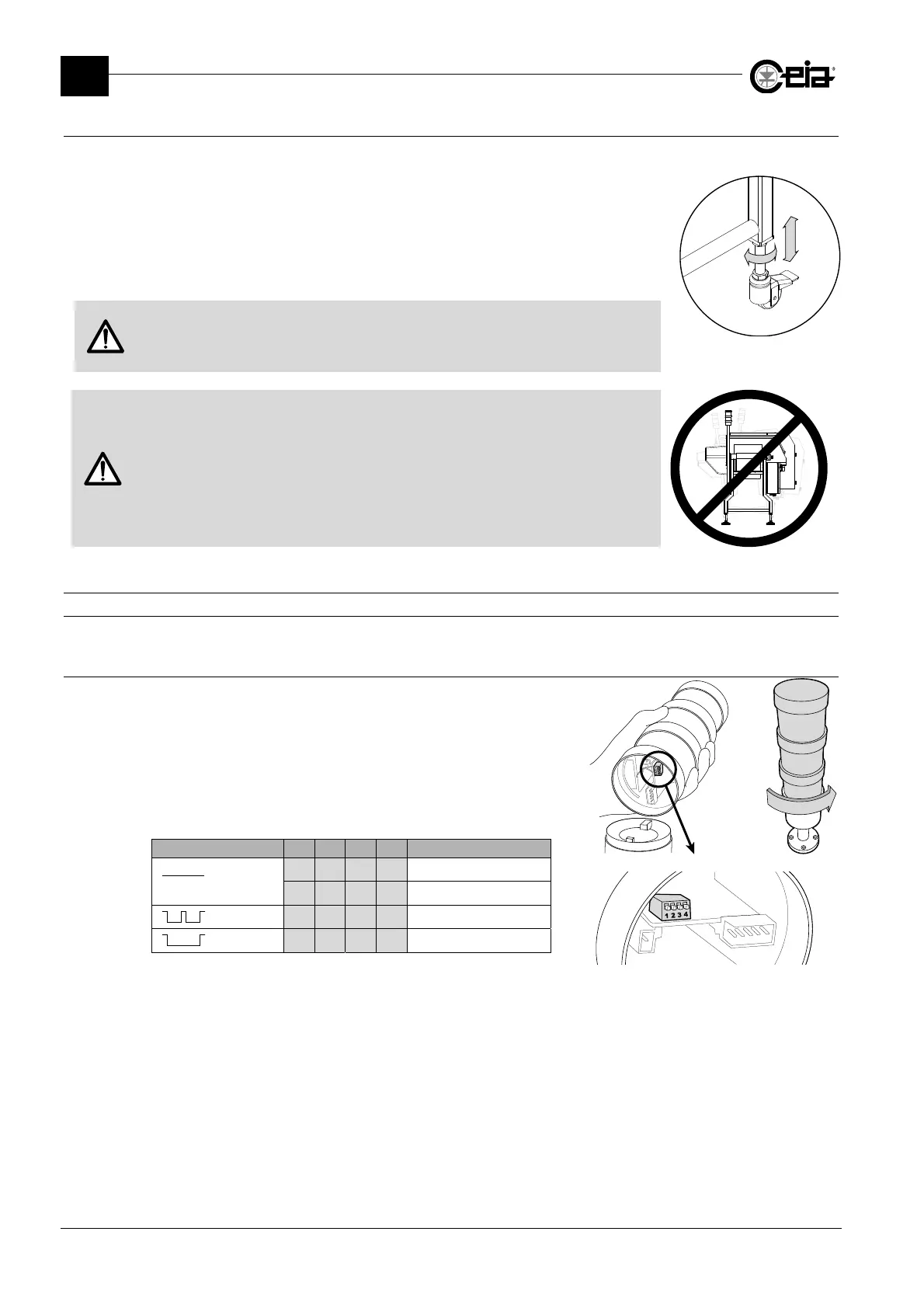

3.3.2 Integrated systems
Position the CEIA integrated system directly on the production line.
Adjust the height of the conveyor belt so that it is aligned with the
production line. To do this, adjust the height of the four feet or the four
castors.
Loosen the lock nut and turn the pin to raise or lower the foot as required.
When you have adjusted the height, lock the lock nuts and then brake the
castors with the locking lever or anchor the four feet to the floor.
Warning! Some models can have a high centre of gravity. While moving and carrying out
the installation procedure, take precautions to ensure that the detector cannot fall over.
Once installation is completed, the structure to which the Metal Detector is attached must
ensure its stability.
Important! When you adjust the height of the CEIA integrated system, ensure that the sling
surface remains parallel with the floor.
3.3.3 Assembly of components
3.3.3.1 Metal Detector
No mechanical assembly procedure is requested.
3.3.3.2 Integrated systems
When you have unpacked the system, mount the outside
signalling unit (beacon) on its support. Ensure that the
connectors are correctly connected. Lock the unit in
position by turning the ring nut.
The volume and type of sound can be adjusted using
mini-dipswitches.
To access the minidips, turn the upper
part in an anticlockwise direction.
Type of sound 1 2 3 4 Volume
2.8 kHz
1 1 1 1 90 dB
1 0 0 1 85 dB
5 Hz 0 1 1 0 80 dB
1 Hz 0 0 0 0 70 dB
