5.4 Extraordinary maintenance procedures
5.4.1 Changing fuses

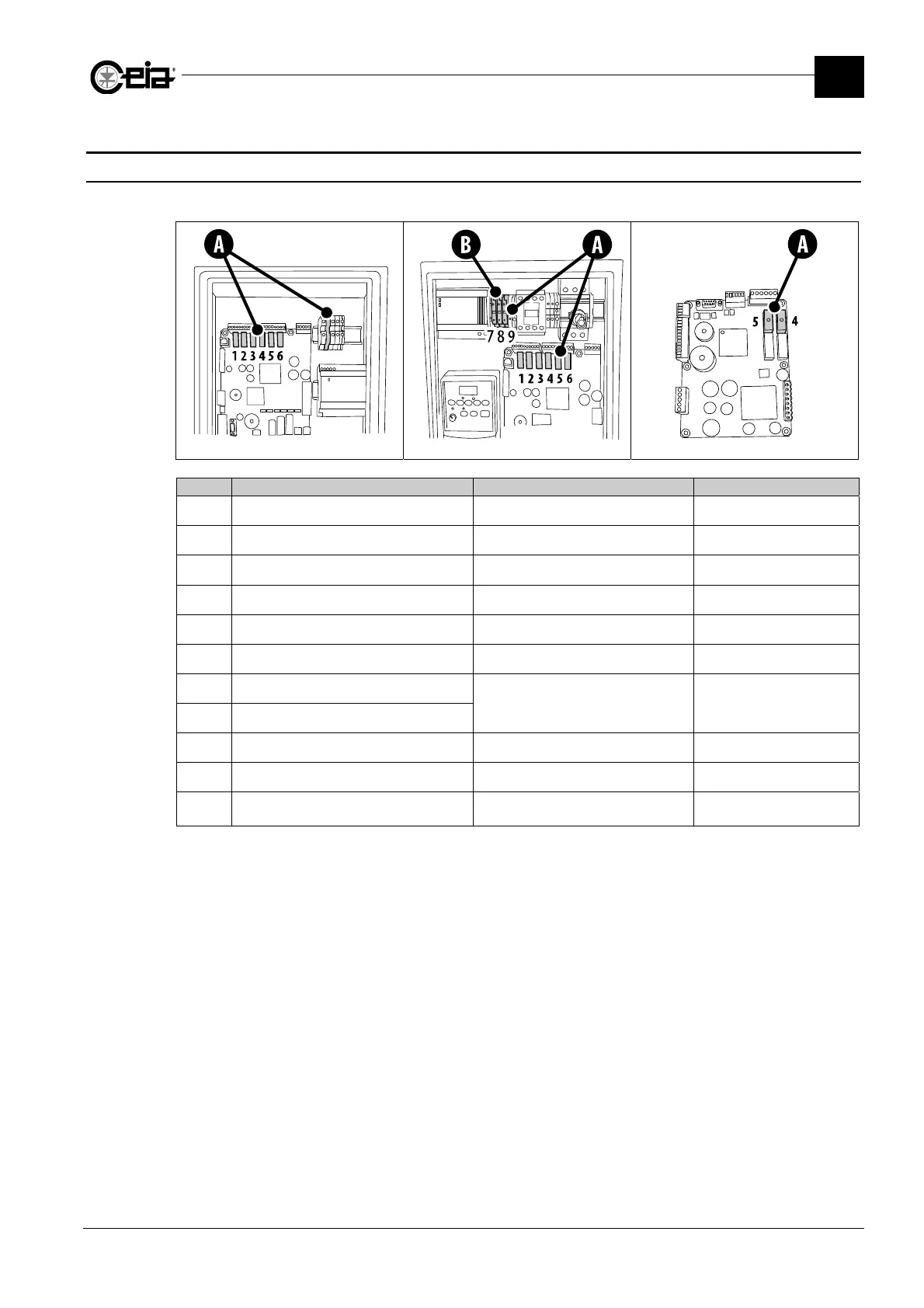

The figure shows the position and rating of the fuses fitted to the device.
Control Power Box Conveyor Control System Small Size Power Supply
Ref. Type Description Reference
1
250V 2,5A T-Lag 5x20mm
Auxiliary relay protection AUX RELAY
2
250V 2,5A T-Lag 5x20mm
Test request relay protection TEST REQUEST RELAY
3
250V 2,5A T-Lag 5x20mm
Upstream conveyor relay protection PREC CONV RELAY
4
250V 2,5A T-Lag 5x20mm
Ready relay protection READY RELAY
5
250V 2,5A T-Lag 5x20mm
Ejector relay protection EJECT RELAY
6
250V 2,5A T-Lag 5x20mm
Metal Detector alarm relay protection ALARM RELAY
7
250V 10A fast 5x20mm
AC/DC input protection -
8
250V 10A fast 5x20mm
9
250V 2,5A T-Lag 5x20mm
Protection on 24 V output -
A
250V 2,5A T-Lag 5x20mm
-
B
250V 10A fast 5x20mm
-
