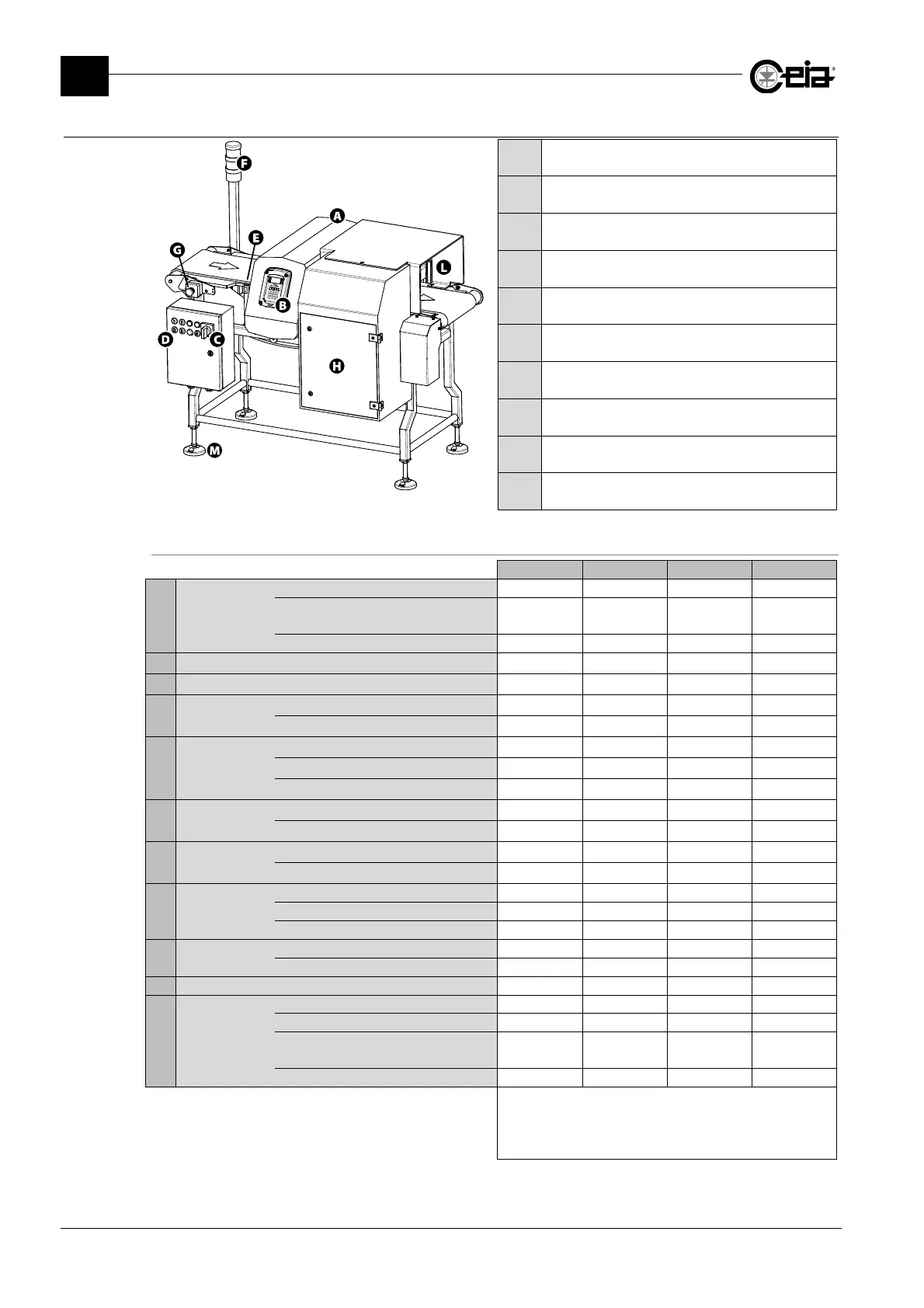

2.3.2.3 THS/MBB (modular belt)
THS/MBB with ejection system
A
Metal Detector antenna
B
Programming and control panel
C
Main switch
D
Conveyor belt control panel
E
Synchronization photocell
F
External beacon
G
Emergency button
H
Reject bin
L
Ejection system
M
Support feet (to be fixed to the floor) or lockable
castors
Available features and options
Belt length 1000 1300 1500 1800
F Signalling
Red lamp for alarm and fault
Amber lamp for alarm and external
buzzer
Blue lamp for test request
E Synchronization photocell
- Belt variable speed
- Belt type
Flush grid
Flat top
- Belt height
700 mm
875 mm
920 mm (only with lockable castors)
2
2
2
2
M
Height
extension
125 mm
1
1
1
1
250 mm
1
1
1
1
M Stand type
Adjustable feet ±75 mm
Lockable castors ±50 mm
2
2
2
2
L
Ejection
system
None (belt stop in case of alarm)
Reject pusher cylinder
Reject air jet
H Reject bin
Standard
Large
- Side panels for product containment
- Sensors kit
Ejection confirmation
Ejection confirmation, bin full alarm
Ejection confirmation, bin full alarm,
low pressure alarm
Emergency activation if bin absent
1. Applicable only on belt height 875
2. Available only on some models of standard systems,
without height extensions
3. Available only on some configurations
Standard
Accessory / Option
Not available
