MAINTENANCE
ORIGINAL INSTRUCTIONS 159
5.7.2.2 Integrated systems

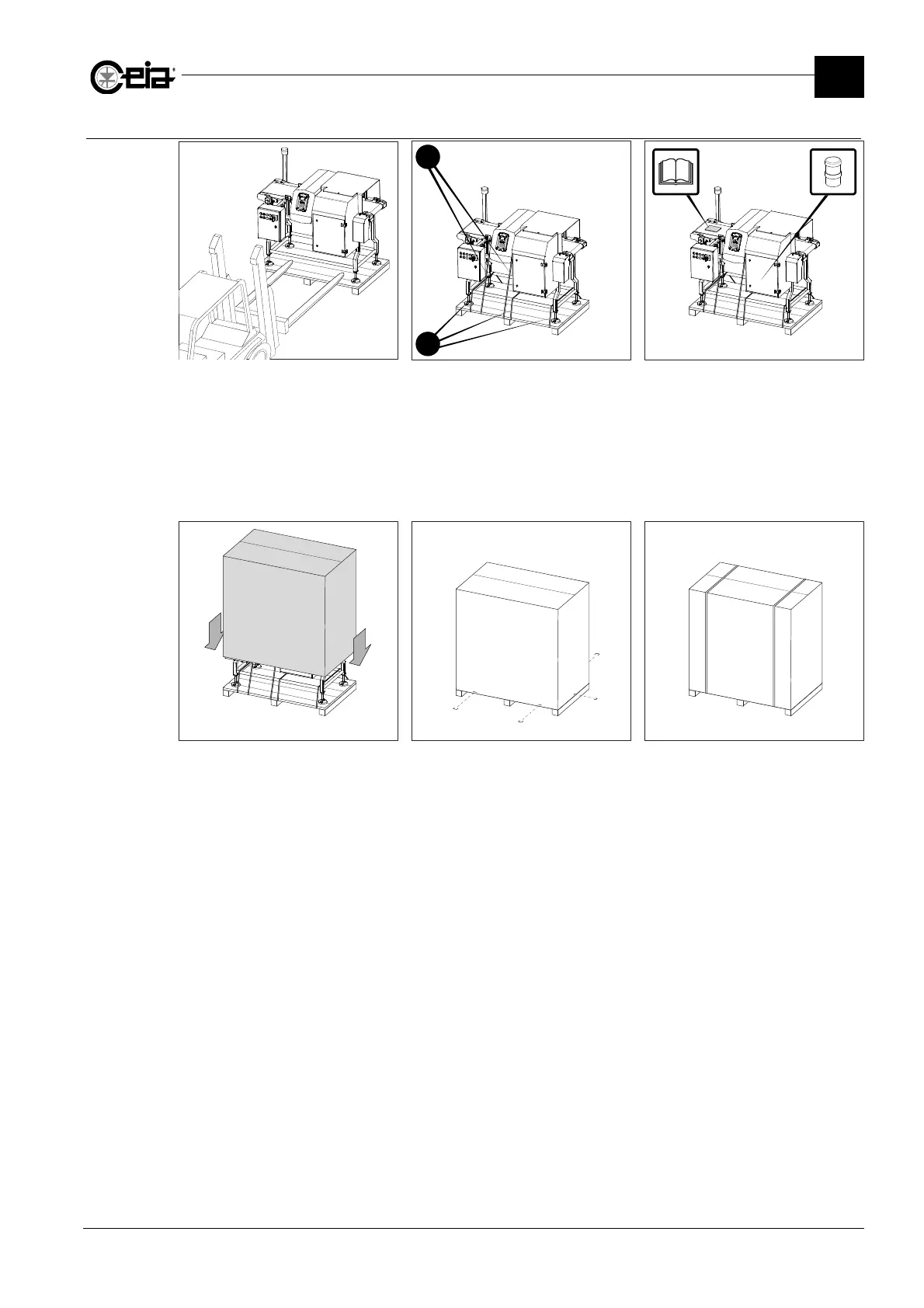

Using a forklift truck with a suitable
load-bearing capacity, move the
conveyor belt unit onto its original
pallet.
Fix the system to the pallet by passing
the plastic straps around the
horizontal beams of the system. Pass
two straps around the top part
alongside the (A), and three straps
around the bottom beams (B). Do not
pass the straps around the
conveyor belt.
Place any accessories inside the
reject bin or on top of the conveyor
belt. Accessories should be
individually packed and fixed so that
they cannot move around or knock
other parts during shipping.
Fit the original cardboard box and fix it
at the bottom to the pallet.
Fix the box to the pallet with steel
staples
Finally, close the packaging by
wrapping two plastic straps around it
as shown in the figure.
A
B
