CDM-570A/570AL Satellite Modem with Optional Packet Processor
Revision 5
Ethernet-based Remote Product Management 7–46 MN-CDM570A
The information that follows is applicable only when QoS Mode = Rule –
Max/Priority Mode

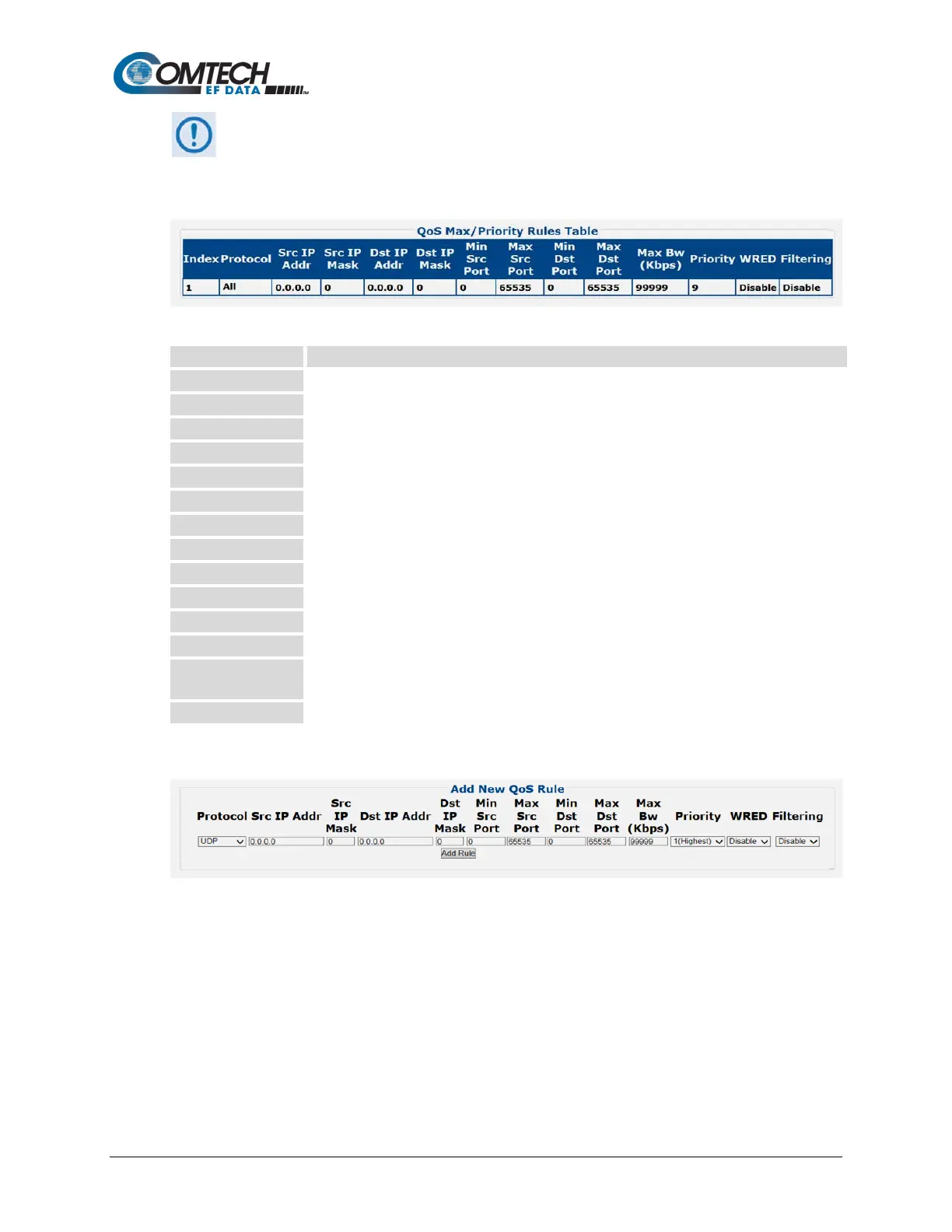

QoS Max/Priority Rules Table
This section displays all existing QoS Max/Priority Rules Table entries. From left to right:
This is the internal table index that is automatically assigned and cannot be edited.
Specifies the protocol for the specific rule.
Identifies the Source IP Address in the form XXX.XXX.XXX.XXX.
Identifies the Source IP Mask in the form YY.
Identifies the Destination IP Address in the form XXX.XXX.XXX.XXX.
Identifies the Destination IP Mask in the form YY.
Specifies the Minimum Source Port.
Specifies the Maximum Source Port.
Specifies the Minimum Destination Port.
Specifies the Maximum Destination Port.
Specifies the Maximum Bandwidth value in kilobits per second.
Specifies the priority established for the specific rule (1-8).
Specifies the WRED (Weighted Random Early Detection) setting for the specific rule as
Disable or Enable.
Specifies the flow filter setting for the specific rule as Disable or Enable.
Add New Max/Priority QoS Rule
This section allows you to directly add a new Max/Priority QoS Rule.
• Protocol / Priority / WRED / Filtering – Use the drop-down list to select the desired
operation.
• Src IP Mask / Dst IP Addr and Mask / Min and Max Src Port / Min and Max Dst Port /
Max BW (Kbps) – Entire the desired value parameter as needed.
Click [Add Rule] to save. When you add a new rule to the QoS Max/Priority Rules Table, the
modem automatically assigns an internal table index number to the table.
