SLM-5650B Satellite Modem

Revision 2

Base Modem HTTP/HTTPS Interface 7–10 MN-SLM-5650B

Admin | Upgrade

Use this page to REFLASH the SLM-5650B and change the active firmware image.

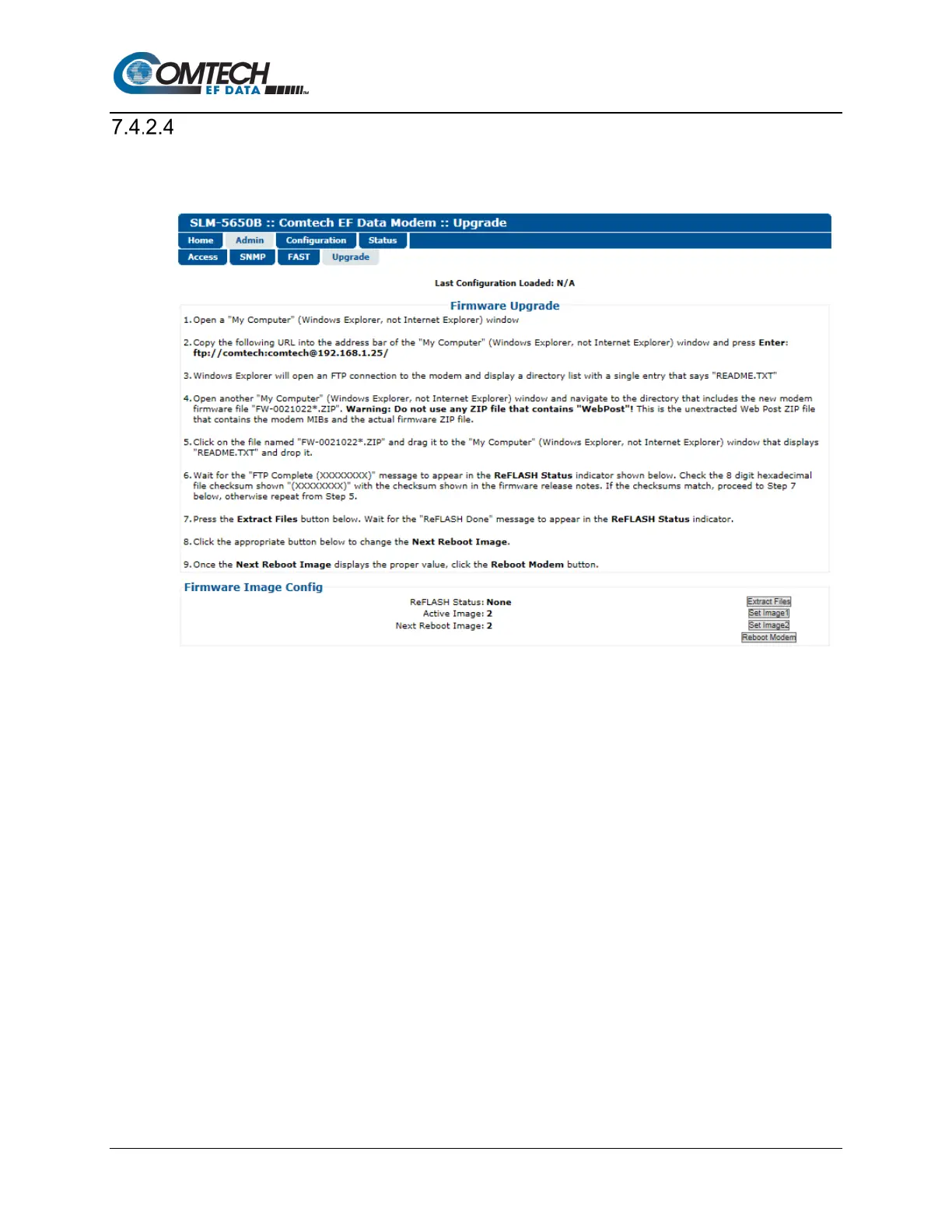

Figure 7-5. Admin | Upgrade Page
