3.2 IF Connectors
3.2.1 J2, J4 L-Band IF Interface Connectors

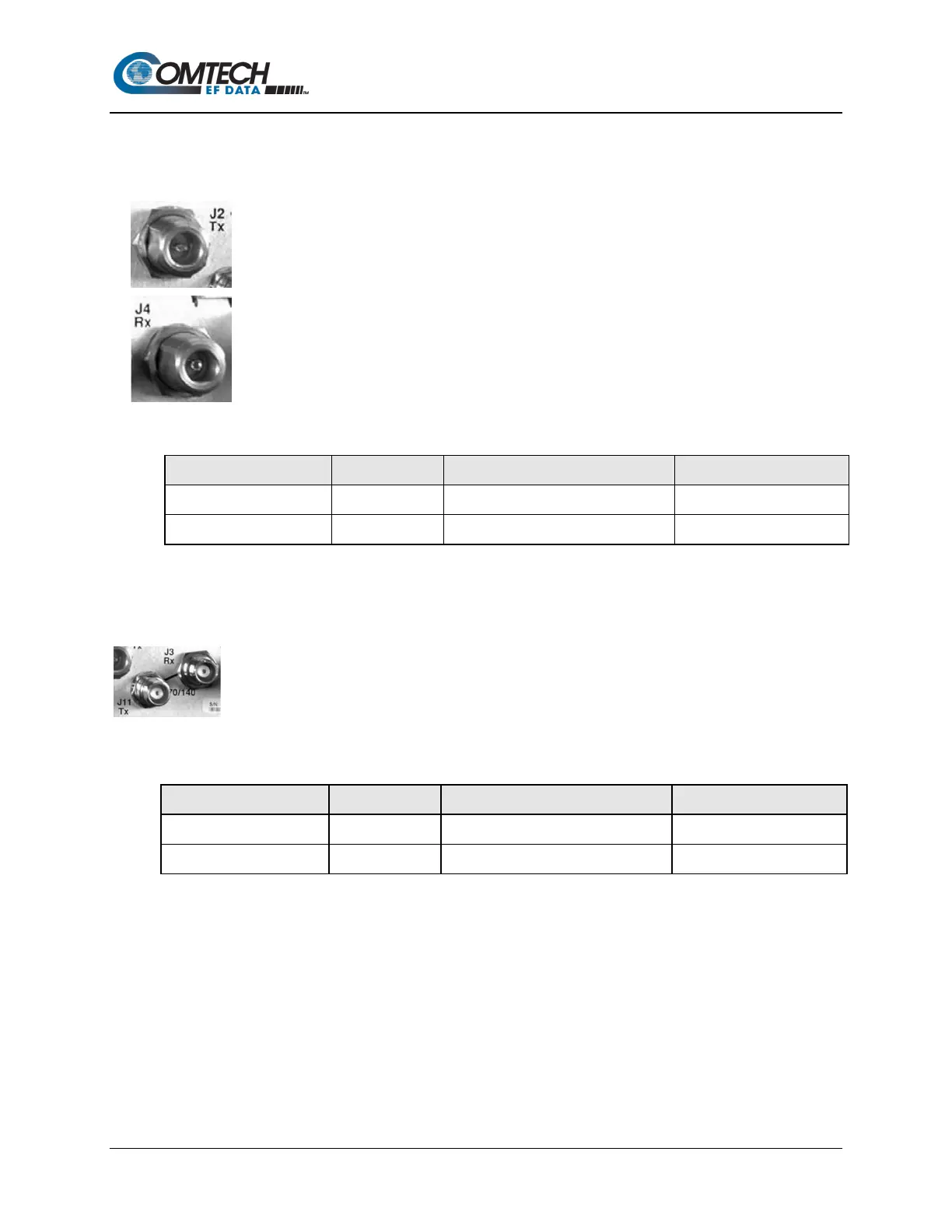

The L-Band IF Interfaces use standard 50 Ω Type ‘N’ female connectors:
Table 3-2. J2, J4 L-Band IF Interface Connectors
3.2.2 J11, J3 70/140 MHz IF Interface Connectors
The 70/140 IF Interfaces use standard 50 Ω TNC female connectors:
Table 3-3. J11, J3 70/140 MHz IF Interface Connectors
TNC Connector
Ref Des
Description
Direction
Tx
J11
52-88, 104-176 MHz Transmit
Output
Rx J3 52-88, 104-176 MHz Receive Input
Type ‘N’ Connector
Ref Des
Description
Direction
Tx J2 950-2000 MHz Transmit Output
Rx J4 950-2000 MHz Receive Input
