9.2.5.1 Satellite Modem Configuration | Modulator Menu (M)

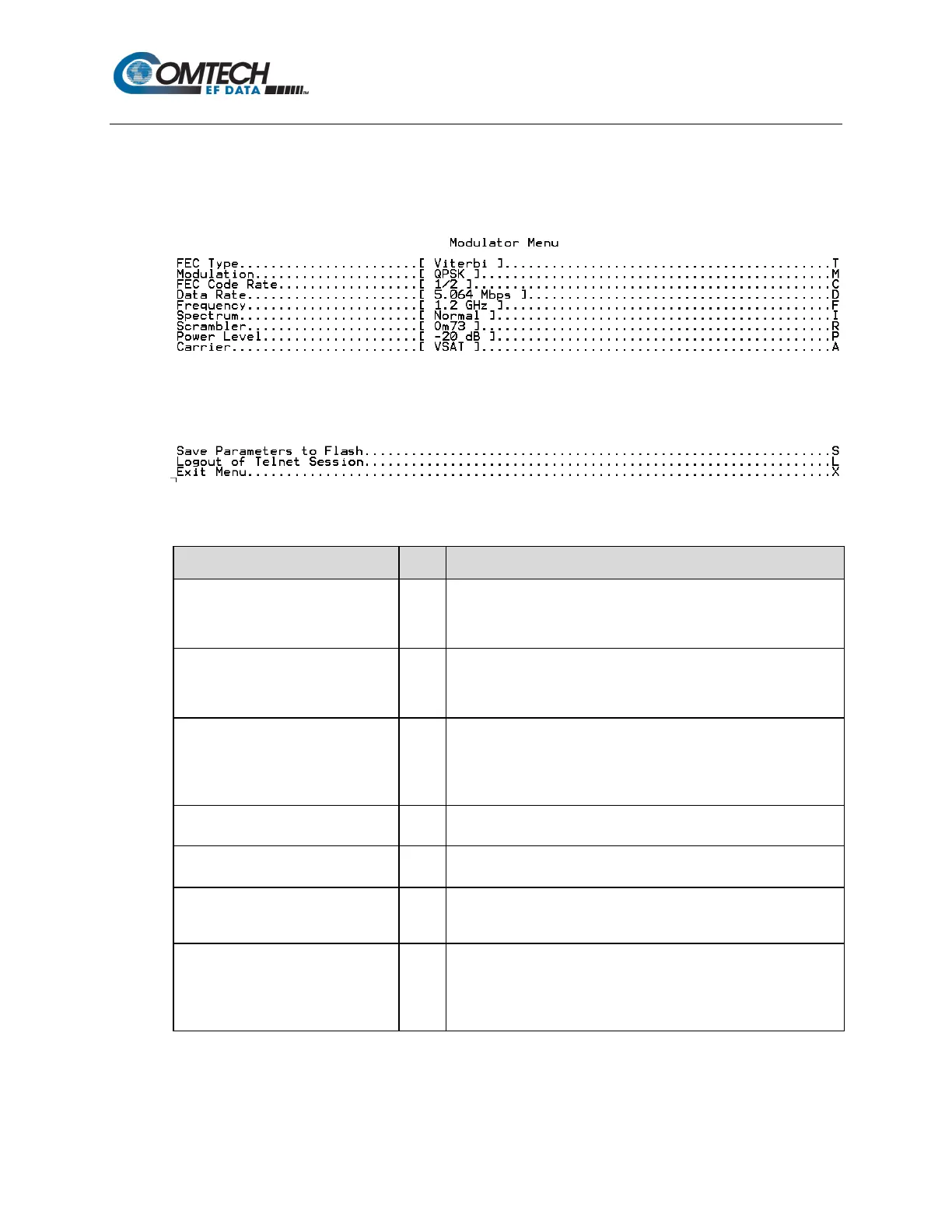

When the Modulator Menu page is opened from the Satellite Modem Configuration (Modem Menu)
page, the following page appears:
The page contains the following options or fields:
Menu Options/Fields Entry Description
FEC Type T
Prompts the user to select:
0 – None
1 – Viterbi
2 – Turbo
3 – Sequential
Modulation M
Prompts the user to select:
0 – BPSK
1 – QPSK
2 – OQPSK
3 – 8-PSK
4 – 16-QAM
FEC Code Rate C
Prompts the user to select:
0 – 1/1
1 – 1/2
2 – 3/4
3 – 7/8
4 – 2/3
5 – 5/6
6 – 21/44
7 – 5/16
8 – 17/18
Data Rate D Allows user to edit Data Rate using   arrow keys.
Frequency F Allows user to edit Frequency using   arrow keys.
Spectrum I
Prompts user to select:
0 – Normal
1 – Inverted
Scrambler R
Prompts the user to select:
0 – Off
1 – OM73
2 – V.35
3 – Modified V.35
4 – SYNC
5 – IBS
6 – TURBO
