SLM-5650B Satellite Modem

Revision 2

NP Interface Telnet/SSH CLI Operation 9–9 MN-SLM-5650B

9.2.4.4 Administration Menu | FAST Features (F)

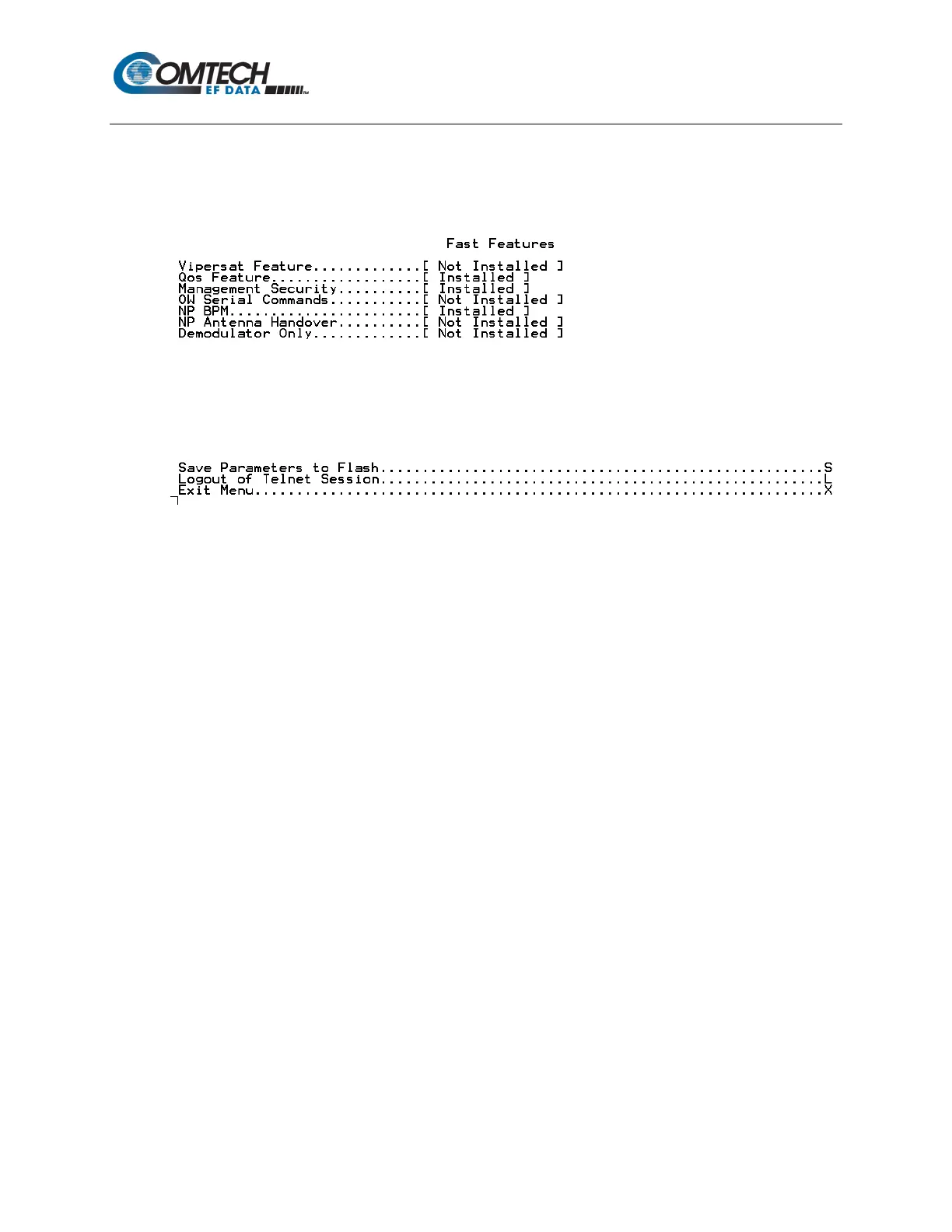

When the read-only FAST Features page is opened from the Administration Menu, it displays the

status (i.e., Installed or Not Installed) of all available FAST options:

Press ‘X’ to return to the Administration Menu page.
