SLM-5650B Satellite Modem

Revision 2

Base Modem HTTP/HTTPS Interface 7–16 MN-SLM-5650B

Configuration | AHO

This feature is a future option and not accessible at this time.

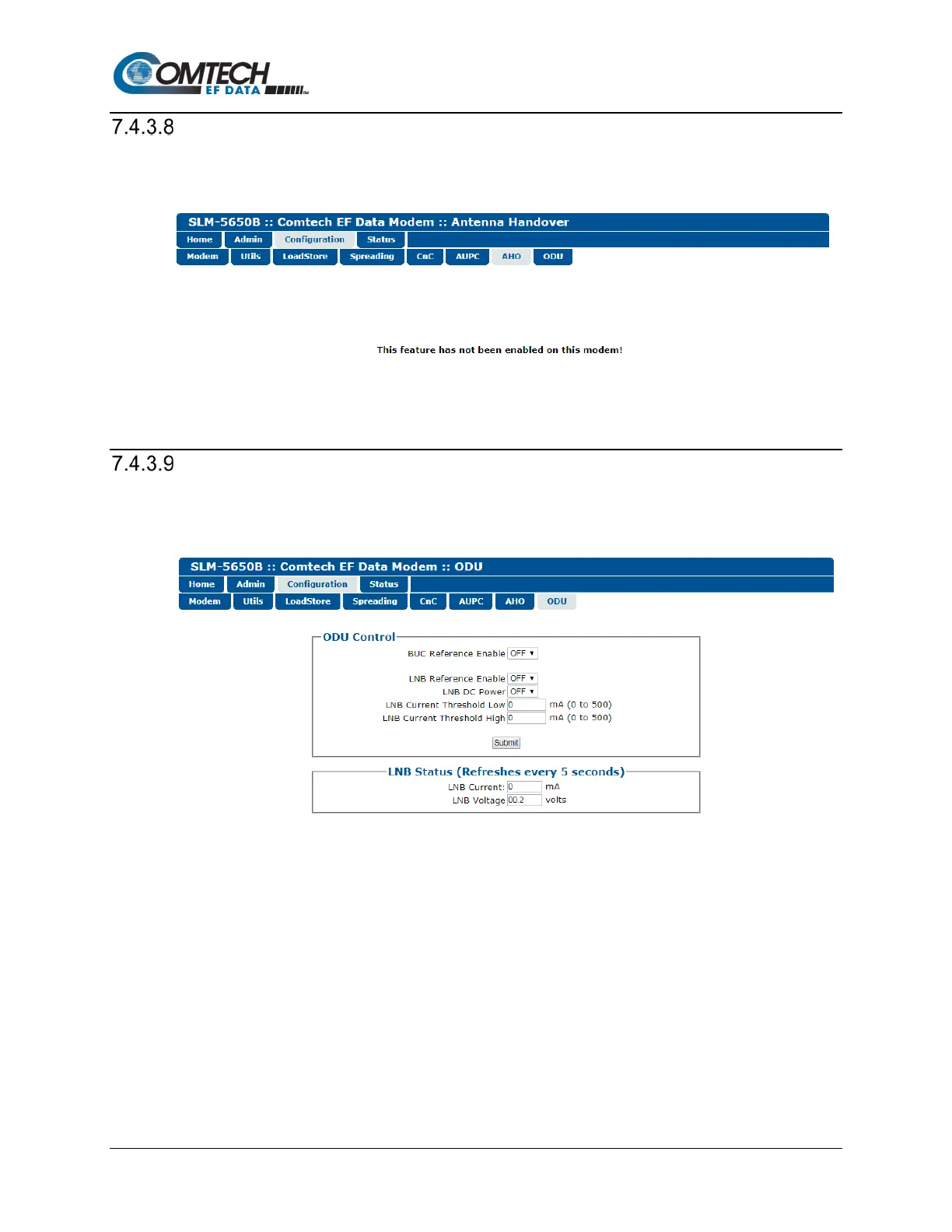

Figure 7-12. Configuration | AHO Page

Configuration | ODU

Use this page to enable the LNB power, LNB reference, and BUC reference.

Figure 7-13. Configuration | ODU Page
