Network Processor (NP) Interface 8–53 MN-SLM-5650B
8.6.5.7.4 Stats | WAN

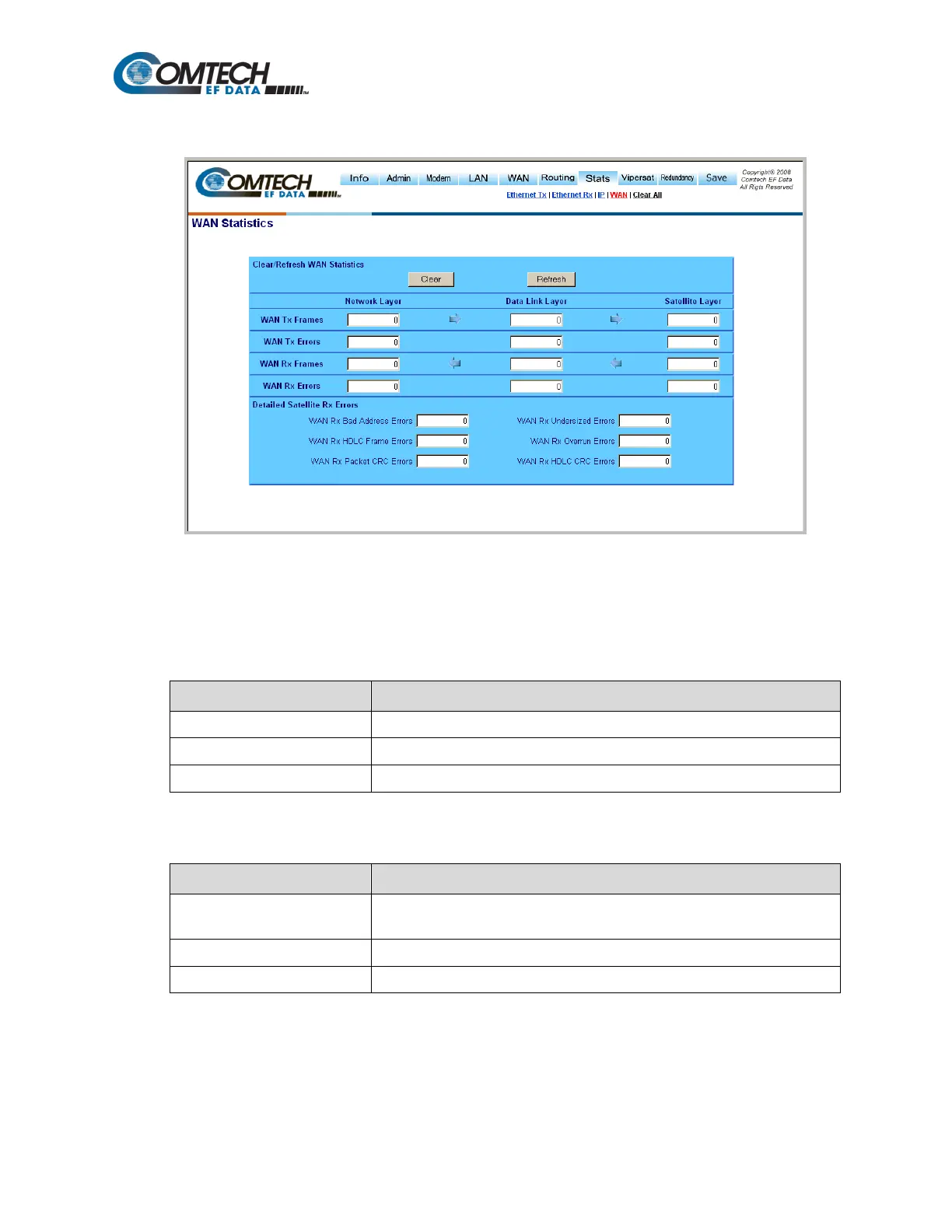

Figure 8-36. Stats | WAN Statistics page
Clear/Refresh WAN Statistics
Click [Clear] to delete all statistics.
Click [Refresh] to update the page with the most recent statistics.
WAN Tx Frames
Column Description
Network Layer
Total packets sent to data link layer.
Data Link Layer Total frames sent to satellite layer.
Satellite Layer Total frames sent over satellite.
WAN Tx Errors
Column Description
Network Layer
Counter increments if the packets cannot traverse from WAN_DLL_OUT
component to ETH_TX-3 component to due to internal resource scarcity.
Data Link Layer Total data link layer Tx errors.
Satellite Layer Total satellite layer Tx errors.
