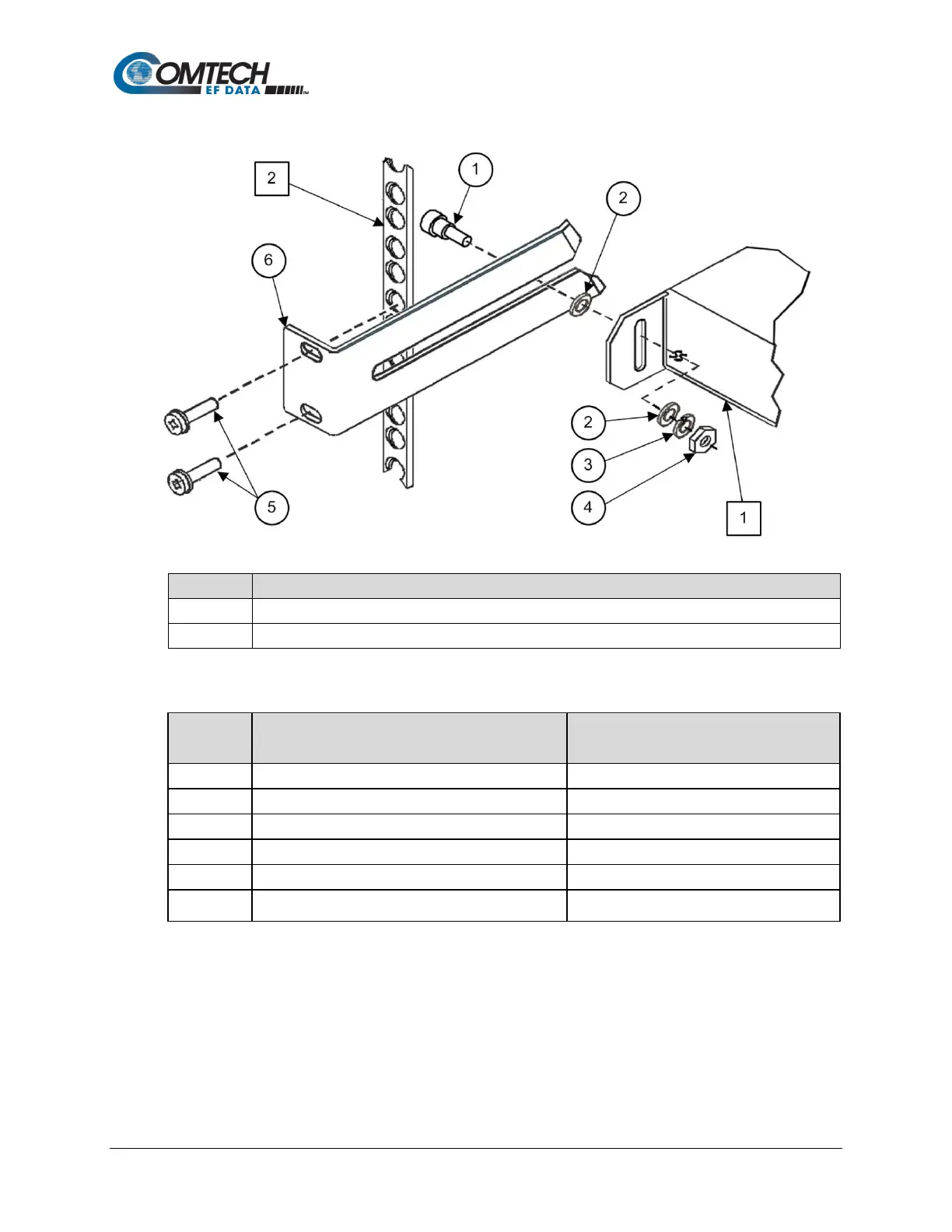

Comtech EF Data SLM-5650B - Figure 2-3. Optional Rear Support Bracket Installation

To Next Page

To Previous Page

SLM-5650B Satellite Modem

Revision 2

Installation 2–5 MN-SLM-5650B

Detail

Description

Back of modem

Rack Enclosure Rear Rail (typical)

Rear Support Bracket Kit, KT/6228-2

Item Part Number Description

HW/10-32SHLDR

Shoulder Screw, #10

HW/10-32FLT

Flat Washer, #10

3 HW/10-32SPLIT Lock Washer, #10

4 HW/10-32HEXNUT Hex Nut, #10

HW/10-32x1/2RK

Bolt, #10, Rear Support Bracket

6 FP/6138-2 Bracket, Rear Support

Figure 2-3. Optional Rear Support Bracket Installation
