2.2.2 Optional Bearingless Rack Slide Set
The optional FP/SL0006 Bearingless Rack Slide Set may be installed into the equipment rack
cabinet and onto the sides of the SLM-5650B as shown in Figure 2-4 and per the following
procedure:
Step
Task
1
Use the provided hardware to install one slide onto each side of the SLM-5650B chassis.
2
Use the provided hardware to install the slide rail components into each interior side of the
equipment rack cabinet.
3
Install the unit into the front of the equipment rack. Ensure that the slides properly engage the
cabinet-mounted slide rails.
4
Continue to slide the modem into the equipment rack to its final operating position. Then, use four
user-provided screws to secure the modem to the equipment rack’s right and left threaded front
rails (through the front panel slots).
CEFD Part Number
Description
FP/SL0006
Bearingless Rack Slide Set – 26”

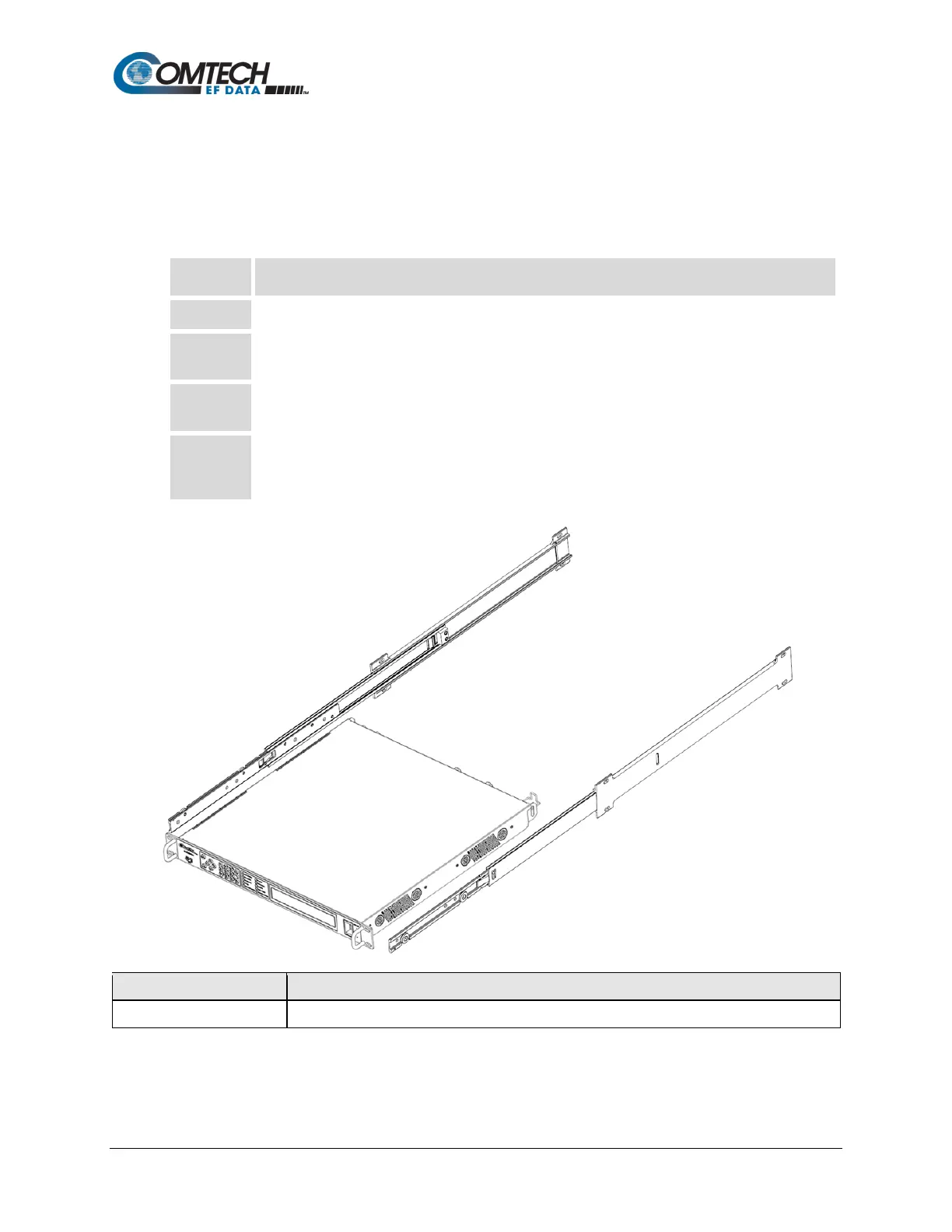

Figure 2-4. Optional Bearingless Rack Slide Set Installation
