SLM-5650B Satellite Modem

Revision 2

NP Interface Telnet/SSH CLI Operation 9–7 MN-SLM-5650B

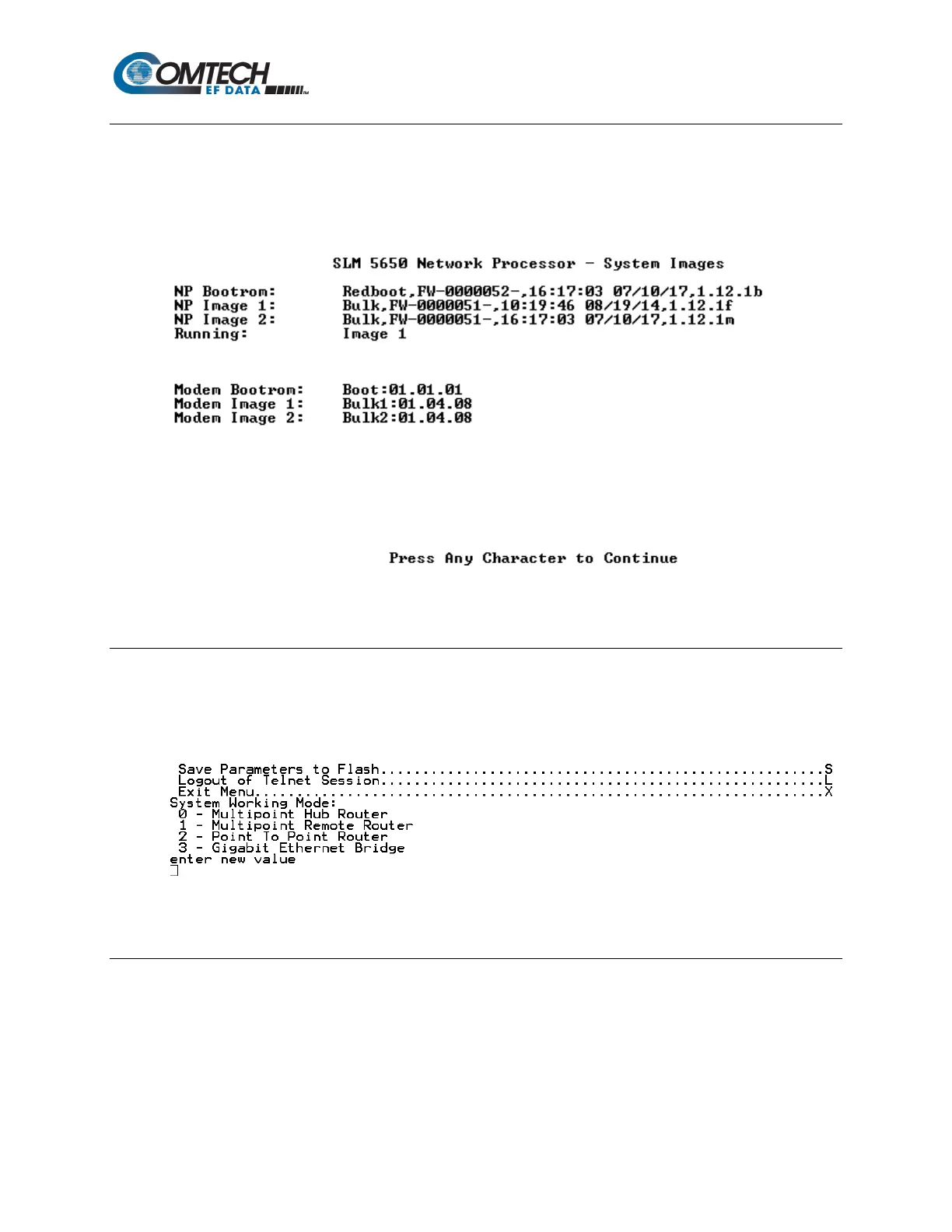

9.2.4.1 Administration Menu | Information Page (I)

The Information Page displays information for NP and Modem Bootrom running status, load

images, and current configuration status.

Press ‘X’ to return to the Administration Menu page.

9.2.4.2 Administration Menu | System Working Mode (W)

The System Working Mode displays at the bottom of the screen when selected.

Press ‘X’ to return to the Administration Menu page.

9.2.4.3 Administration Menu | BPM Mode (B)

The BPM Mode displays at the bottom of the screen when selected.
