Comtech EF Data SLM-5650B - Rear Panel; Figure 1-5. SLM-5650 B Rear Panel

SLM-5650B Satellite Modem
Revision 2
Introduction 1–6 MN-SLM-5650B
1.3.2.2 Rear Panel
Chapter 3. REAR
PANEL CONNECTORS AND PINOUTS

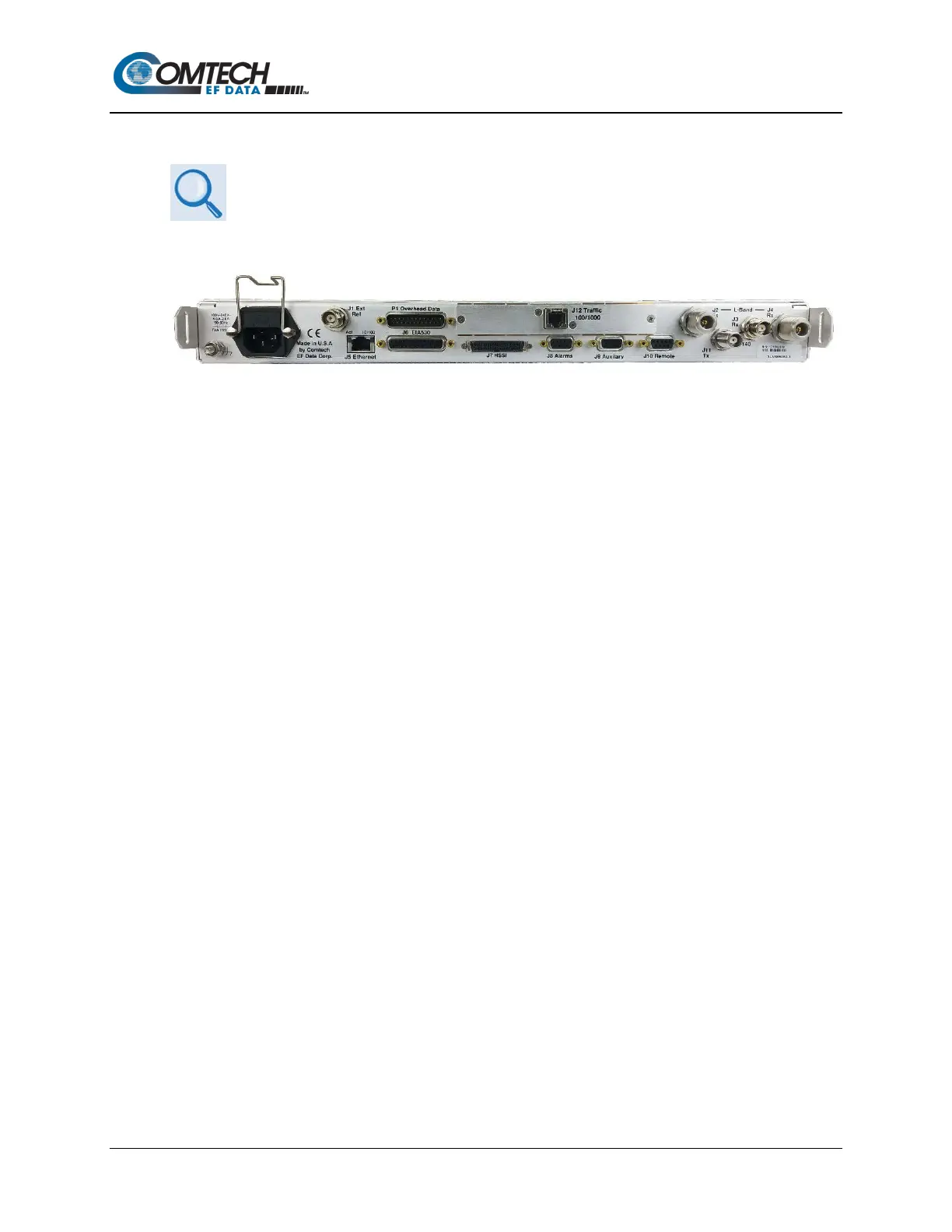

Figure 1-5. SLM-5650B Rear Panel
External cables are attached to connectors on the SLM-5650B’s rear panel (Figure 1-5). Each
connector is described in detail in Chapter 3.
