SLM-5650B Satellite Modem

Revision 2

Installation 2–3 MN-SLM-5650B

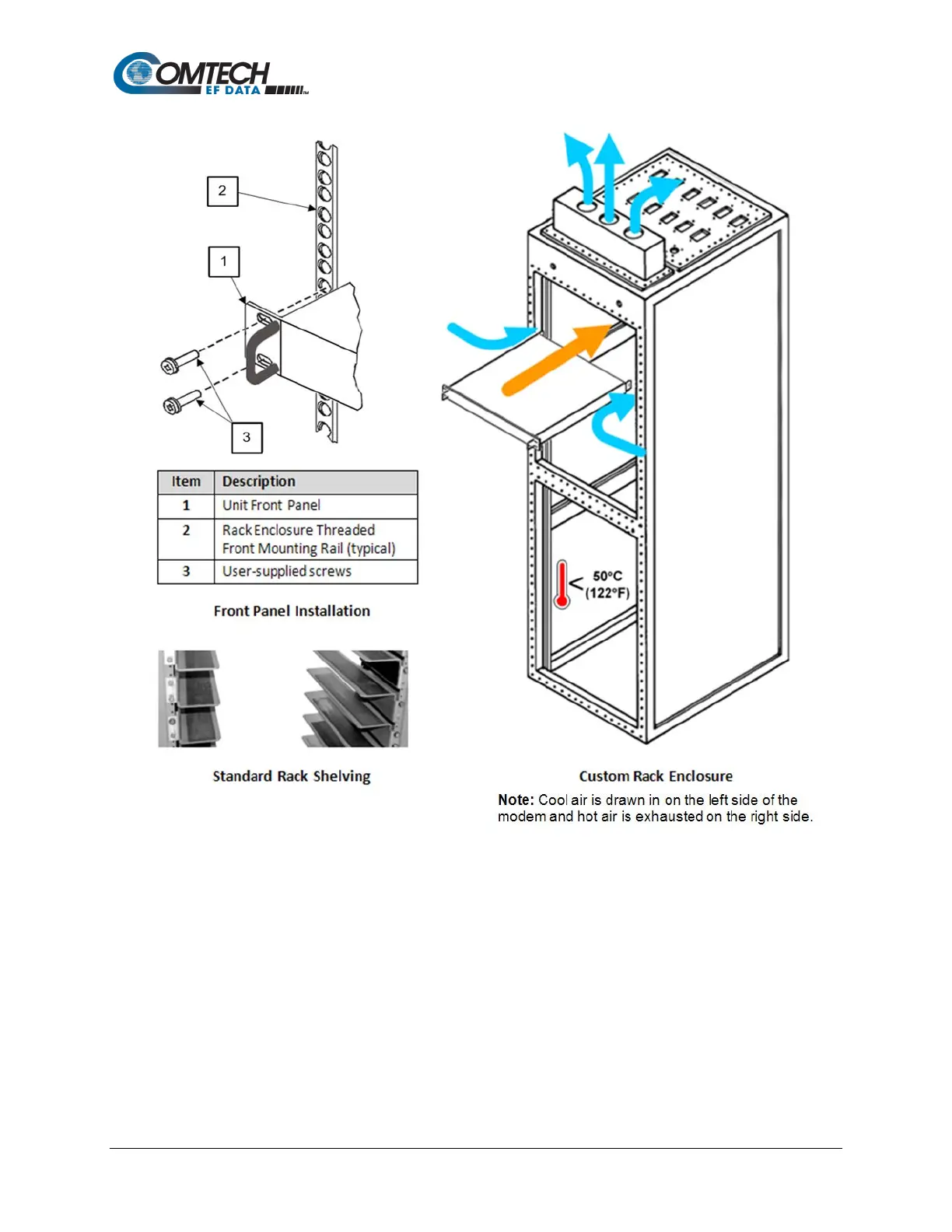

Figure 2-2. SLM-5650B Rack Enclosure Installation Example

Install the SLM-5650B in its assigned position in the rack enclosure. Use, as required:

• A standard rack-mounted shelf

• User-supplied screws to secure the front panel to the rack enclosure threaded front rails

• Comtech EF Data’s optional KT/6228-2 Rear Support Bracket Kit

• Comtech EF Data’s optional FP/SL006 Bearingless Rack Slide Set
