Comtech EF Data SLM-5650B - Configuration | Utils; Figure 7-7. Configuration

To Next Page

To Previous Page

SLM-5650B Satellite Modem

Revision 2

Base Modem HTTP/HTTPS Interface 7–12 MN-SLM-5650B

Configuration | Utils

Use this page to configure modem operating parameters, including Date and Time; Test Modes;

Miscellaneous Tx and Rx Parameters; and BERT.

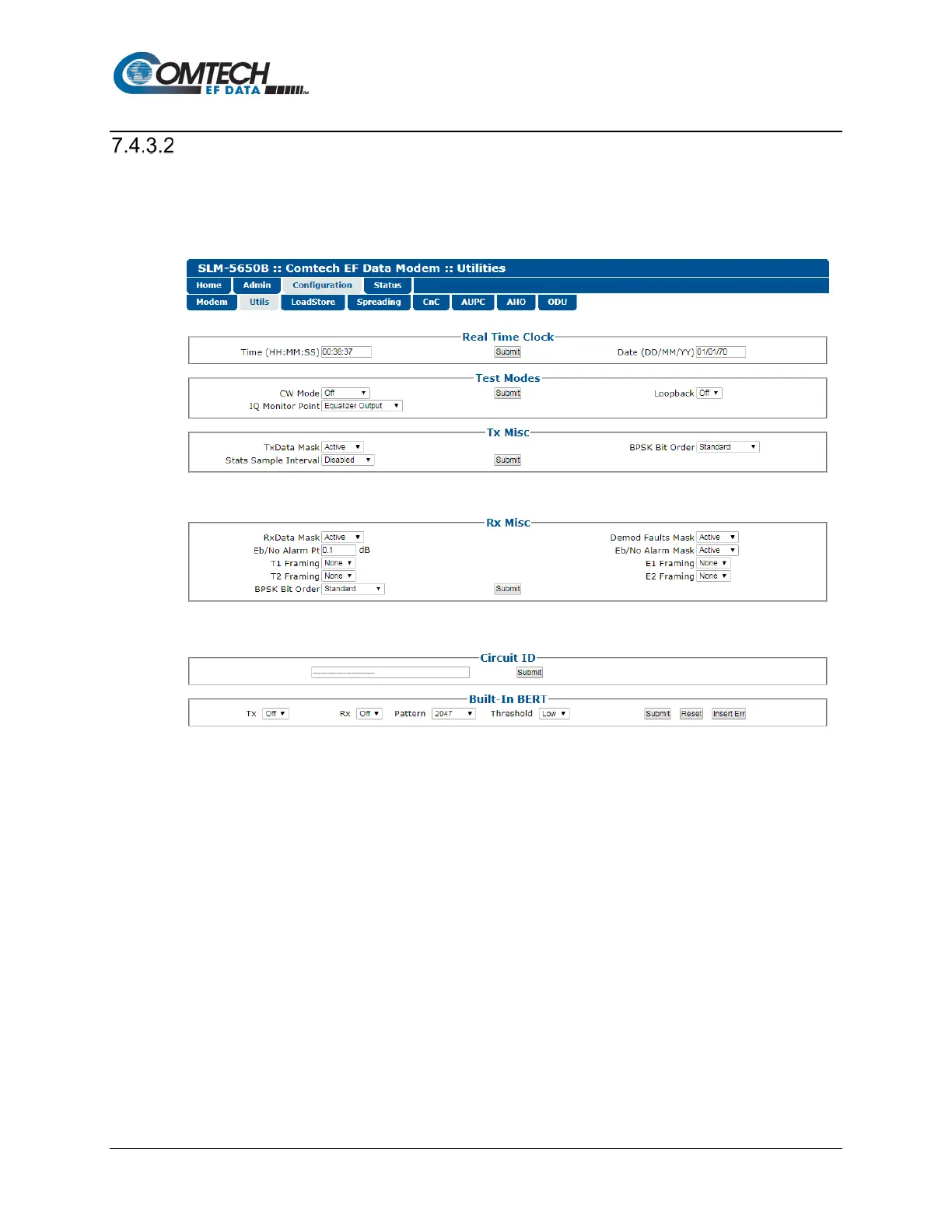

Figure 7-7. Configuration | Utils Page

Click [Submit] as needed in each section to save any changes.
