Datalogic Magellan 8500Xt User Manual

7-32 Magellan
TM
8500Xt Scanner

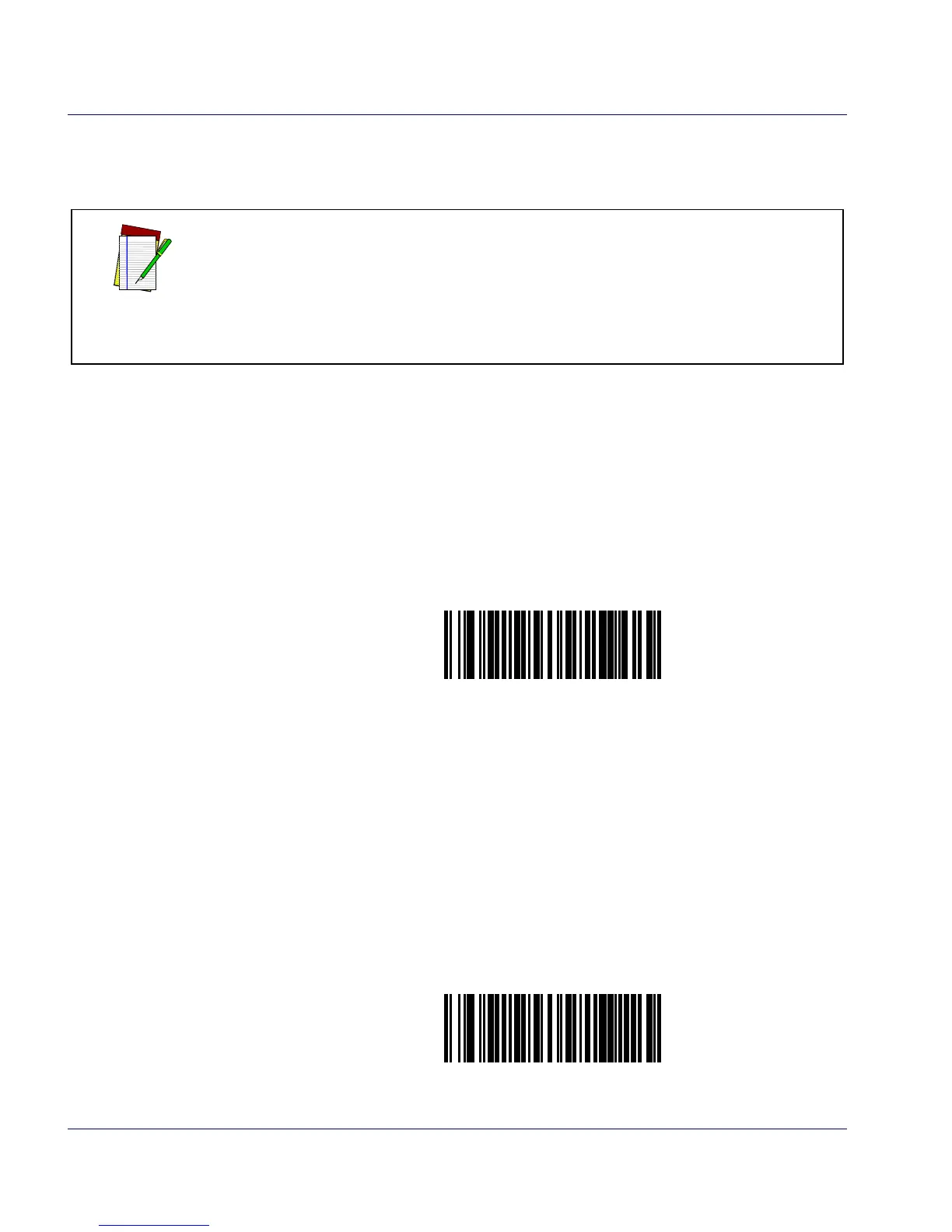

Scale Enable
Use this feature to enable or disable scale operation.
NOTE
Recalibration/recertification may be require
d when adding scale functional-
ity. Consult your local Weights and Measures authority.

If this feature is enabled the scanner will
expect that it is to function as a
scanner-scale, and will indicate an error if it is not a scale-equipped unit.
See Error Codes in Section 4 for more information.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan your selection from the two bar
codes below. You’ll need to
cover any unused barcodes on this and the facing page to ensure
that the scanner reads only the barcode you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.
SCALE = DISABLE
SCALE = ENABLE

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
