Datalogic Magellan 8500Xt User Manual

7-114 Magellan
TM
8500Xt Scanner
RS-232 Retry on ACK NAK Timeout
This option specifies the action scanner performs on expiration of the RS-
232 ACK NAK Timeout Value.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan either the enable or disable barcode below. You’ll need to
co
ver any unused barcodes on this and the facing page to ensure
that the scanner reads only the barcode you intend to scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.

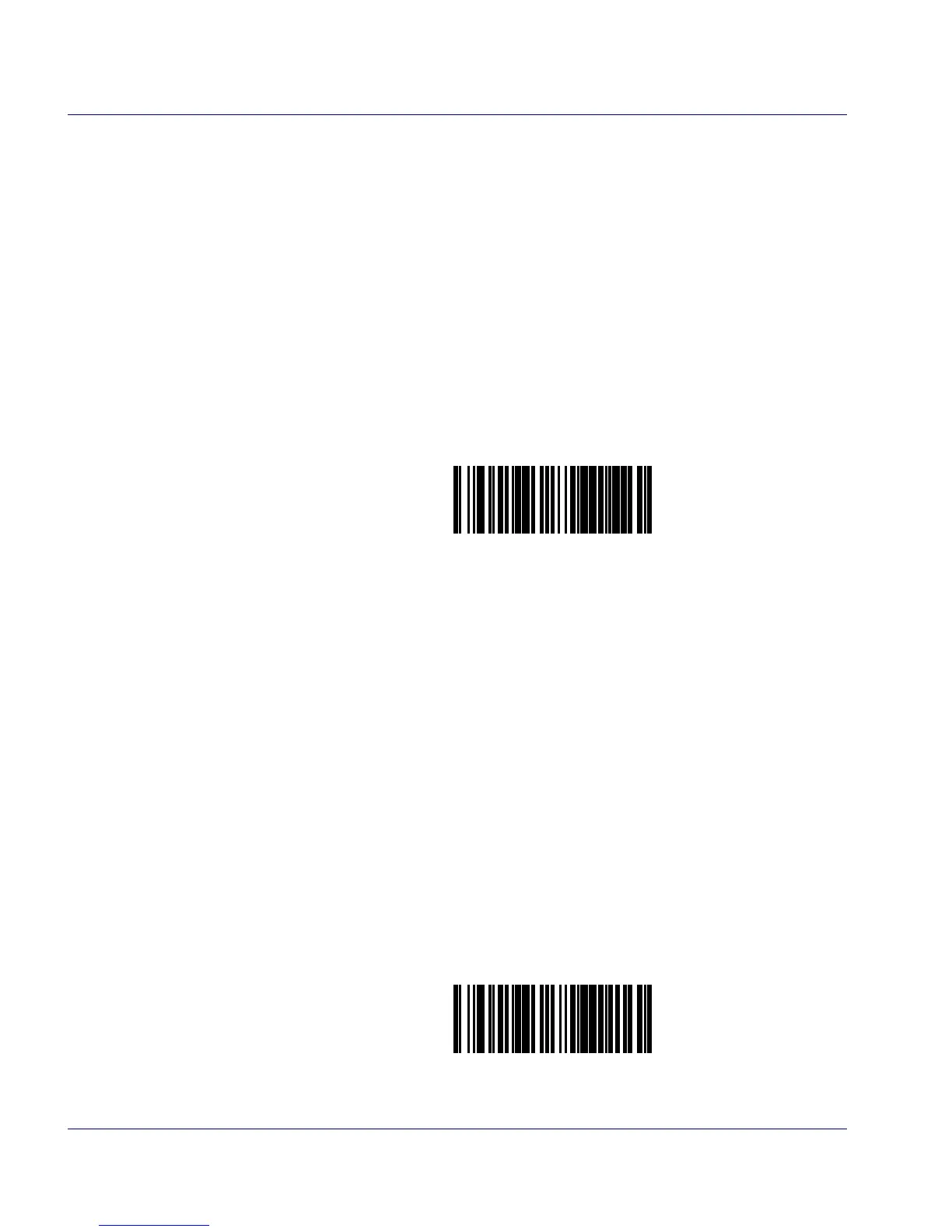

RS-232 RETRY ON ACK NAK TIMEOUT = DISABLE
RS-232 RETRY ON ACK NAK TIMEOUT = ENABLE

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
