Datalogic Magellan 8500Xt User Manual

Product Reference Guide 7-105
RS-232 TTL
Specifies whether RS-232 interface provides TTL levels on the output
pins TxD and RTS.
Choices are:
• Normal RS-232 levels
• TTL levels
To set this feature:
1. Scan the SWITCH barcode.
2. Scan the barcode below which repr
esents the desired setting for
this feature. You’ll need to cover any unused barcodes on this and
the facing page to ensure that the scanner reads only the barcode
you intend to scan.
3. Complete the programming sequence by scan
ning the SWITCH
barcode.

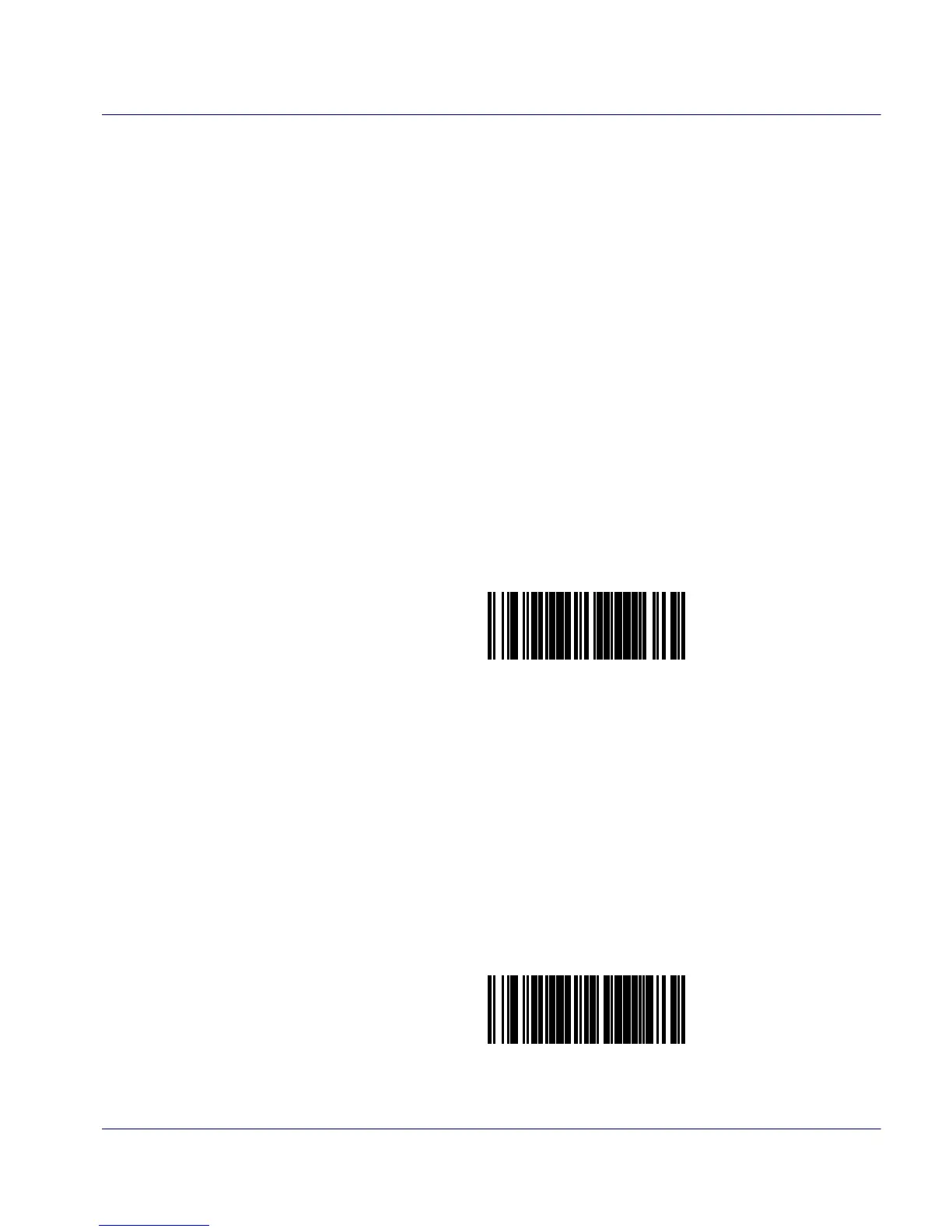

RS-232 LEVELS = NORMAL RS-232
RS-232 LEVELS = TTL

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
