8500Xt Scanner
RS-232 Hardware Control
Enables/disables use of the RS-232 CTS signal for flow control and/or
scan control.
Options are:
• Disable — The scanner transmits to the host regardless of any
activi
ty on the CTS line.
• Enable CTS Flow Control — The CTS signal controls transmis-
sion of data to the host.
• Enable CTS Scan Control — The CTS line must be active for
scann
er to read and transmit data. While the CTS line is inactive,
scanner remains in a host- disabled state; following a successful
label transmission, the CTS signal must transition to inactive and
then to active to enable scanning for the next label.
To set this feature:
1. Scan the SWITCH barcode.
2. Scan barcode below or from the following page for the desired
setting. Y
ou’ll need to cover any unused barcodes on facing pages
to ensure that the scanner reads only the barcode you intend to
scan.
3. Complete the programming seque
nce by scanning the SWITCH
barcode.

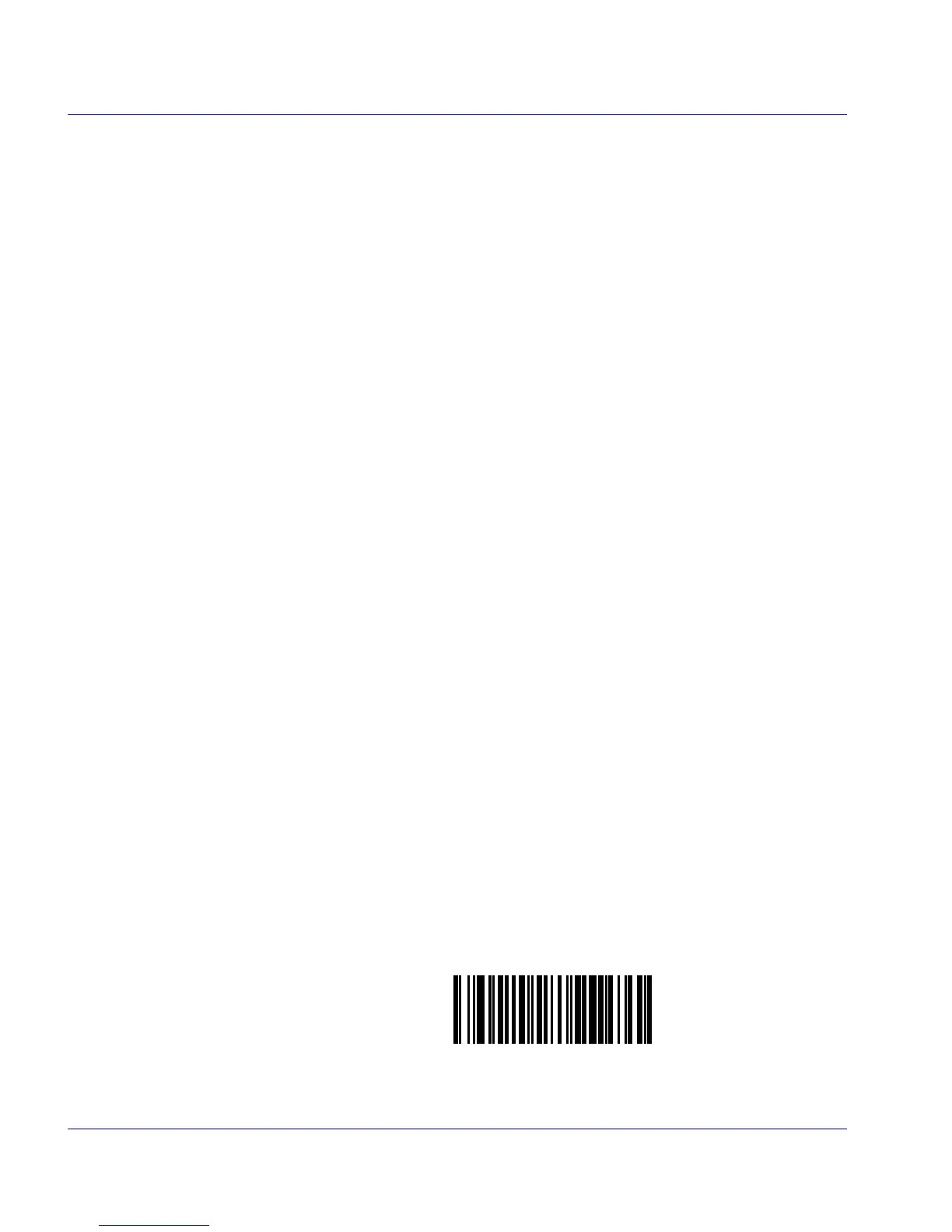

RS-232 HARDWARE CONTROL = DISABLE
To Next Page
