Viewing Angle
The optimum display angle is directly facing the viewer. Tilt and rotatioin
adjustments can be made for the Remote Display models is shown in
Figure 2-15. To ensure that displays are easily readable for customers/
cashiers of average height, display heads should
be between 48” to 60”
(122 to 152 cm) from the floor.
NOTE
Check with local Weights and Measures authorities regar
ding proper posi-
tioning of scale displays used in retail trade.

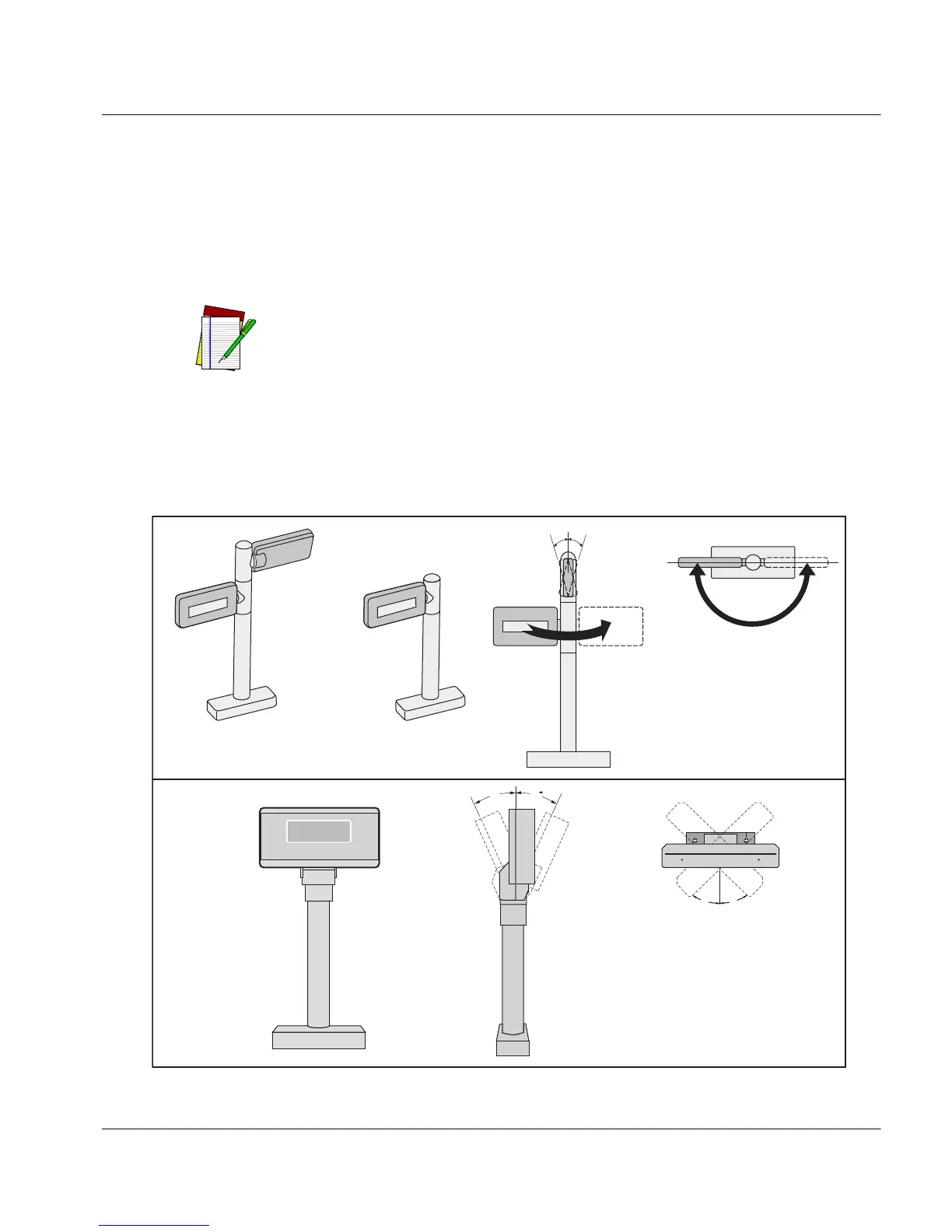

Figure 2-15. Modular/Adjustable Remote Scale Display
180°
Rotation
15°
Upward or
Downward Tilt
180°
Rotation
15° 15°
Dual Display
Heads
8300RD
Remote Display
Single Display
Head
a
b
CAPACITY / CAPACITE - 30 X .01 lb / 15 x .005 kg
0.00 lb
40°
40°
25°
25°
960RD
Remote Display
